Home >> Ford Truck >> 2010 >> Explorer AWD V6-4.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 5R55S >> Diagnostic Routines >> Engagement Concerns: 201A - 209 >> 205, Delayed Or Soft Reverse Only

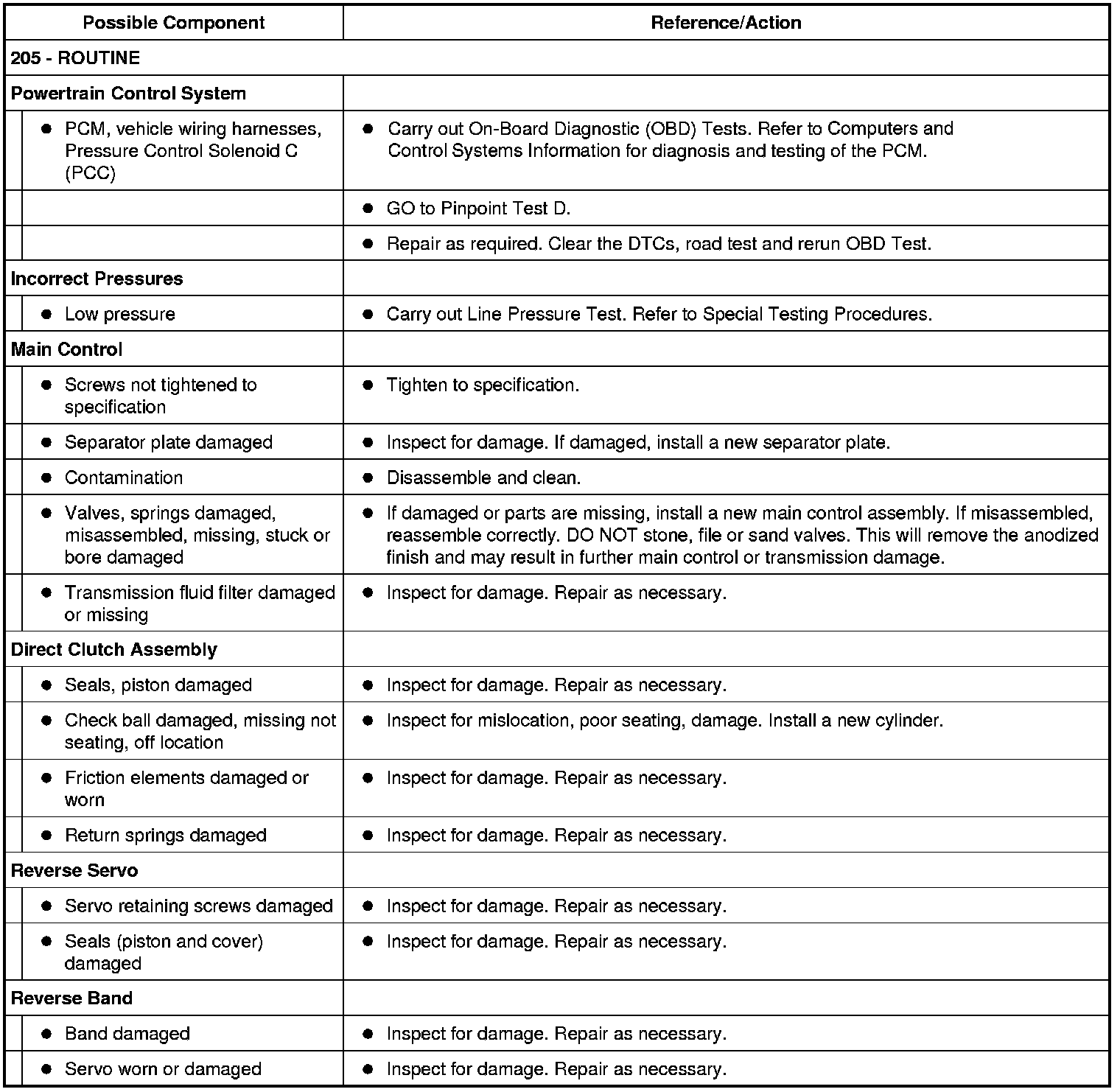

205, Delayed Or Soft Reverse Only




Diagnostic Routines

Engagement Concern: Delayed or Soft Reverse Only
