Electrical Connectors




External Controls

Electrical Connectors

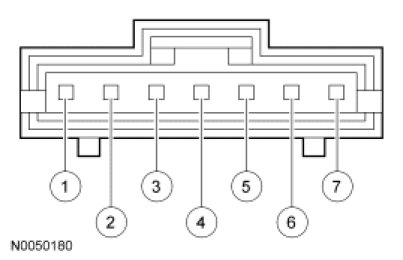

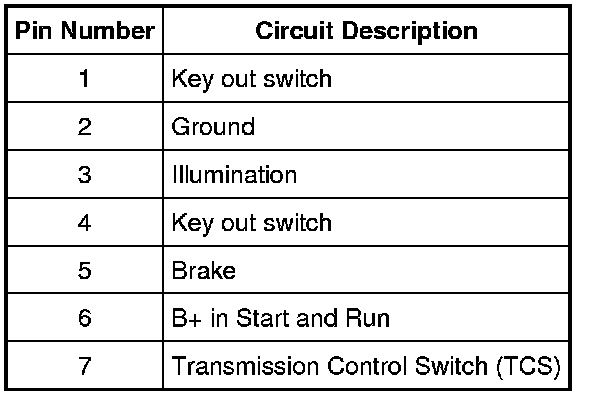

Brake Shift Interlock Actuator (BSIA)

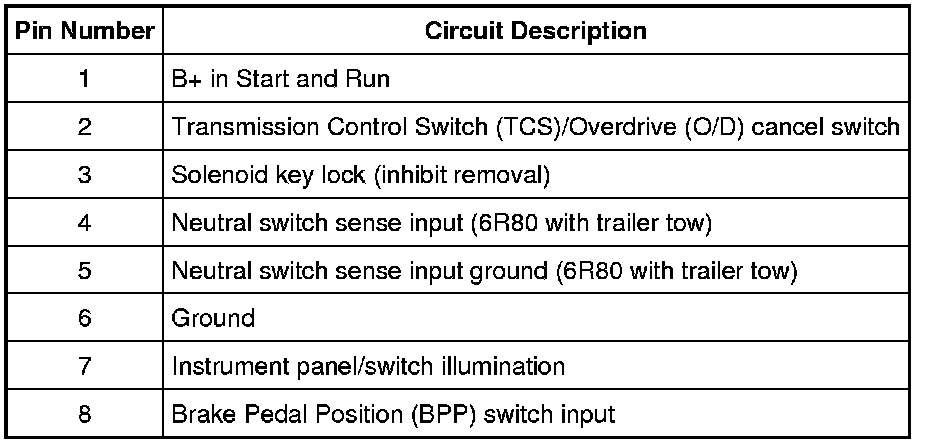

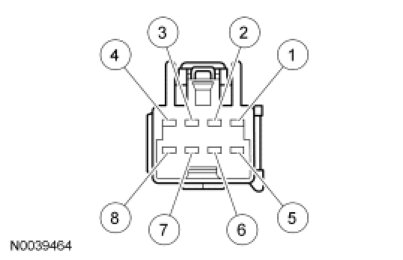

Brake Shift Interlock C2008

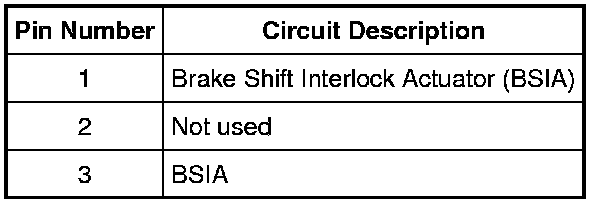

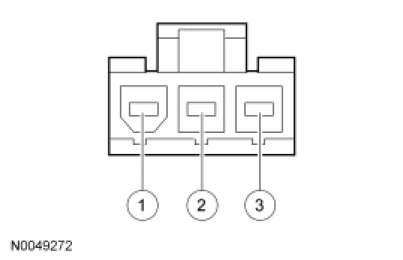

Brake Shift Interlock Actuator (BSIA) Module Connector

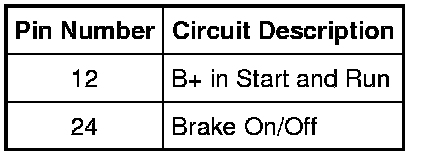

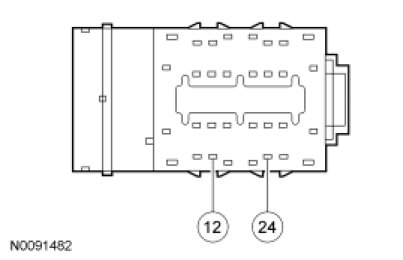

Smart Junction Box (SJB) C2280C

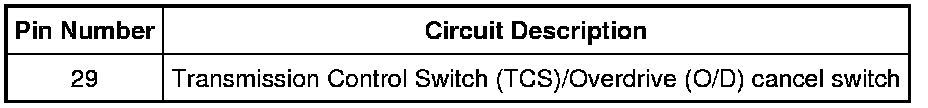

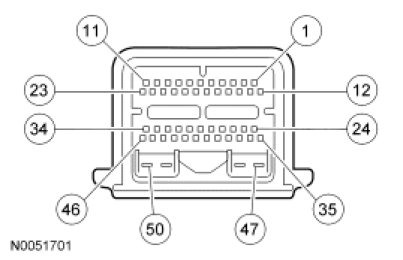

PCM C175B
