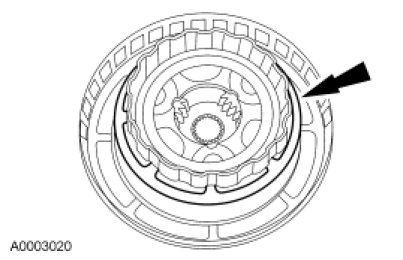

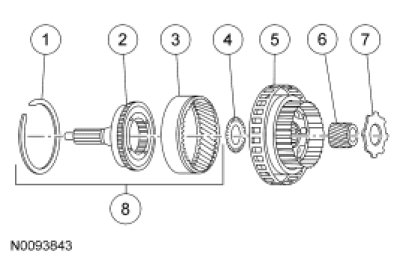

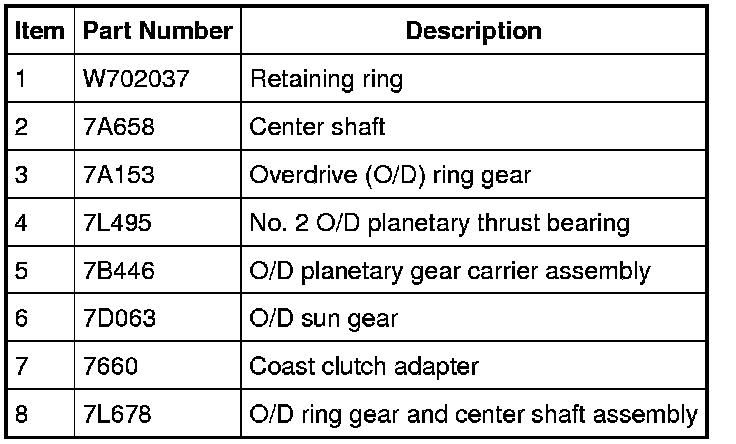

Overdrive Planetary and One-Way Clutch Assembly

Overdrive Planetary and One-Way Clutch Assembly









Disassembly

1. NOTE: The Overdrive (O/D) One-Way Clutch (OWC) is serviced with the center shaft assembly.

Remove the center shaft from the O/D ring gear.

1. Remove the O/D center shaft retaining ring.

2. While rotating counterclockwise remove the center shaft from the ring gear.





2. NOTICE: Do not remove the Overdrive (O/D) One-Way Clutch (OWC). Damage to the clutch may occur if it is removed.

Clean and inspect the O/D OWC and center shaft.

- Inspect for cracks in the roller cage and wear on the roller clutch and the press fit of the OWC to the center shaft.

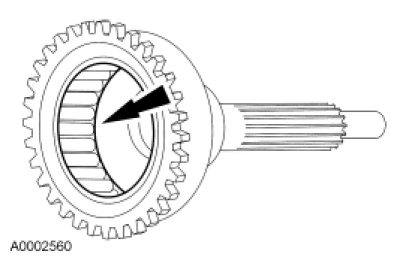

3. Inspect the OWC.
- Temporarily insert the O/D planetary gear carrier assembly into the OWC rollers for verification of the OWC.

- The planetary gear must rotate counterclockwise and hold when rotated clockwise.

- Remove the planetary gear carrier assembly.





Assembly

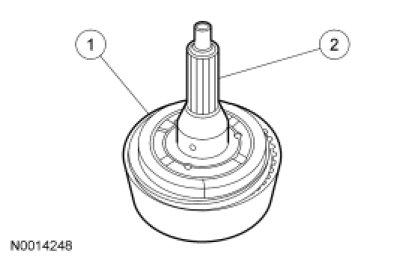

1. Install the center shaft and OWC.

1. Install the center shaft and OWC.

2. Install the center shaft retaining ring.
