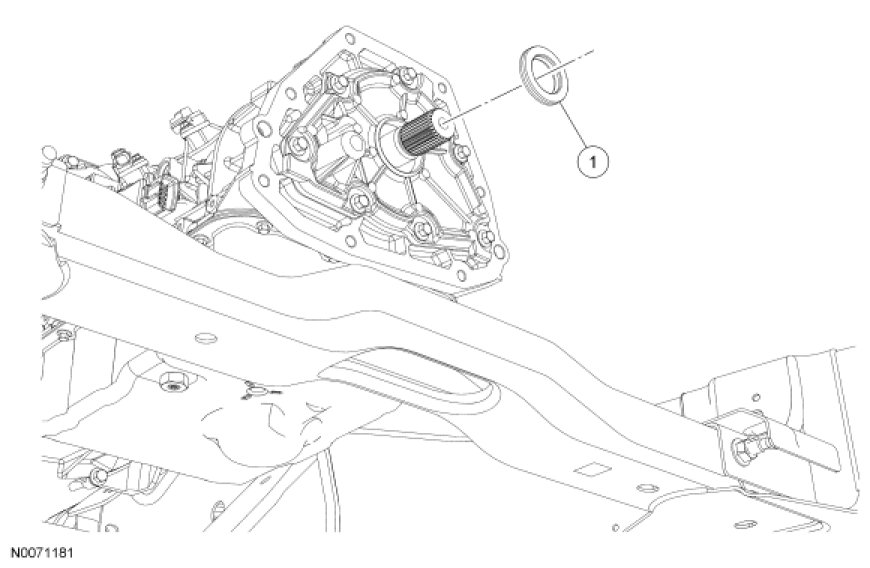

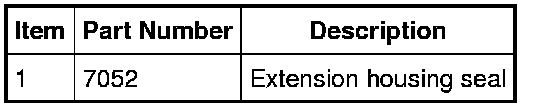

Extension Housing Seal

Extension Housing Seal - Four Wheel Drive (4WD)













Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Remove the transfer case assembly. For additional information, refer to Transfer Case.

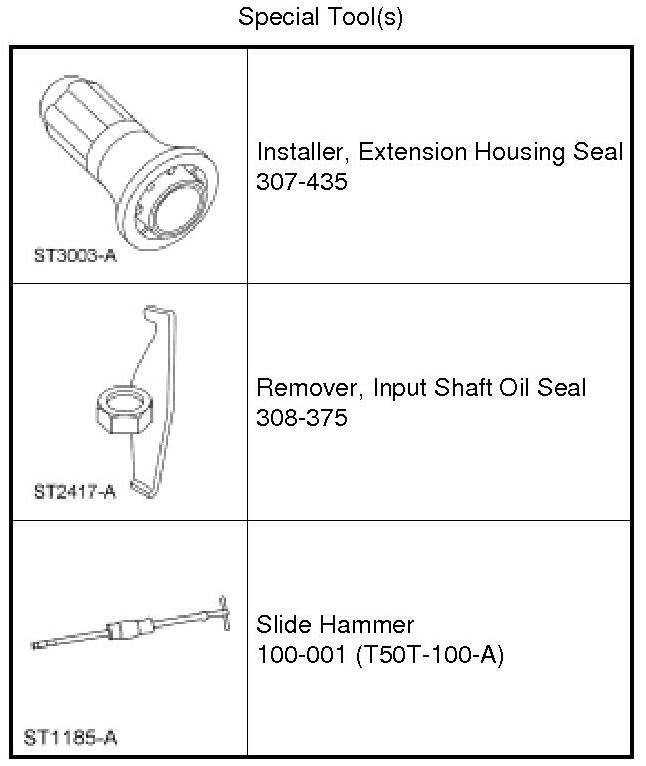

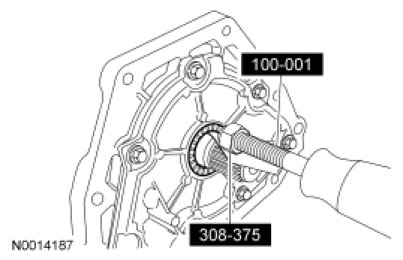

3. Using the Input Shaft Oil Seal Remover and Slide Hammer, remove the extension housing seal.





Installation

1. NOTE: Make sure the extension housing seal is correctly installed onto the Extension Housing Seal Installer and the garter spring is in the correct position.

Using the Extension Housing Seal Installer, install the extension housing seal.





2. Install the transfer case assembly. For additional information, refer to Transfer Case.

3. Carry out the transmission fluid level check. For additional information, refer to Transmission Fluid Level Check Transmission Fluid Level Check.
