Extension Housing Gasket

Extension Housing Gasket - Four Wheel Drive (4WD)









Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Support the transmission with a suitable jack.

3. Remove the transfer case. For additional information, refer to Transfer Case.

4. NOTE: The park pawl, park pawl return spring and park pawl shaft may fall out during removal of the extension housing.

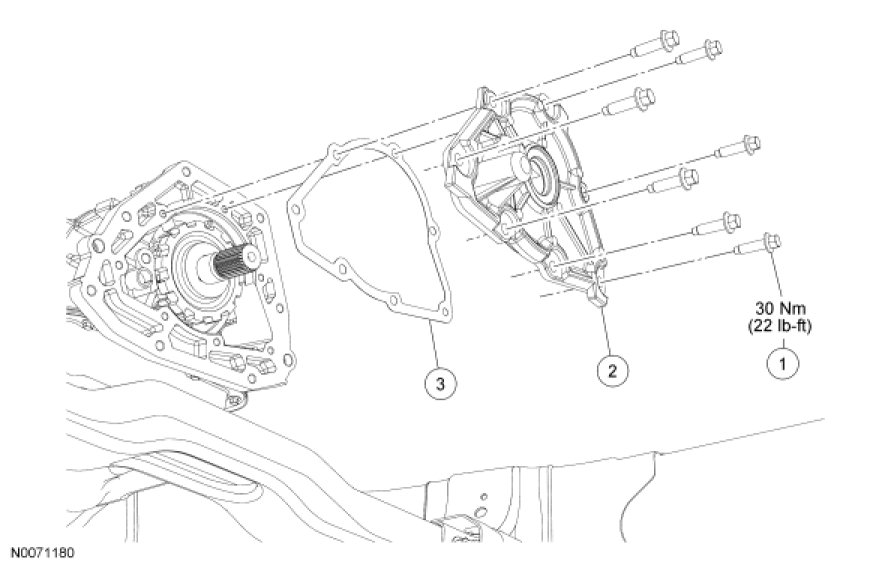

Remove the extension housing.





5. Remove and discard the extension housing gasket.





Installation

1. Clean the extension housing and install new extension housing gasket. Make sure that the park pawl is installed correctly.





2. NOTE: Verify the park lever actuating rod is correctly seated into the case park rod guide cup.

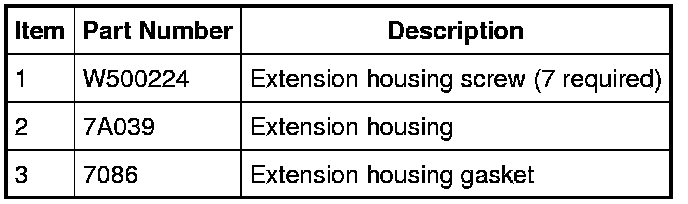

Install the extension housing and the extension housing screws.

- Tighten to 30 Nm (22 lb-ft).





3. Install the transfer case. For additional information, refer to Transfer Case.

4. Remove the transmission support jack.

5. Carry out the transmission fluid level check. For additional information, refer to Transmission Fluid Level Check Transmission Fluid Level Check.
