Power Steering Fluid Reservoir: Service and Repair

Power Steering Fluid Reservoir

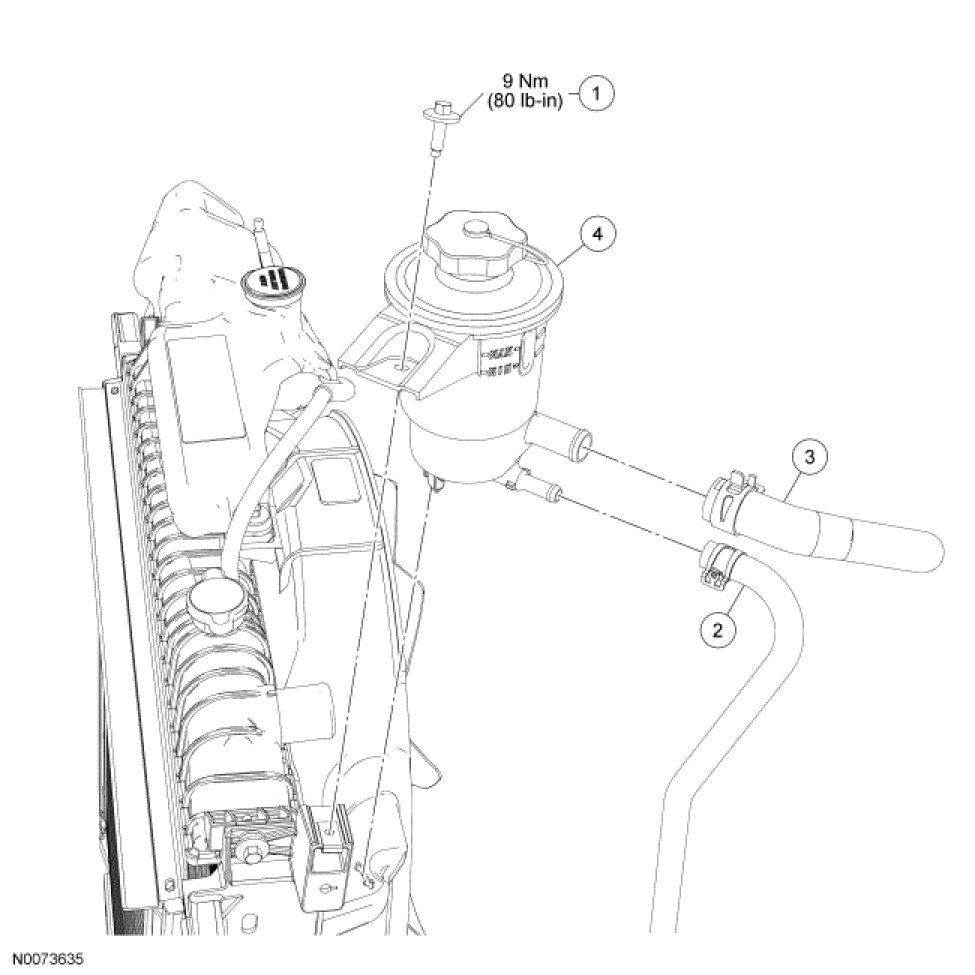

NOTE: 4.0L engine shown, 4.6L engine similar.











Removal and Installation

NOTICE: While repairing the power steering system, care should be taken to prevent the entry of foreign material or failure of the power steering components may result.

1. Using a suitable suction device, remove the power steering fluid from the reservoir.

2. Remove the power steering fluid reservoir bolt.
- To install, tighten to 9 Nm (80 lb-in).

3. Release the power steering pump supply hose clamp and disconnect the hose.

4. Release the power steering fluid cooler hose clamp and disconnect the hose.

5. Remove the power steering fluid reservoir.

6. To install, reverse the removal procedure.

7. Fill the power steering system. For additional information, refer to Steering.
