Pinpoint Test B: One-Touch Integrated Start (OTIS) Does Not Operate Correctly
Starting System
Pinpoint Tests
Pinpoint Test B: One-Touch Integrated Start (OTIS) Does Not Operate Correctly
Refer to Wiring Diagram Set 20, Starting System for schematic and connector information. Diagrams By Number
Normal Operation
When the ignition switch is turned in the START position and released, the PCM receives a starter motor request signal through circuit CDC35 (BU/WH). With the vehicle in PARK or NEUTRAL, power flows from the PCM to the starter motor relay through circuit CDC38 (WH/VT). A ground is supplied through circuit CDC12 (YE) from the PCM causing the starter motor relay coil to energize and the relay contacts close. This allows power from starter motor relay through circuit CDC25 (BN/GN) to the starter solenoid. The solenoid is grounded at the starter motor. Energizing the starter solenoid will engage the starter drive into the ring gear and close the solenoid contacts, allowing power directly from the battery through circuit SDC02 (RD) to the starter motor to start the engine. The customer is no longer in the loop after the initial crank request, and the customer may release the key to the RUN position. The PCM will disengage the starter motor based on engine running (rpm threshold), a set crank time has been exceeded or the ignition switch has been turned to the OFF position.
This pinpoint test is intended to diagnose the following:
- Circuitry
- PCM
PINPOINT TEST B: ONE-TOUCH INTEGRATED START (OTIS) DOES NOT OPERATE CORRECTLY
-------------------------------------------------
B1 CHECK THE STATUS OF OTIS (OTS_STAT) PID
- Enter the following diagnostic mode on the scan tool: PCM DataLogger/PID.
- Monitor the PCM PID OTS_STAT with the ignition switch in the RUN position.
- Is the OTIS PID enabled?
Yes
GO to B2.
No
ENABLE OTIS TEST the system for normal operation. If OTIS will not enable, INSTALL a new PCM. REFER to Computers and Control Systems. TEST the system for normal operation.
-------------------------------------------------
B2 CHECK THE KEY POSITION FOR START INDICATED (START_KEY) PID
- Enter the following diagnostic mode on the scan tool: PCM DataLogger/PID.
- Monitor the PCM PID START_KEY with the ignition switch in the START position.
- Does the PID change from OFF to ON?
Yes
GO to B4.
No
GO to B3.
-------------------------------------------------
B3 CHECK CIRCUIT CDC38 (WH/VT)
- Disconnect: Start Diode.
- Disconnect: PCM C175B.

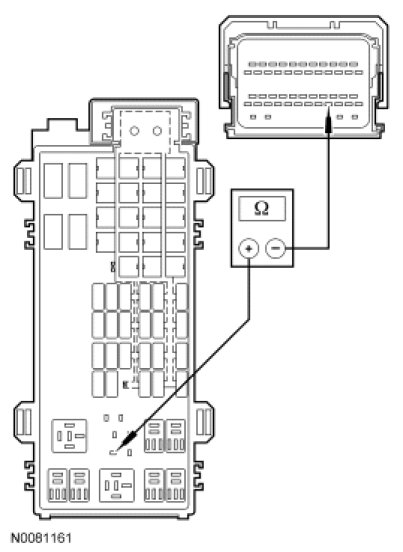

- Measure the resistance between the start diode, circuit CDC38 (WH/VT), harness side and PCM C175B-38, circuit CDC38 (WH/VT), harness side.
- Is the resistance less than 5 ohms?
Yes
INSTALL a new PCM. REFER to Computers and Control Systems. TEST the system for normal operation.
No
REPAIR circuit CDC38 (WH/VT). TEST the system for normal operation.
-------------------------------------------------
B4 CHECK THE STARTER MOTOR RELAY ENABLE (STRT_RLY) PID
- Enter the following diagnostic mode on the scan tool: PCM DataLogger/PID.
- Monitor the PCM PID STRT_RLY with the ignition switch in the START position.
- Does the PID change from DISABLED to ENABLED?
Yes
GO to B6.
No
GO to B5.
-------------------------------------------------
B5 CHECK THE CIRCUIT CDC38 (WH/VT) BETWEEN THE STARTER RELAY AND THE PCM
- Ignition OFF.
- Disconnect: PCM C175B.
- Disconnect: Smart Junction Box (SJB) C2280B.

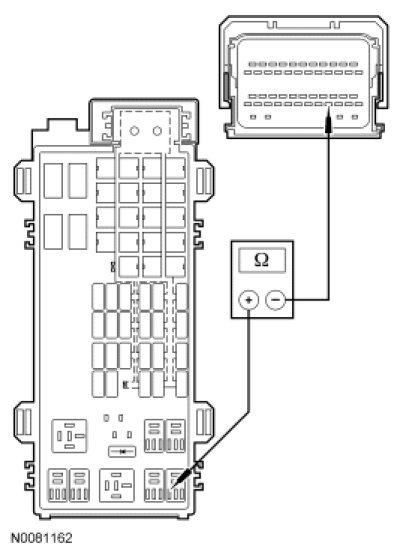

- Measure the resistance between the starter motor relay pin 1, circuit CDC38 (WH/VT), harness side and PCM C175b-38, circuit CDC38 (WH/VT), harness side.
- Is the resistance less than 5 ohms?
Yes
INSTALL a new PCM. REFER to Computers and Control Systems. TEST the system for normal operation.
No
REPAIR circuit CDC38 (WH/VT). TEST the system for normal operation.
-------------------------------------------------
B6 CHECK THE STARTER MOTOR CONTROL OUTPUT DETECTED (SMC_MON) PID
- Enter the following diagnostic mode on the scan tool: PCM DataLogger/PID.
- Monitor the PCM PID SMC_MON with the ignition switch in the START position.
- Does the PID change from OFF to ON?
Yes
REPAIR circuit CDC12 (YE). TEST the system for normal operation.
No
INSTALL a new PCM. REFER to Computers and Control Systems. TEST the system for normal operation.
-------------------------------------------------
