Home >> Ford Truck >> 2010 >> Explorer AWD V6-4.0L >> Repair and Diagnosis >> Specifications >> Capacity Specifications >> Automatic Transmission/Transaxle >> Transmission Cooler, A/T

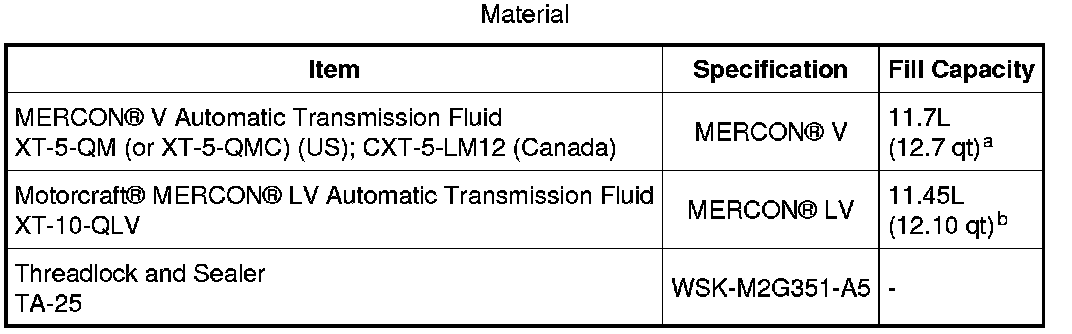

Transmission Cooler, A/T








a 5R55S Transmission

b 6R80 Transmission
