Accelerator Pedal - Fixed

Accelerator Pedal - Fixed









Removal and Installation

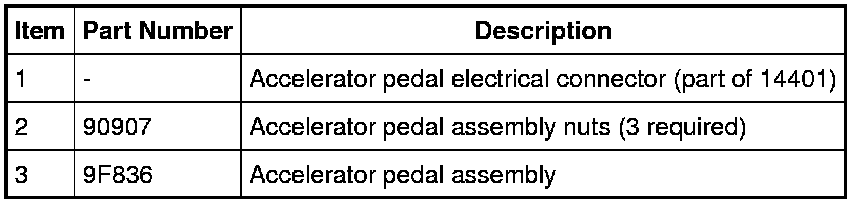

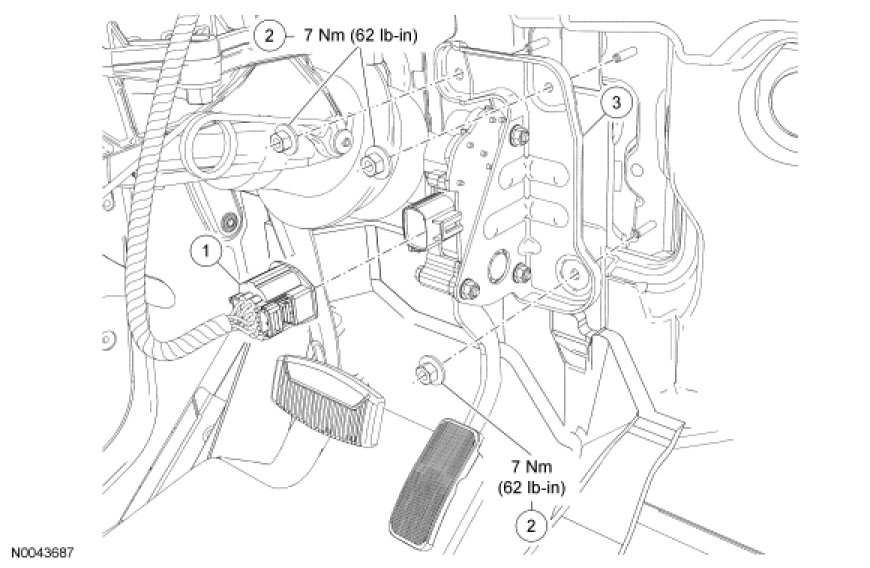

1. Disconnect the accelerator pedal electrical connector.

2. Remove the 3 nuts and the accelerator pedal assembly.
- To install, tighten to 7 Nm (62 lb-in).

3. To install, reverse the removal procedure.
