Ford Truck
>>
2010
>>
Explorer AWD V6-4.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>
Instrumentation, Message Center and Warning Chimes
Instrumentation, Message Center and Warning Chimes
Instrumentation, Message Center and Warning Chimes
DTC Charts

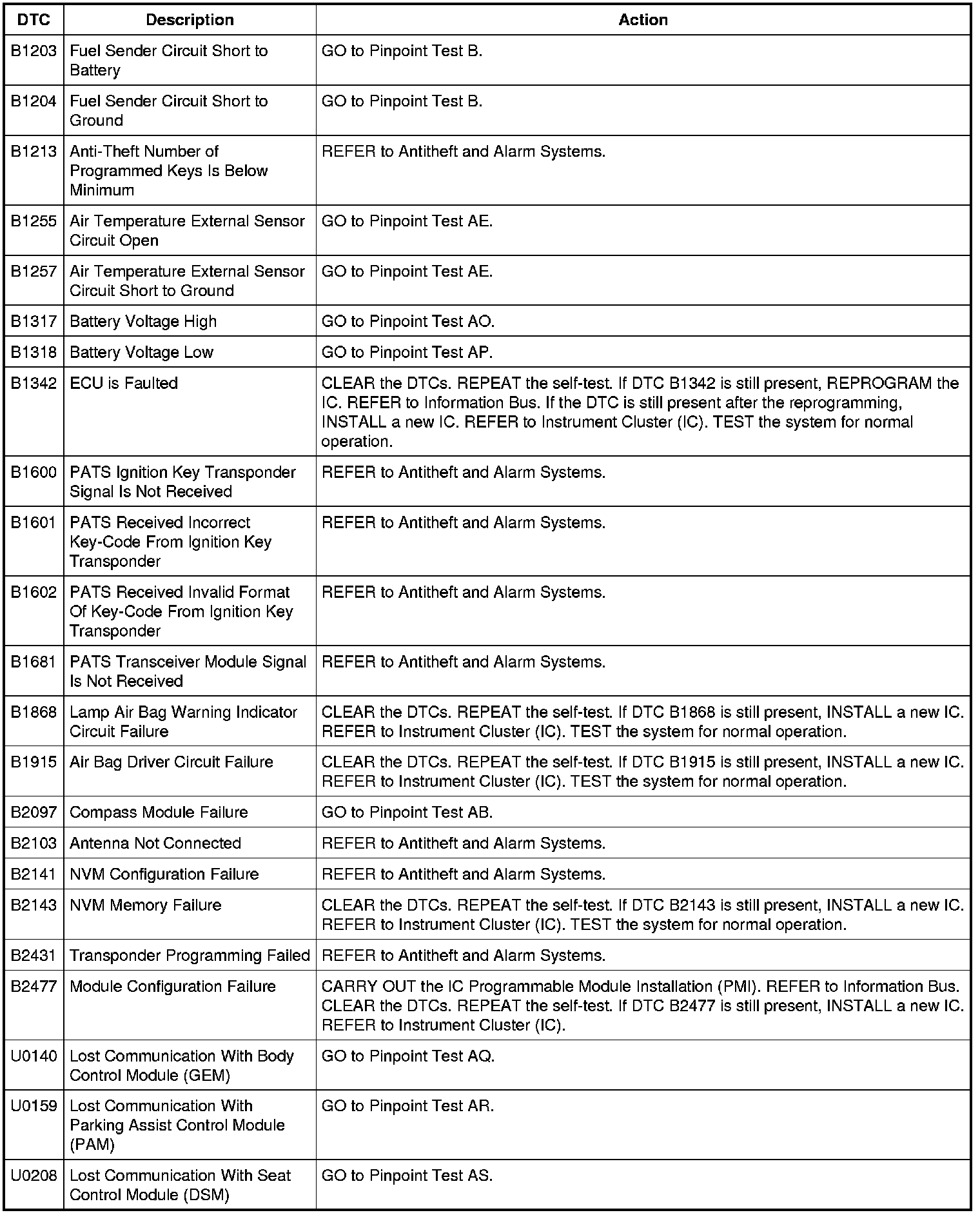

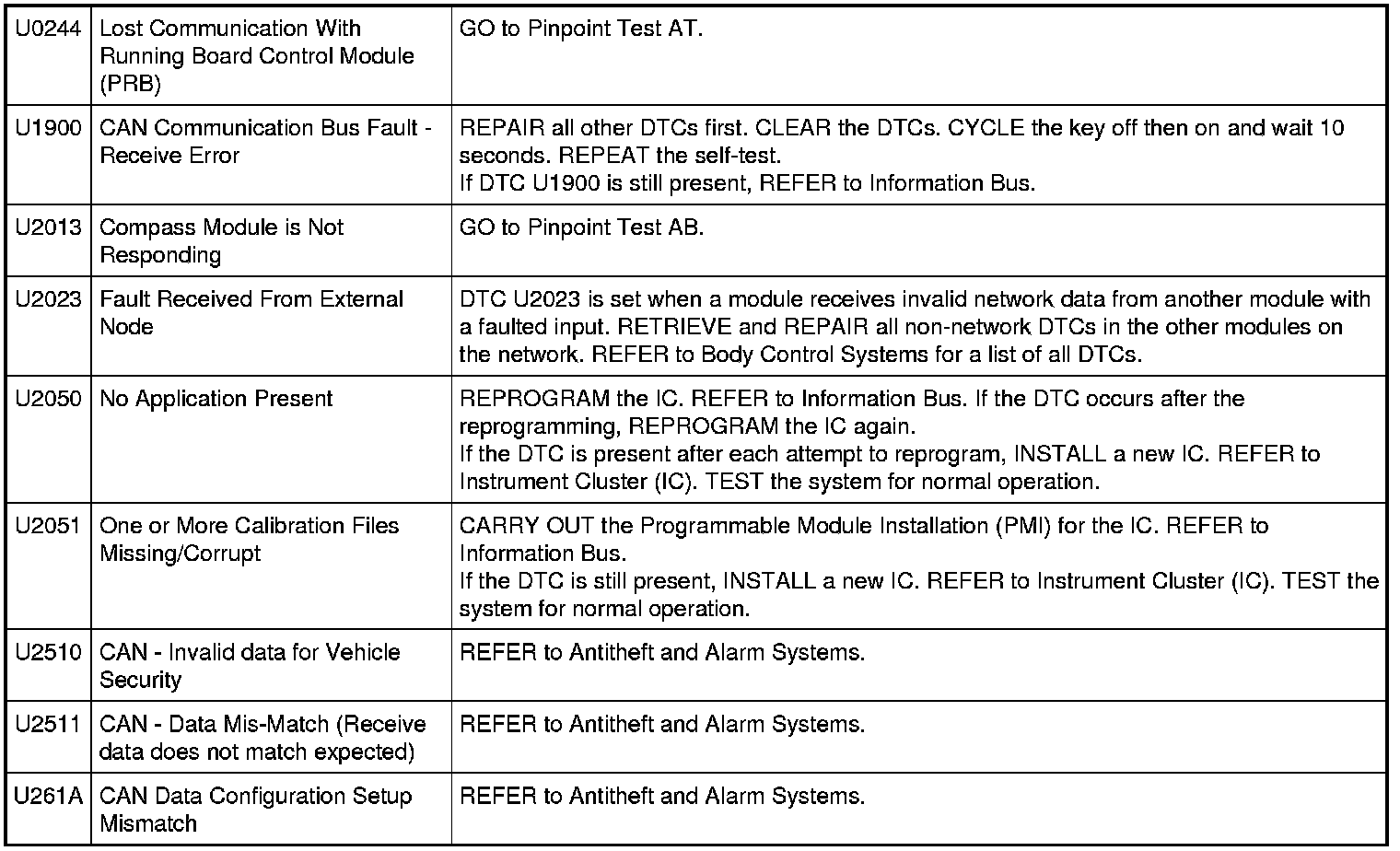

Instrument Cluster (IC) DTC Chart

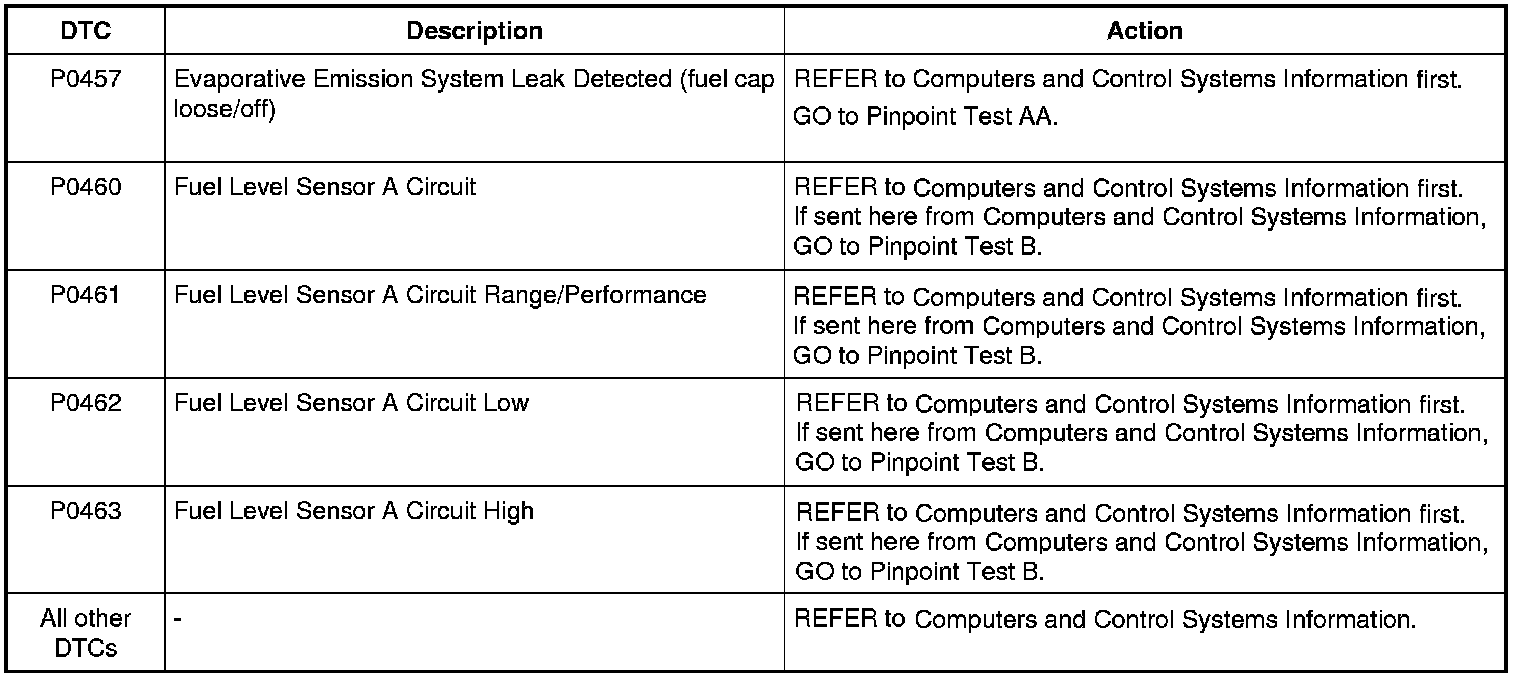

PCM DTC Chart
