Auxiliary Blower Motor: Service and Repair

Auxiliary Blower Motor

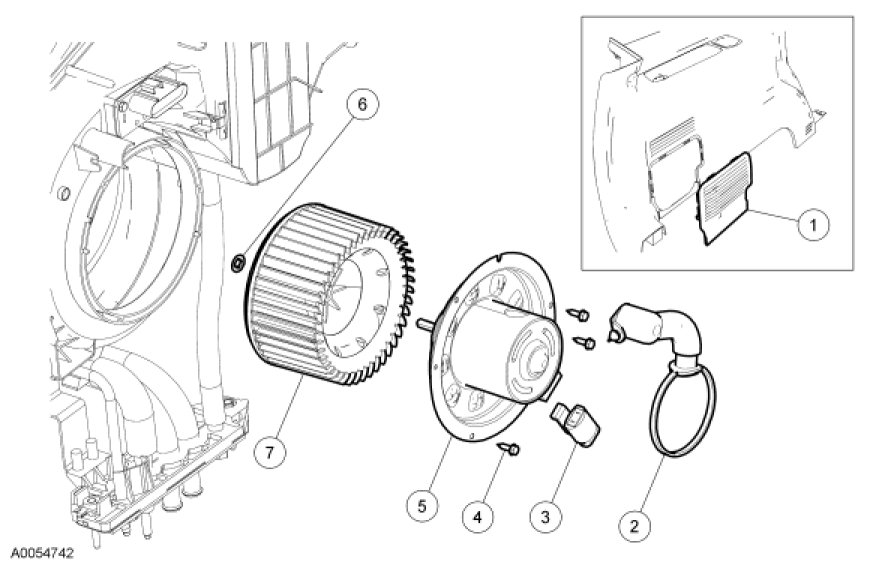

Removal and Installation

1. Remove the bolts and the rear cargo management cover.





2. Remove the screw and pin-type retainer and remove the rear cargo management system.





3. Remove the access panel.

4. Remove the vent tube.

5. Disconnect the blower motor electrical connector.

6. Remove the 3 blower motor screws.

7. Remove the blower motor.

8. Remove the blower motor retainer.

9. Remove the blower motor wheel.

10. To install, reverse the removal procedure.
