Valve Seals

Valve Seals









Removal

1. Remove the valve springs. For additional information, refer to Valve Springs Valve Springs.

2. Remove the valve seals.

Installation

1. NOTE: Lubricate the valve seals with clean engine oil.

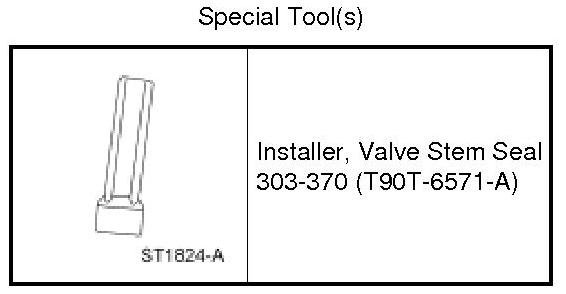

Using the Valve Stem Seal Installer, install the valve seal.





2. Install the valve springs. For additional information, refer to Valve Springs Valve Springs.
