Truck Bed Storage Compartment
>>
Pickup Bed and Platform Body
Pickup Bed and Platform Body

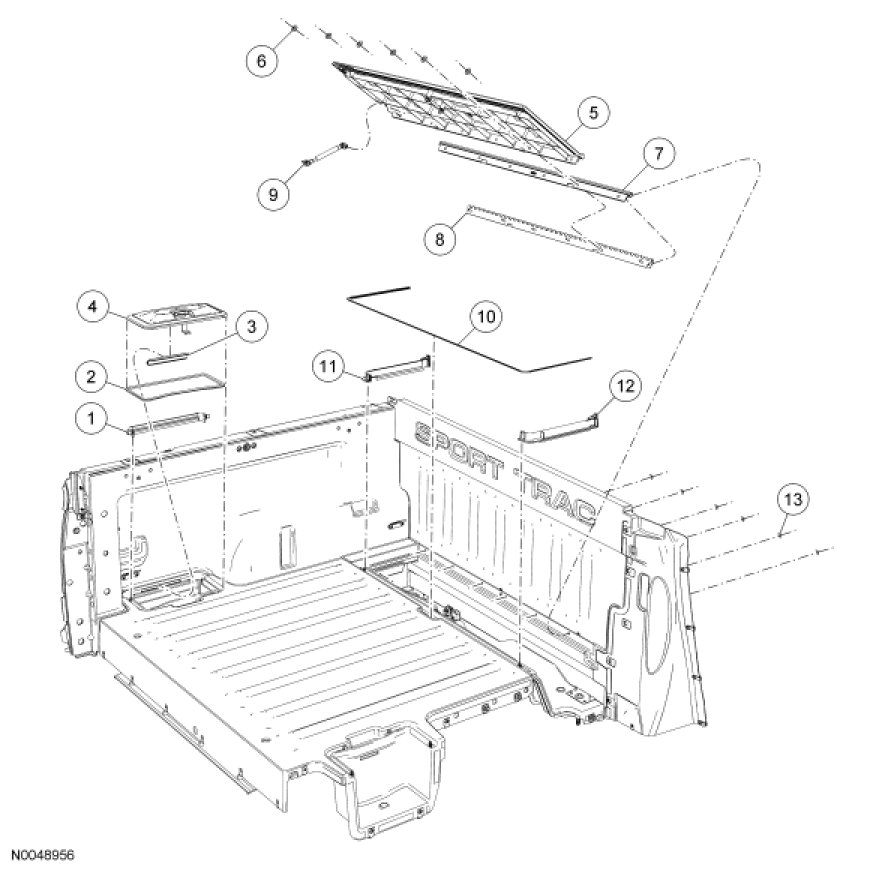

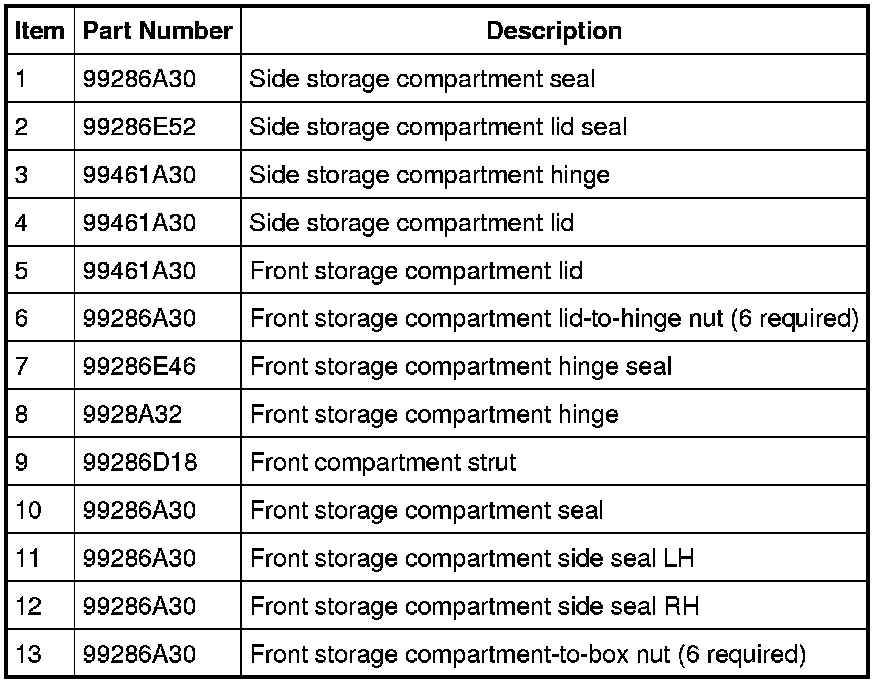

Pickup Bed Storage Compartment - Exploded View
