Cooling System

Radiator and Cooling Fan - Exploded View

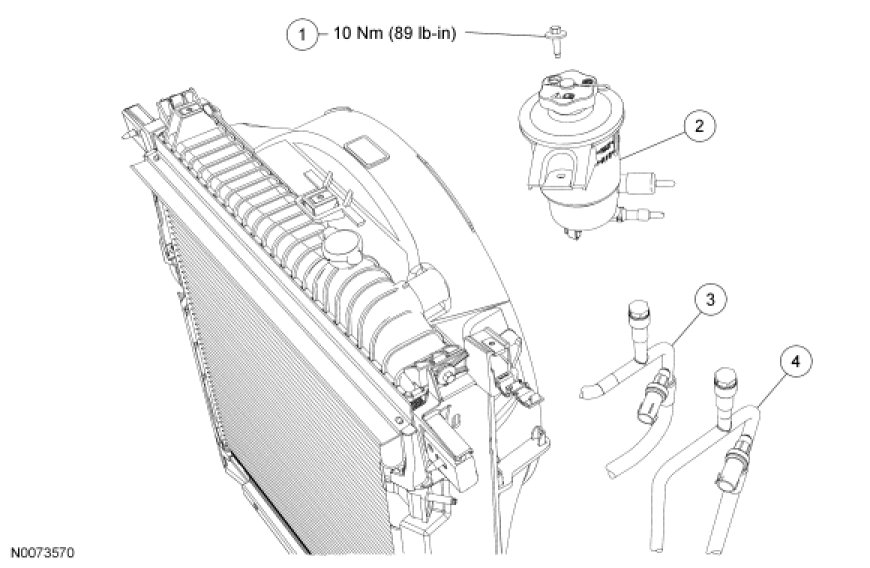

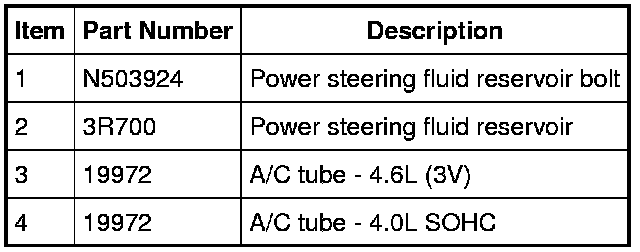

Power Steering Fluid Reservoir and A/C Tubes

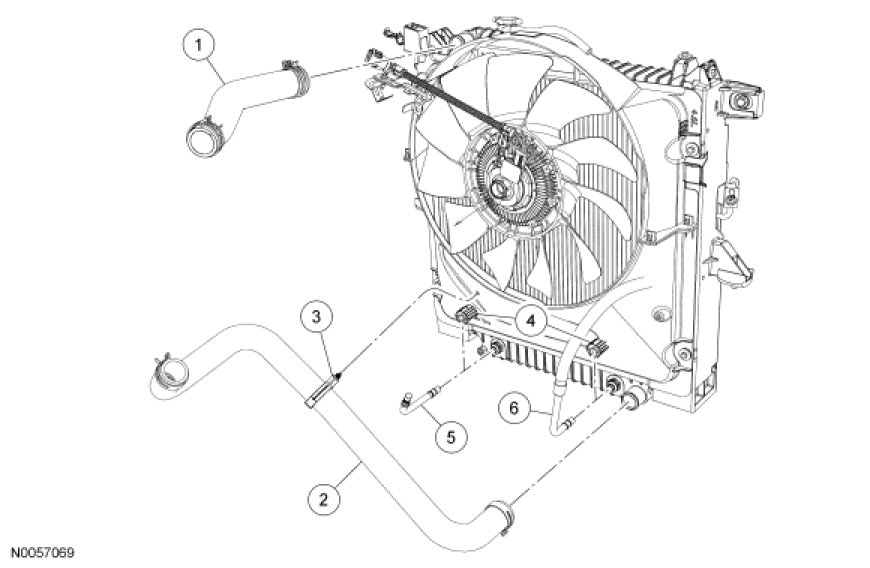

Radiator Hoses and Transmission Fluid Tubes

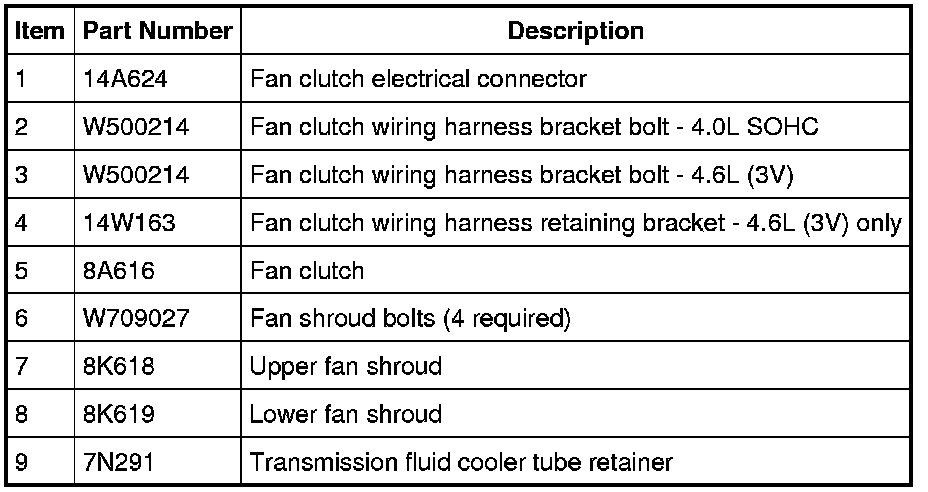

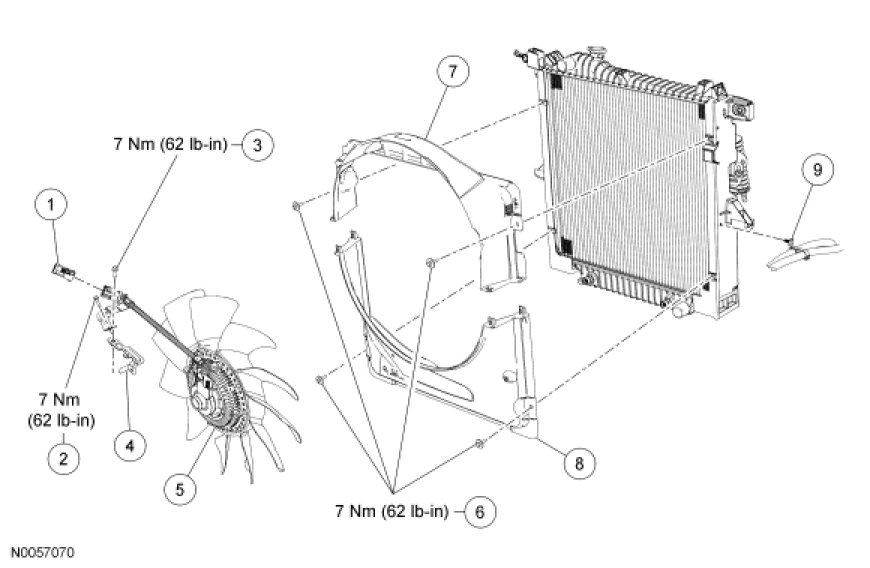

Cooling Fan and Shroud

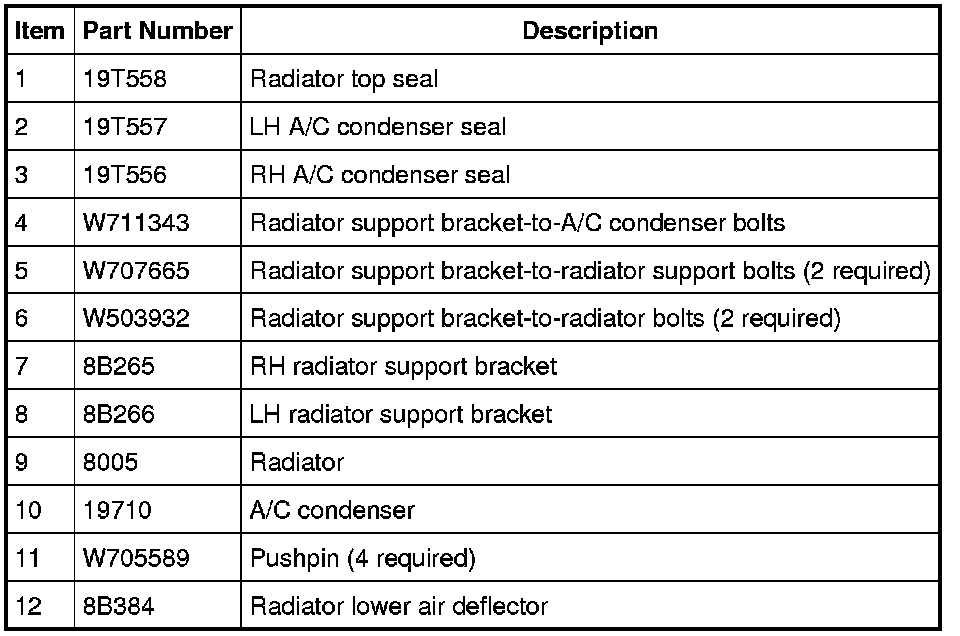

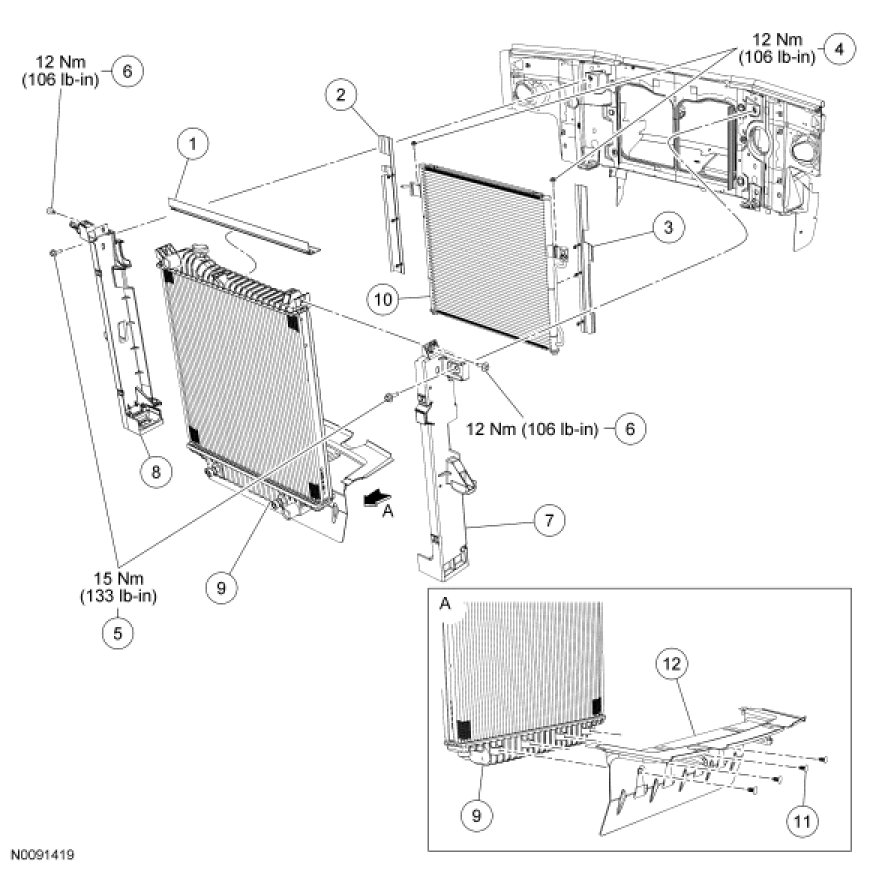

Radiator, Support Brackets and Seals

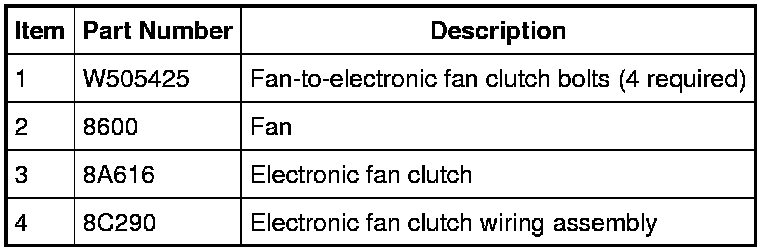

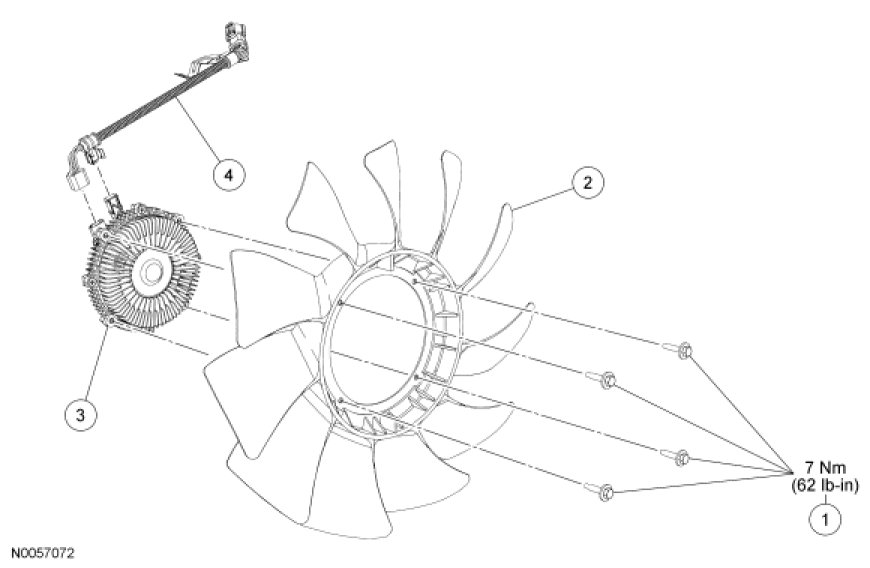

Cooling Fan and Electronic Fan Clutch
