6R80
>>
Exploded View Images
Exploded View Images
Mechatronic Assembly

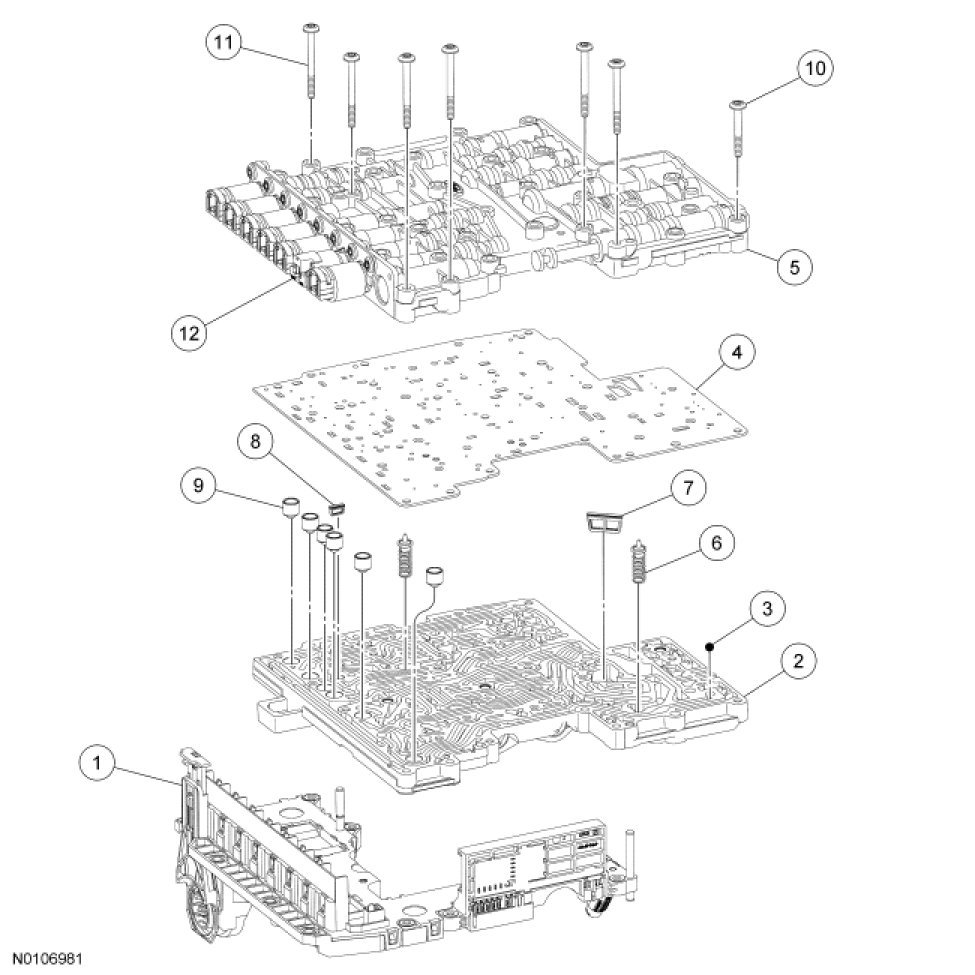

Mechatronic

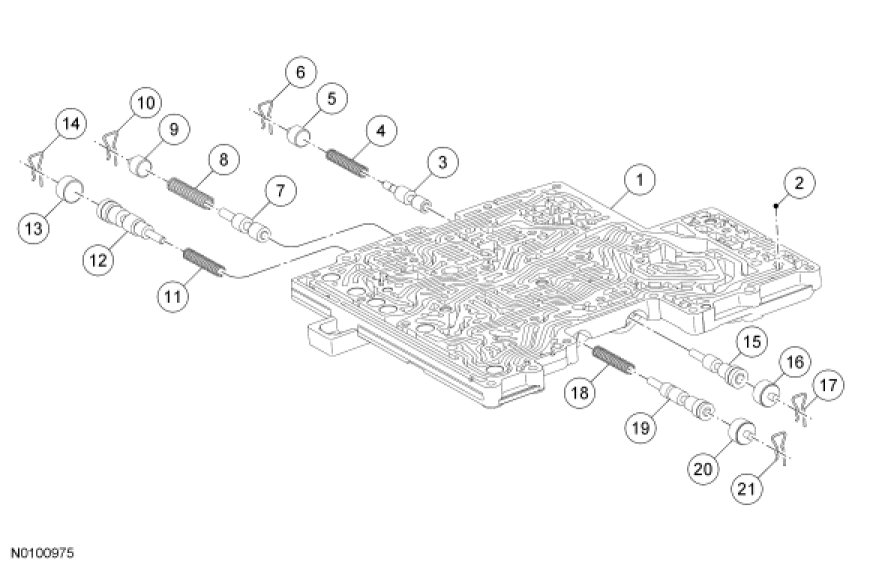

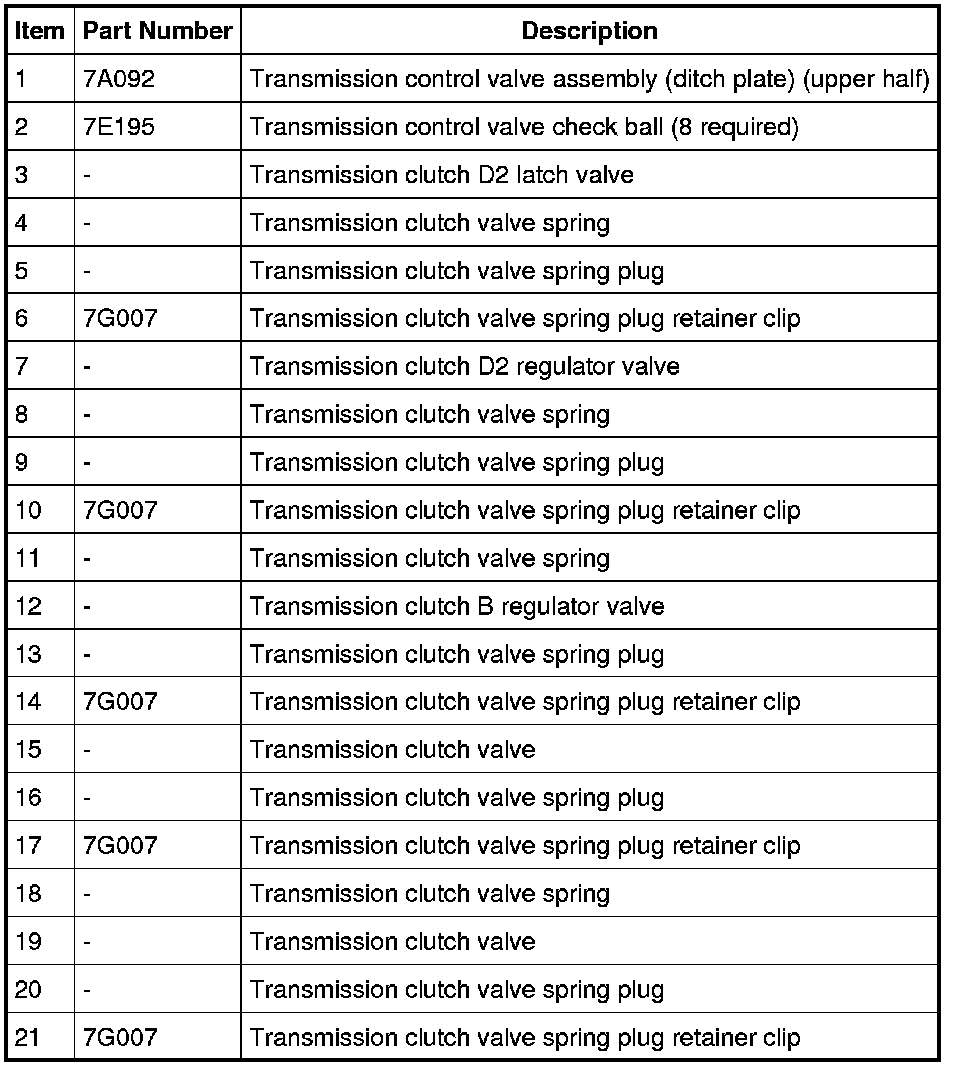

Mechatronic Upper Half

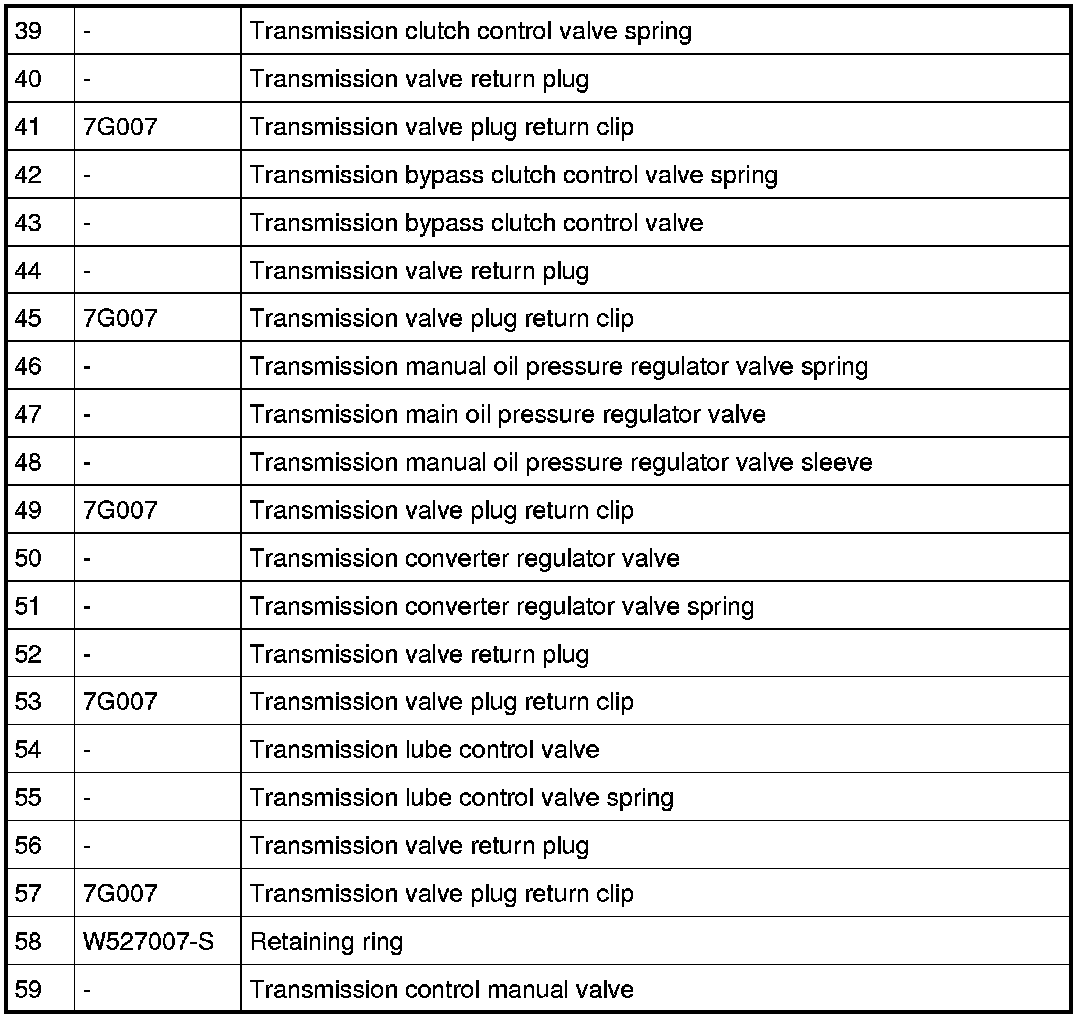

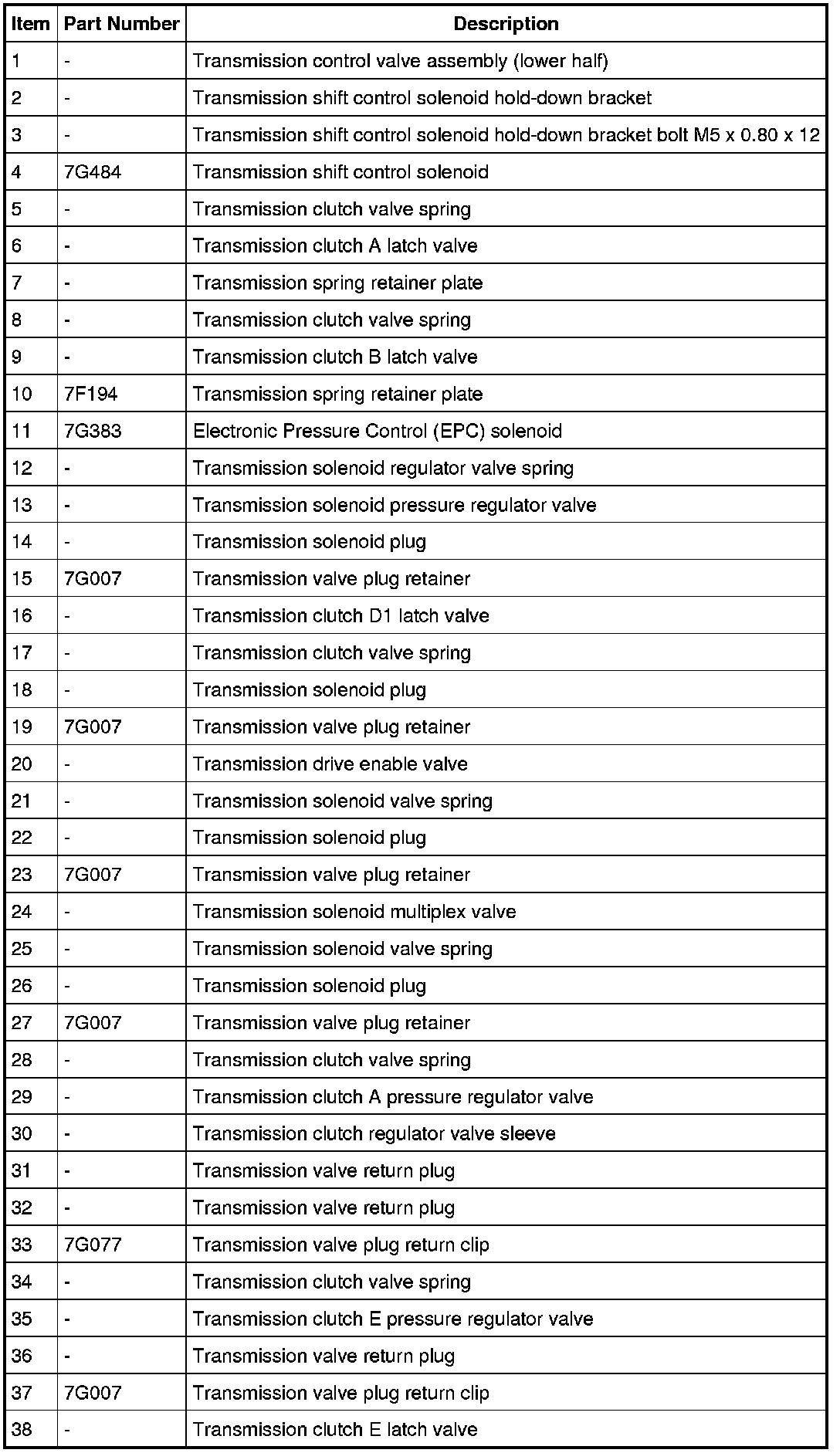

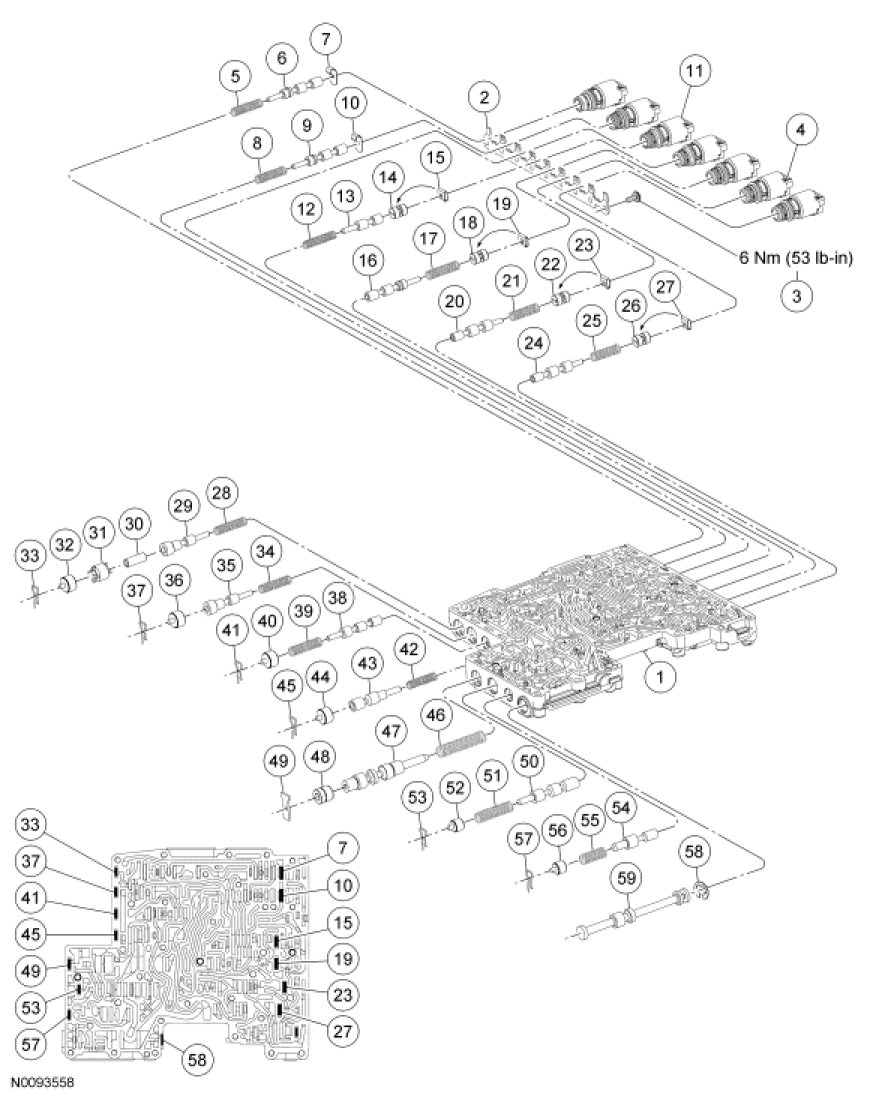

Mechatronic Lower Half

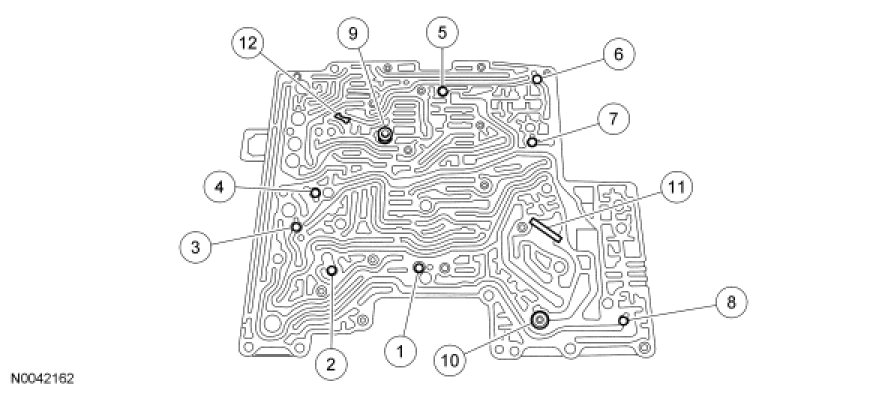

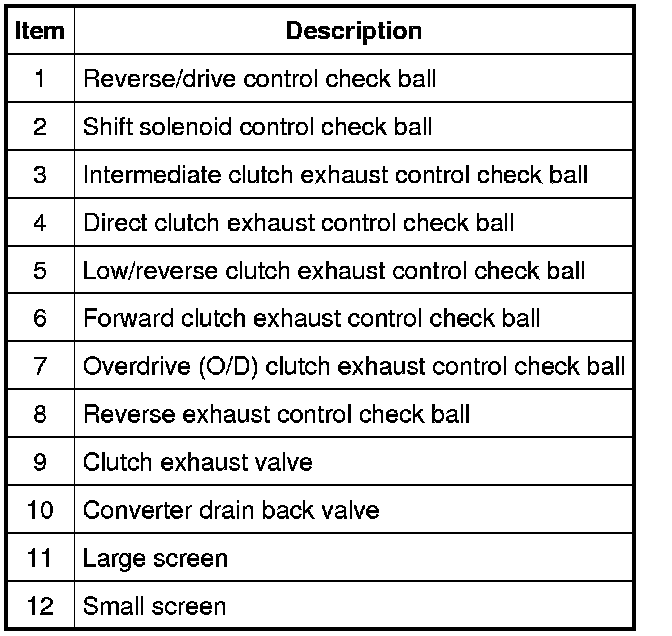

Check Ball Location
