Explorer AWD V6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
5R55S
>>
Disassembled Views
Disassembled Views
Transmission

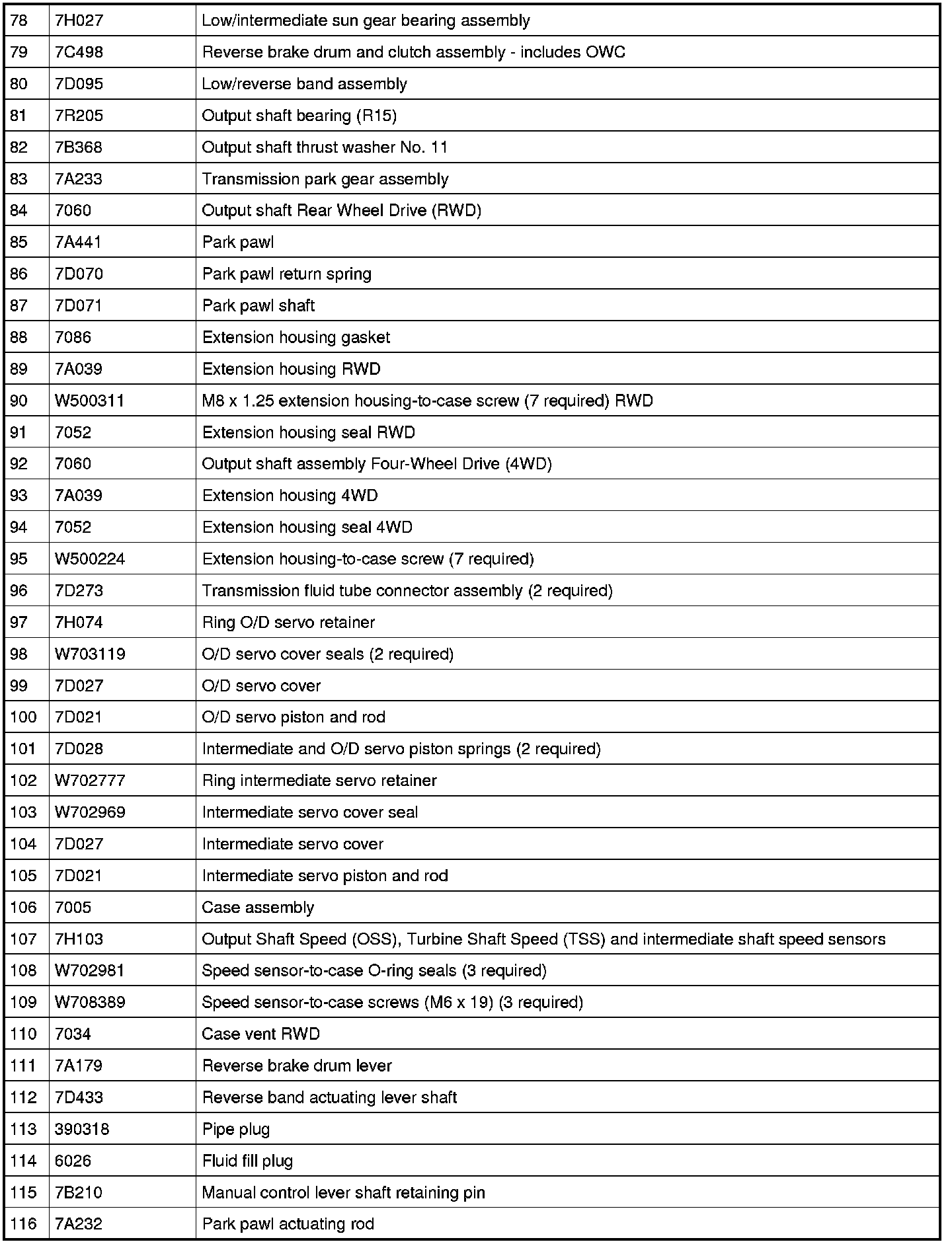

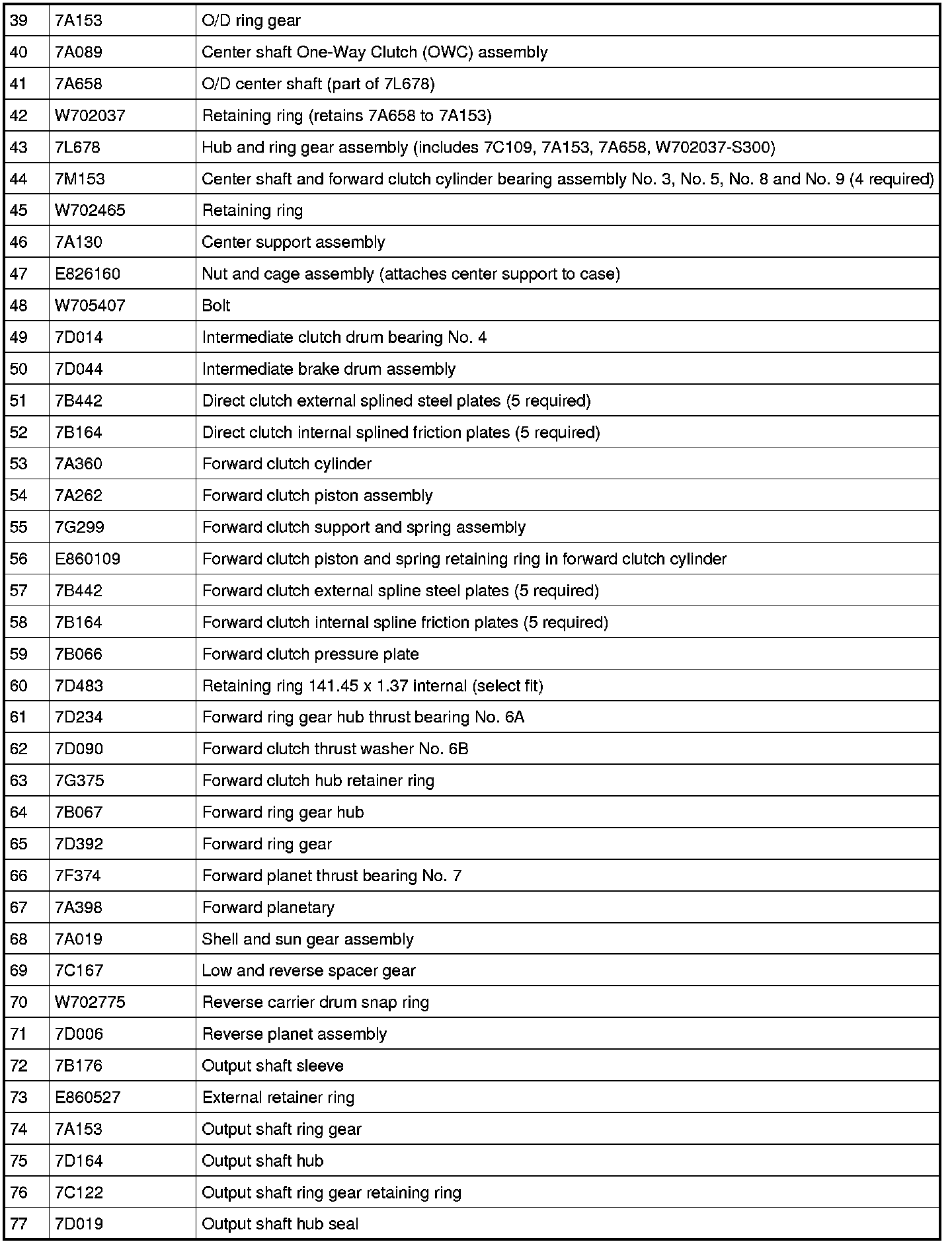

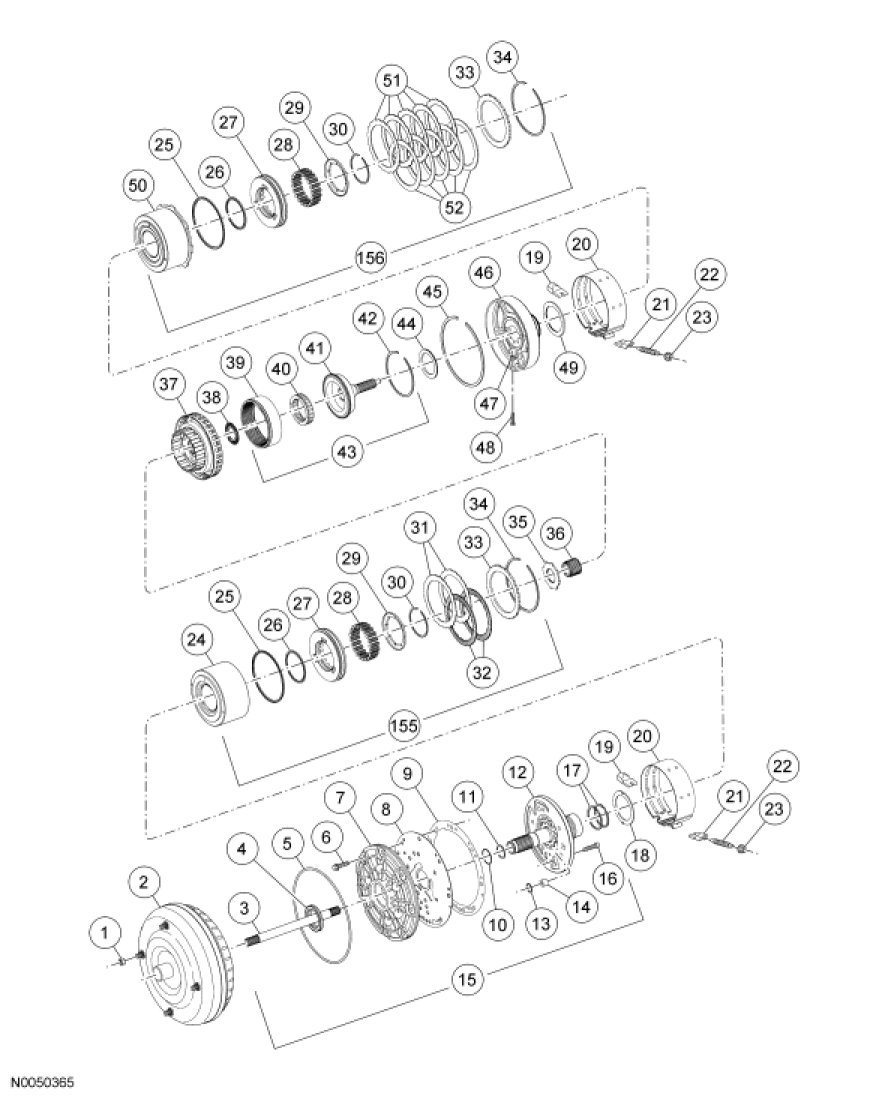

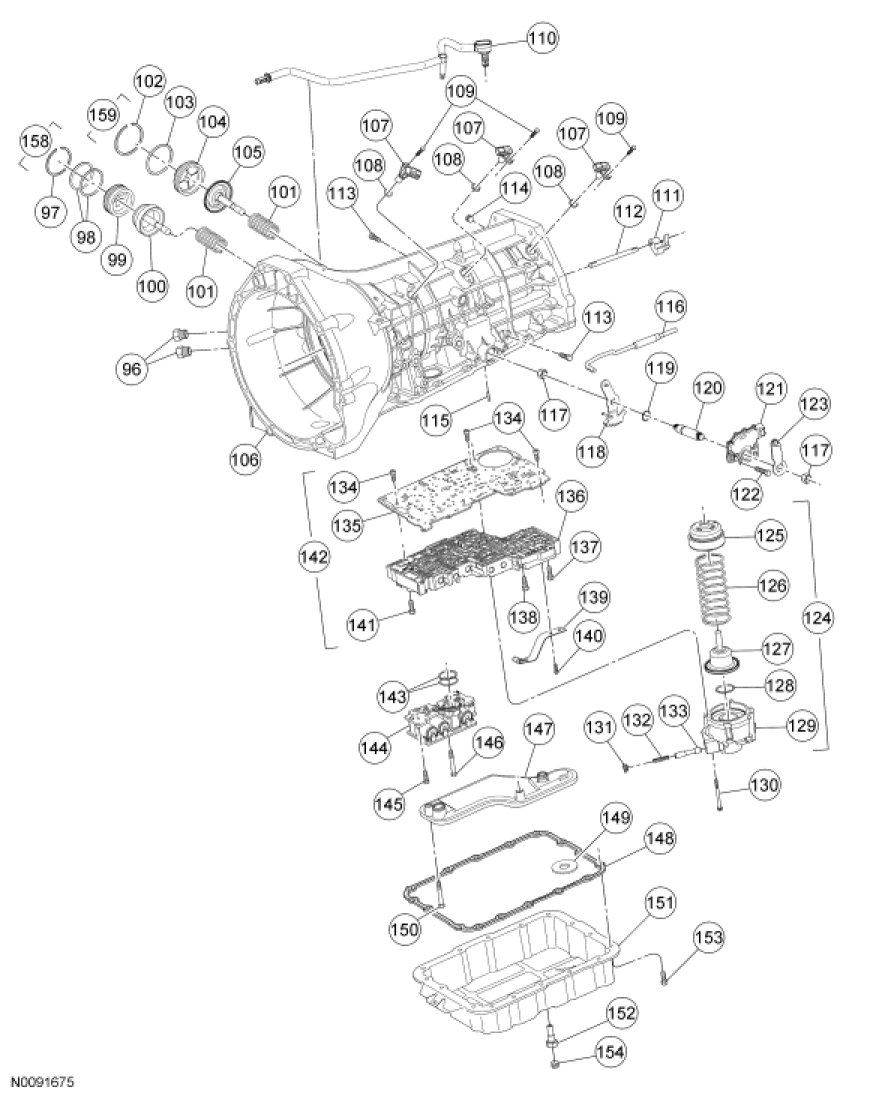

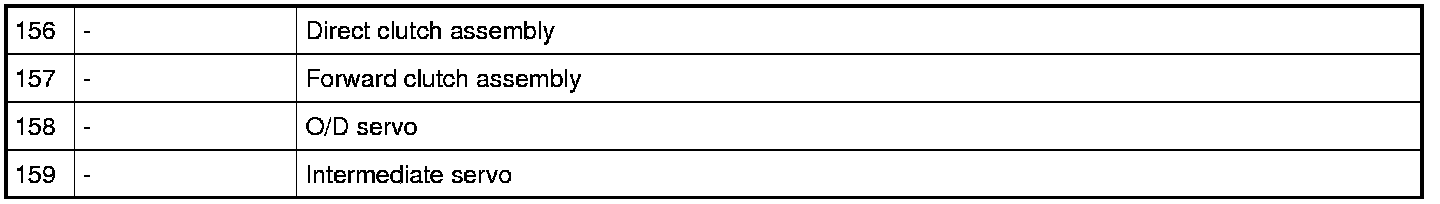

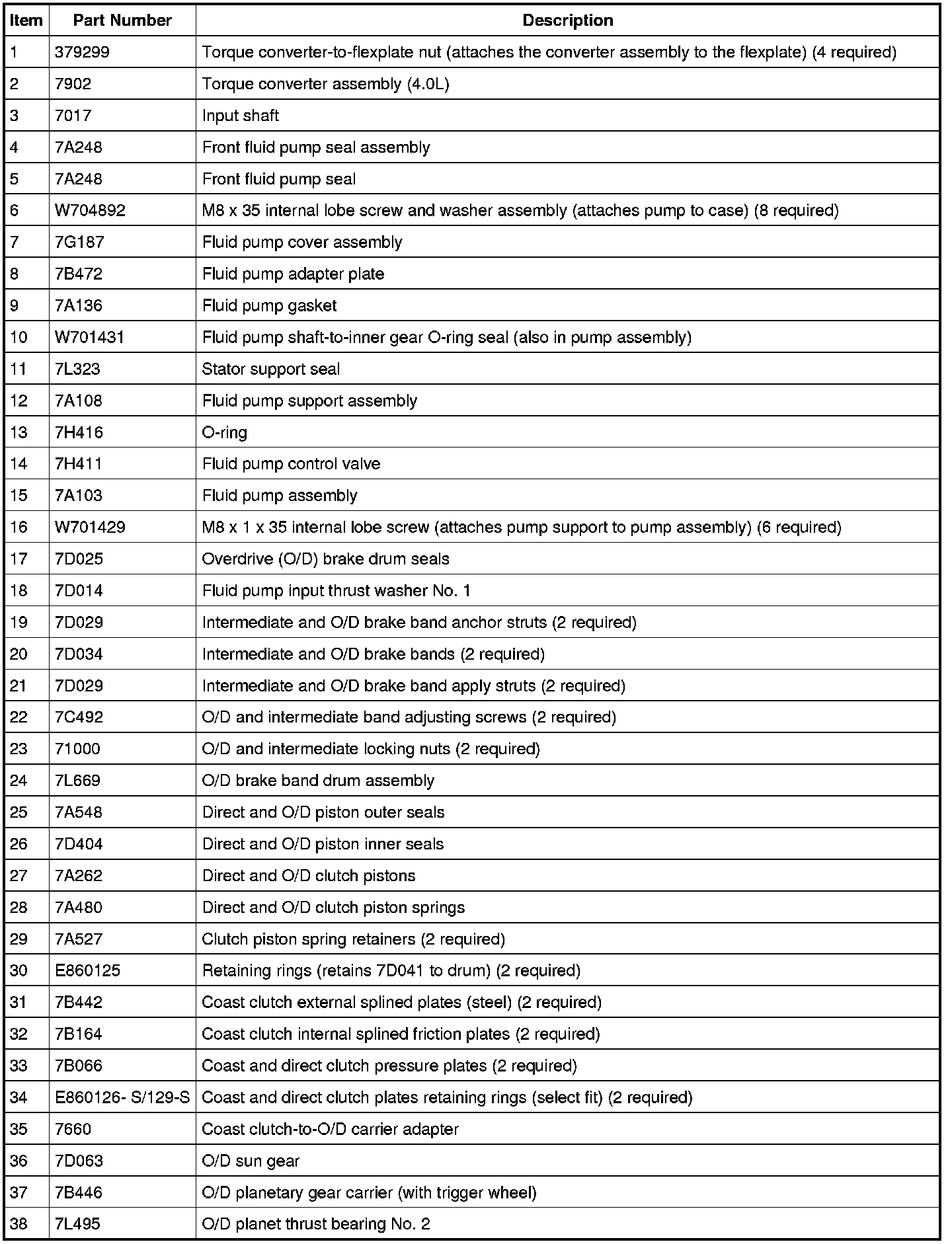

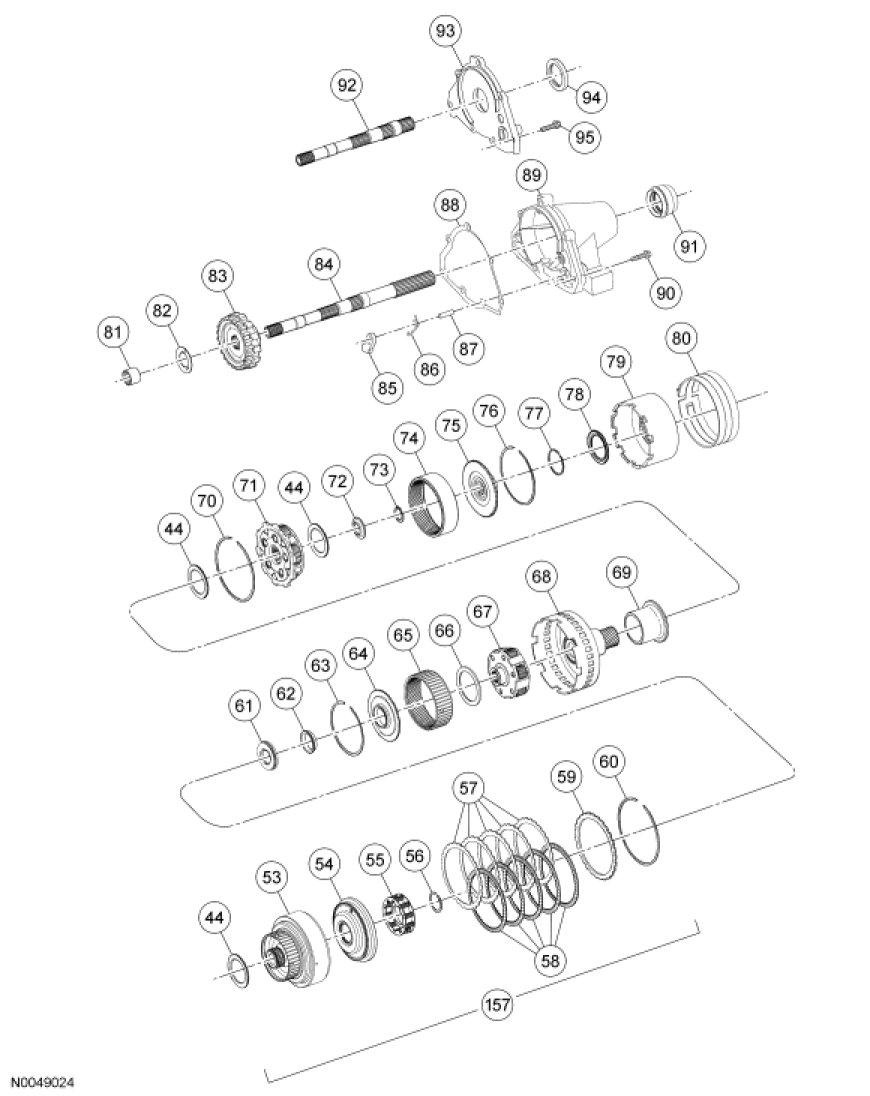

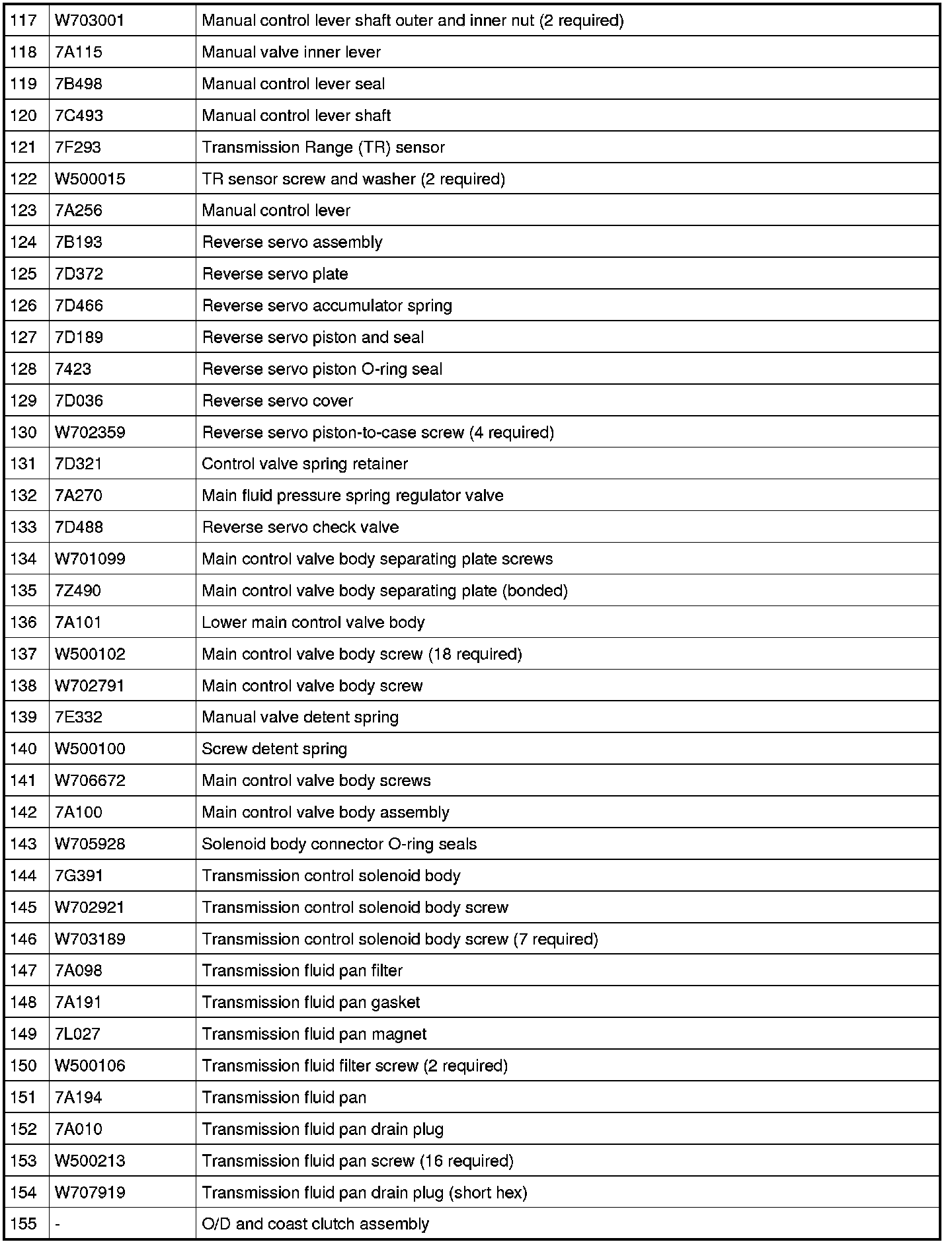

Disassembled Views
Disassembled Views
Disassembled Views
