Home >> Ford Truck >> 2010 >> Explorer AWD V6-4.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 95 (Trailer/Camper Adapter)

Diagram Set 95 (Trailer/Camper Adapter)

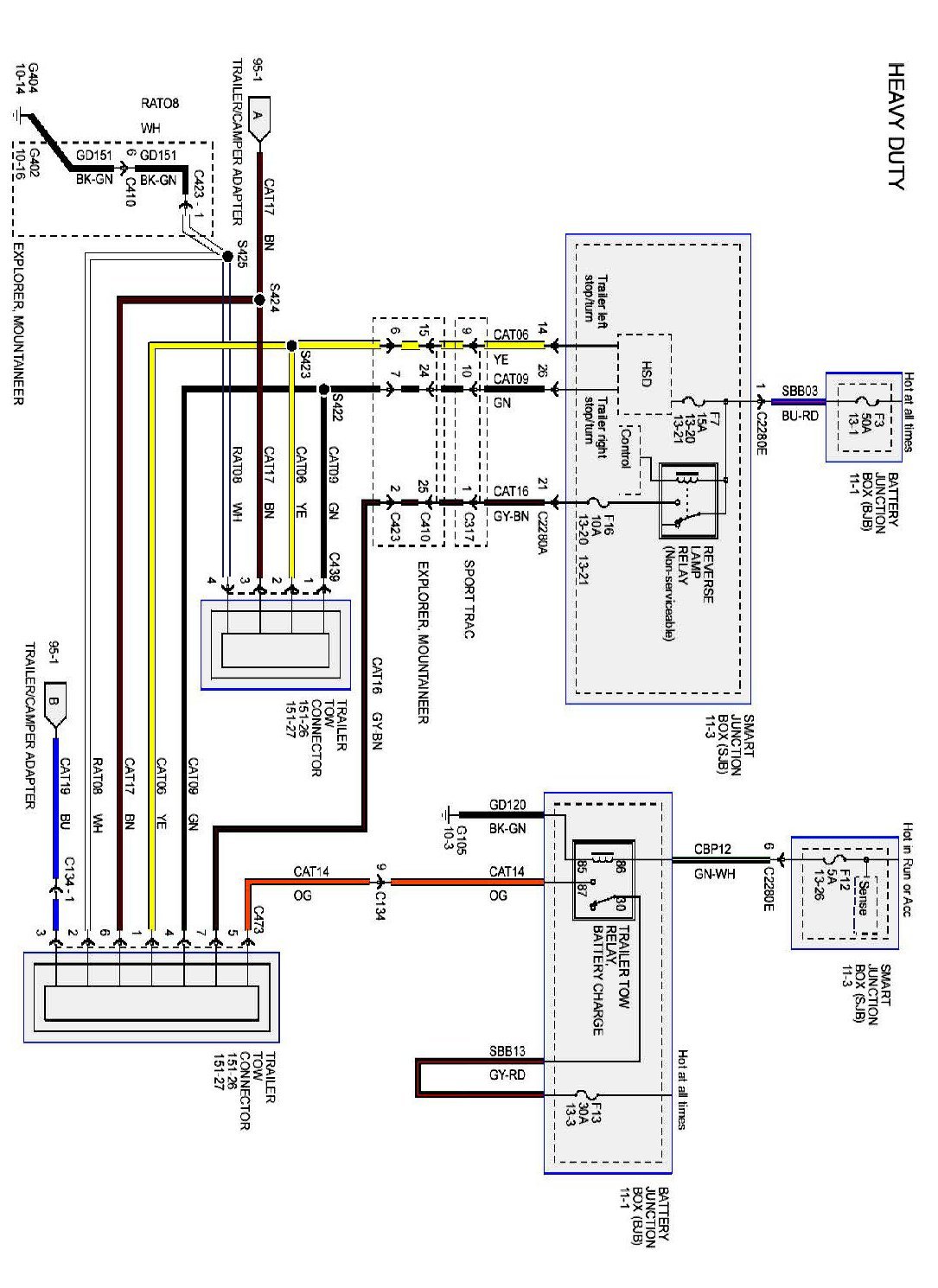

95-1:

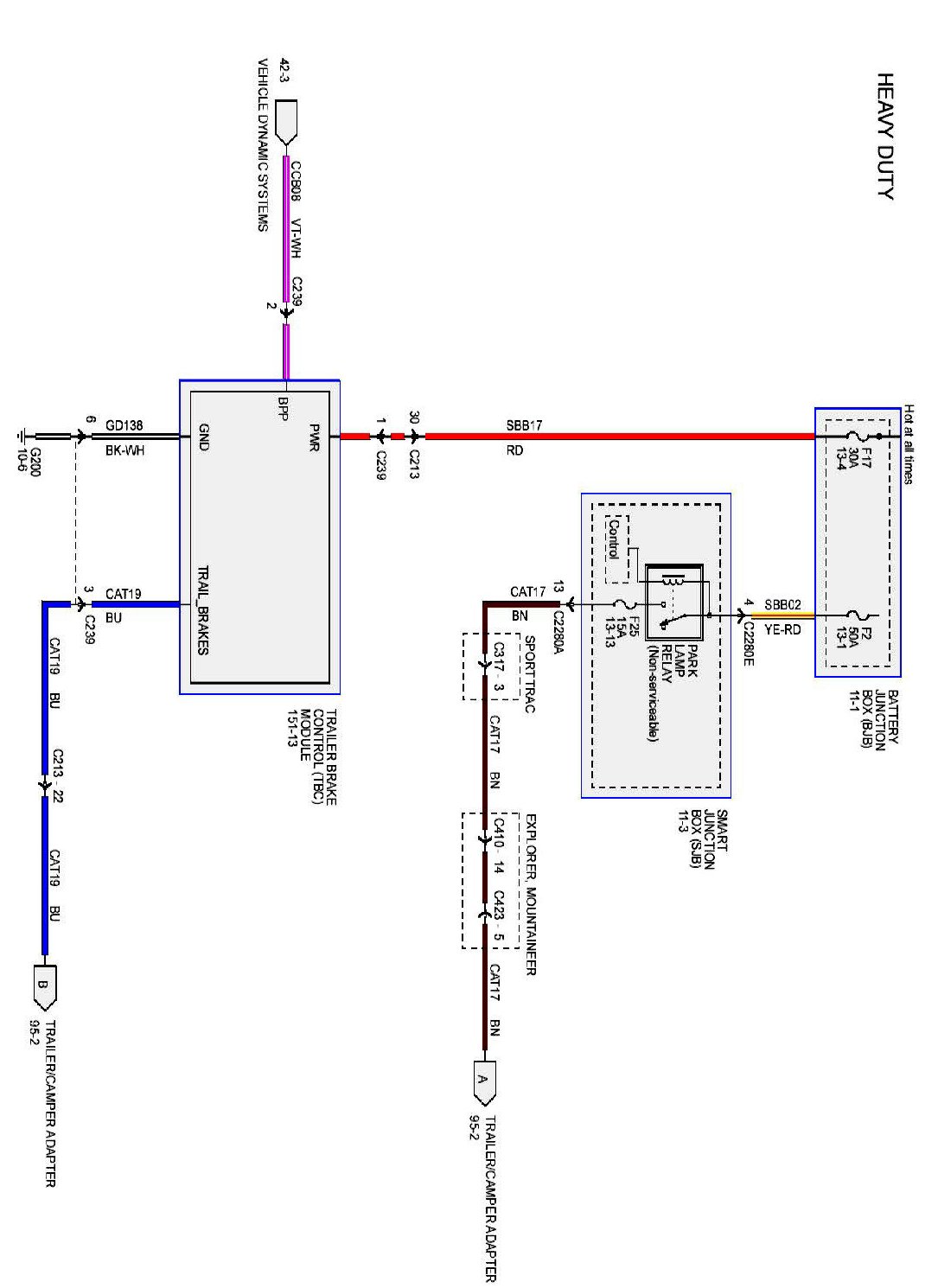

95-2:






95-4:
