Wheel Speed Sensor Ring - Rear

Wheel Speed Sensor Ring - Rear













Removal

1. Remove the rear halfshaft. For additional information, refer to Drive Axles, Bearings and Joints.

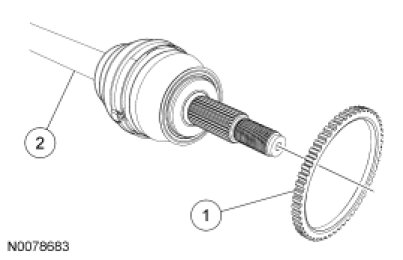

2. Using a suitable driver, remove the ABS wheel speed sensor ring.

Installation

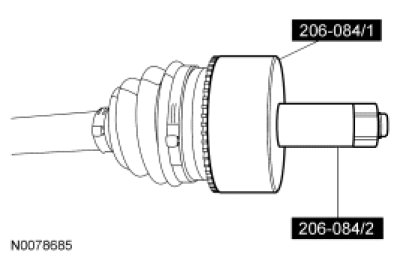

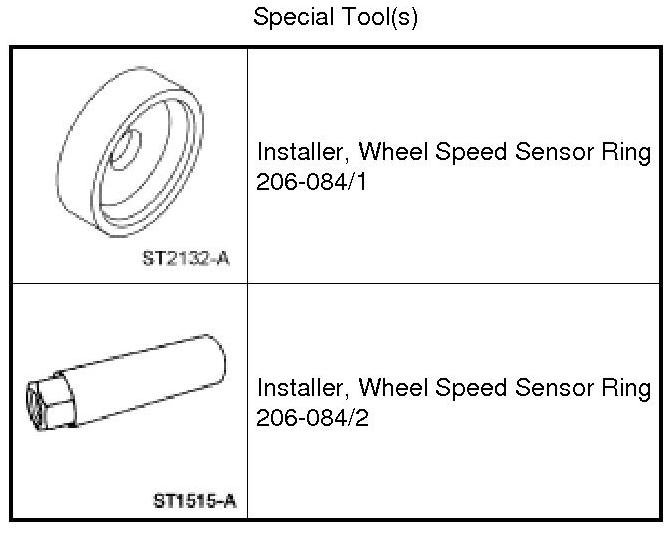

1. Install the new ABS wheel speed sensor and the Wheel Speed Sensor Ring Installers on the halfshaft as shown.

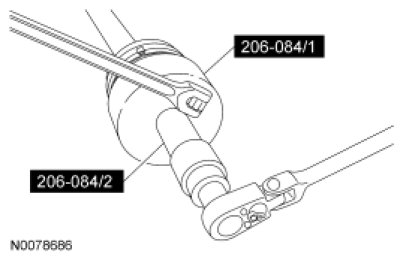

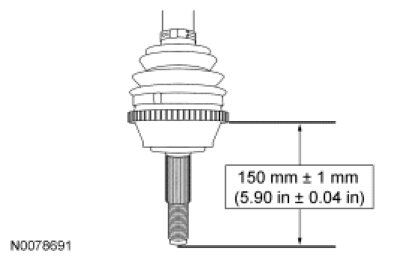

2. Using the Wheel Speed Sensor Ring Installers, install the ABS wheel speed sensor ring as shown.
