Wheel Speed Sensor - Rear

Wheel Speed Sensor - Rear









Removal and Installation

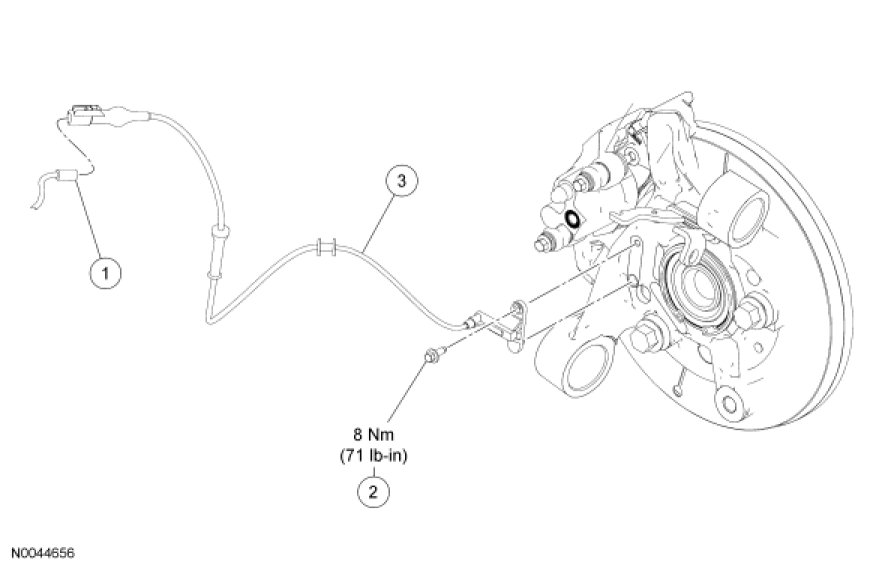

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

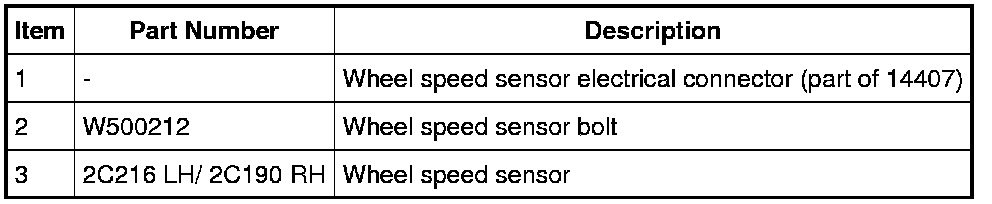

2. Disconnect the wheel speed sensor electrical connector.

3. Disconnect the wheel speed harness from the retainers.

4. Remove the wheel speed sensor bolt and the wheel speed sensor.
- To install, tighten to 8 Nm (71 lb-in).

5. To install, reverse the removal procedure.
