Wheel Speed Sensor - Front

Wheel Speed Sensor - Front

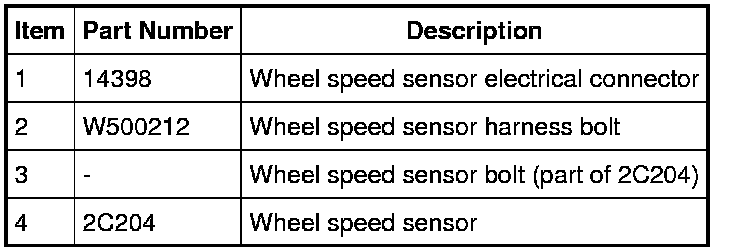

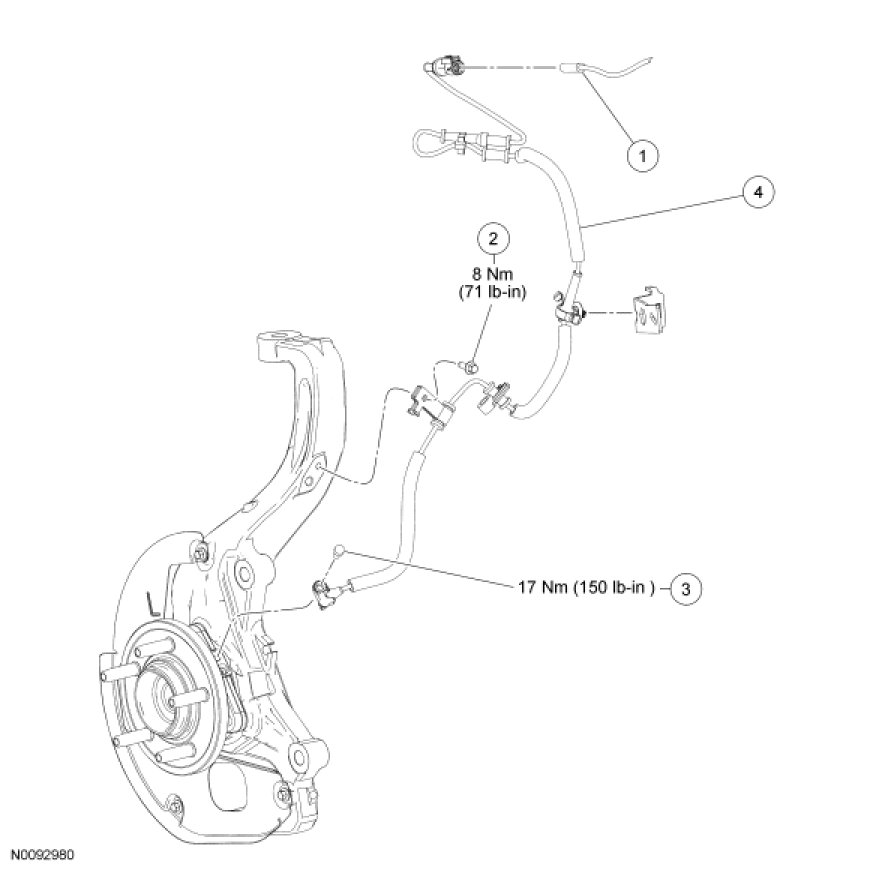

Removal and Installation

1. Remove the front brake disc. For additional information, refer to Disc Brake System.

2. Disconnect the wheel speed sensor electrical connector.

3. Remove the wheel speed sensor harness bolt.
- To install, tighten to 8 Nm (71 lb-in).

4. Remove the wheel speed sensor harness pin-type retainers.

5. Remove the wheel speed sensor bolt and the wheel speed sensor.
- To install, tighten the bolt to 17 Nm (150 lb-in).

6. To install, reverse the removal procedure.
