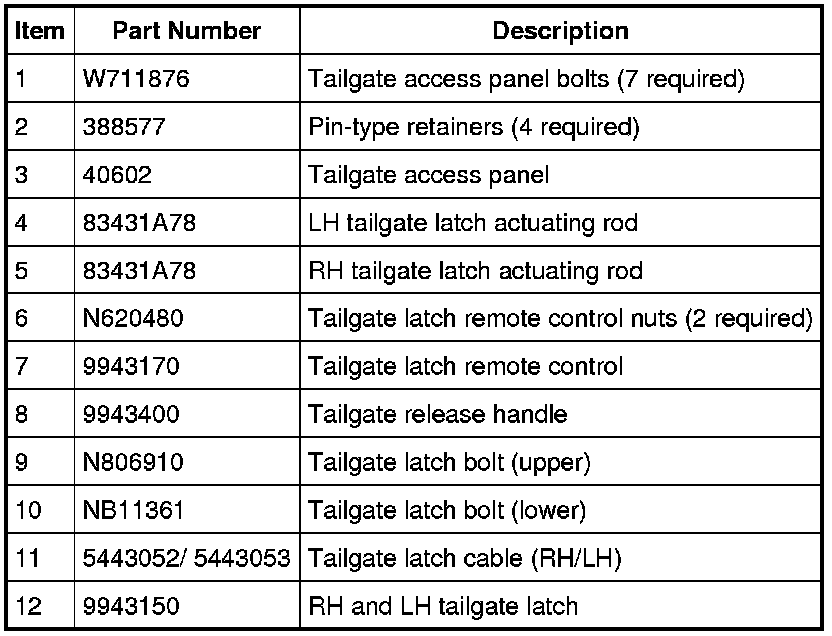

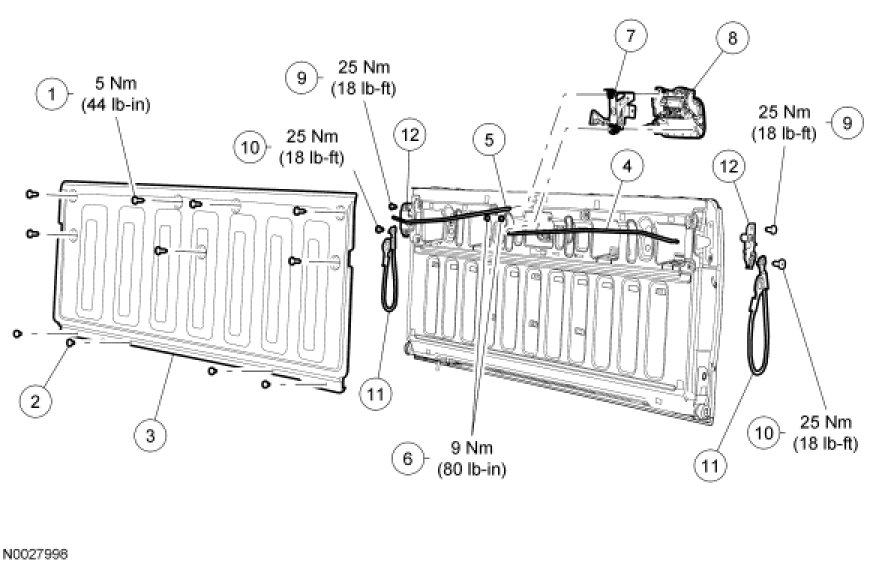

Tailgate Handle, Lock and Latches - Exploded View
Tailgate Handle, Lock and Latches - Exploded View
Tailgate Handle, Lock and Latches - Exploded View
