Seat Cushion - Third Row

Seat Cushion - Third Row

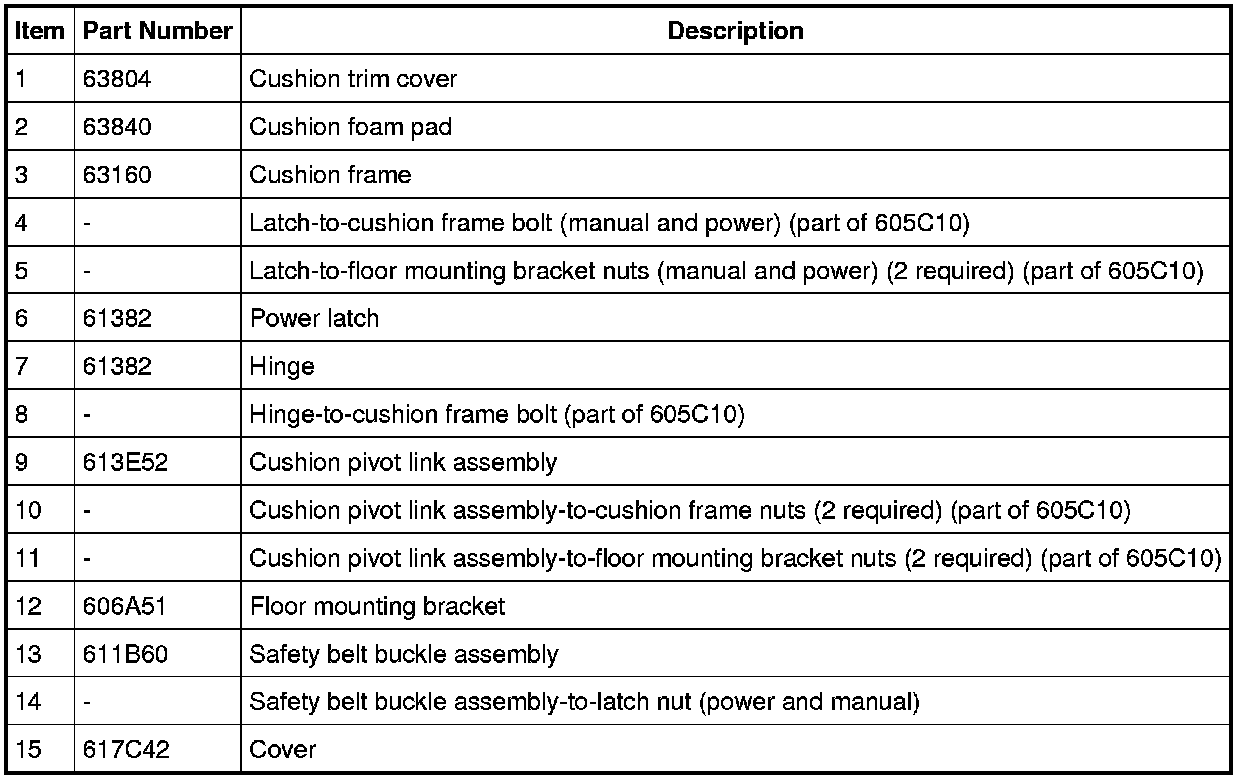

Third Row Seat Cushion

NOTE: RH cushion shown, LH similar.

NOTE: Power latch shown, manual latch similar.











Disassembly and Assembly

1. Remove the third row seat from the vehicle. For additional information, refer to Seat - Third Row Seat - Third Row.

2. Remove the third row cushion. For additional information, refer to Seat Cushion - Third Row Removal and Replacement.

3. Release the cushion trim cover J-clips attached to the bottom of the cushion frame.

4. Remove the cushion foam pad and trim cover from the cushion frame.

5. NOTICE: Use care when separating the backrest trim cover from the hook-and-loop strip, or the hook-and-loop strip can be torn from the backrest foam pad.

Invert the cushion trim cover, release the hook-and-loop strips and separate the cushion trim cover from the cushion foam pad.

6. To assemble, reverse the disassembly procedure.
