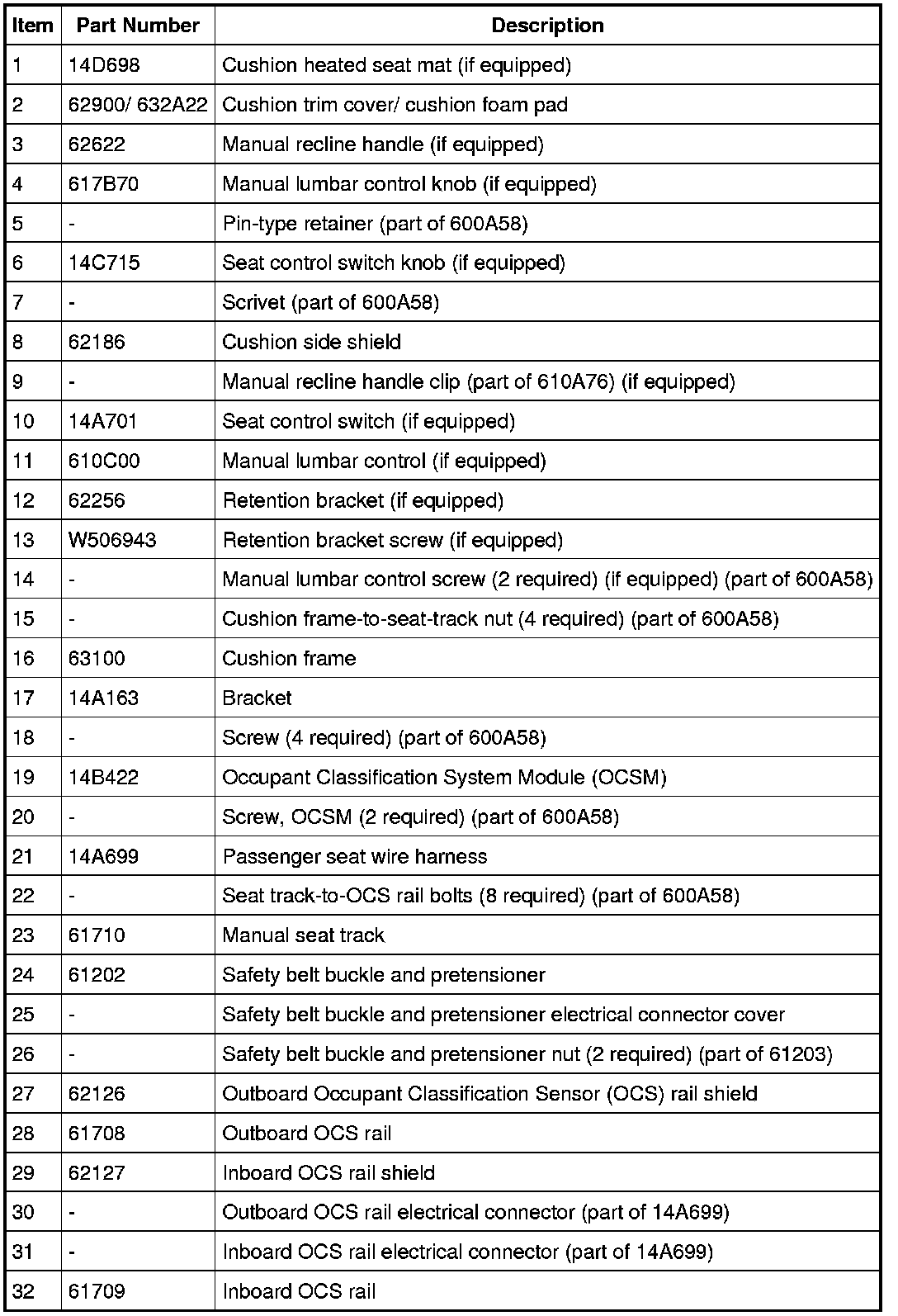

Seat Cushion - Front

Seat Cushion - Front

Driver Seat Cushion

NOTE: Power seat track shown, manual seat track similar.

NOTE: The retention bracket and screw can be used to repair cushion side shields that will not retain to the cushion frame wire.











Passenger Seat Cushion

NOTE: Manual seat track shown, power seat track similar.

NOTE: The retention bracket and screw can be used to repair cushion side shields that will not retain to the cushion frame wire.











Disassembly and Assembly

All seats

1. Remove the front seat. For additional information, refer to Seat - Front Seat - Front.

2. Remove the seat track. For additional information, refer to Seat Track Seat Track.

3. Remove the front seat backrest. For additional information, refer to Seat Backrest - Front Seat Backrest - Front.

4. NOTICE: Use care when separating the cushion trim cover from the hook-and-loop strip, or the hook-and-loop strip can be torn from the cushion foam pad.

Release the hook-and-loop strips, remove the hog rings and separate the cushion trim cover from the cushion foam pad.

Seat with heat

5. If necessary, remove the cushion heated seat mat and route out the wire harness through the cushion foam pad opening.

All seats

6. To assemble, reverse the disassembly procedure.

7. Install the front seat backrest. For additional information, refer to Seat Backrest - Front Seat Backrest - Front.

8. Install the seat track. For additional information, refer to Seat Track Seat Track.

9. Install the front seat. If a passenger seat has been serviced, do not prove out the SRS at this time. For additional information, refer to Seat - Front Seat - Front.

Passenger seat

10. Carry out the Occupant Classification Sensor (OCS) System Zero Seat Weight Test and prove out the SRS. For additional information, refer to General Procedures portion of Restraint Systems. Component Tests and General Diagnostics
