Seat Backrest - Second Row, Bucket

Seat Backrest - Second Row, Bucket









Disassembly and Assembly

1. Remove the second row, 40 percent bucket seat backrest. For additional information, refer to Seat Backrest - Second Row, Bucket Seat Backrest - Second Row, Bucket.

2. Remove the head restraint.

3. NOTICE: Use care when separating the backrest trim cover from the hook-and-loop strip, or the hook-and-loop strip can be torn from the backrest foam pad.

Separate the backrest trim cover hook-and-loop fasteners, remove 2 rows of hog rings and invert the backrest trim cover as high as it will go.

4. NOTE: The inboard and outboard head restraint sleeves are not interchangeable.

NOTE: The head restraint sleeves incorporate an alignment tab that must face forward when installed.

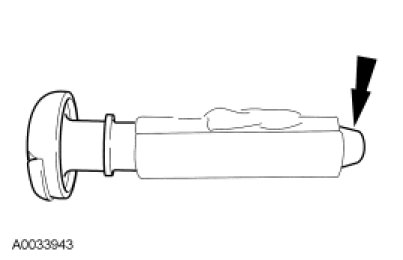

Squeeze together the tip of the head restraint sleeve and pull the sleeve out of the frame tube.





5. Remove the backrest trim cover.

6. Remove the backrest foam pad from the backrest frame.

7. To assemble, reverse the disassembly procedure.
