Ford Truck
>>
2010
>>
Explorer AWD V6-4.0L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
Diagnostic Trouble Code Descriptions
Handles, Locks, Latches and Entry Systems
DTC Charts

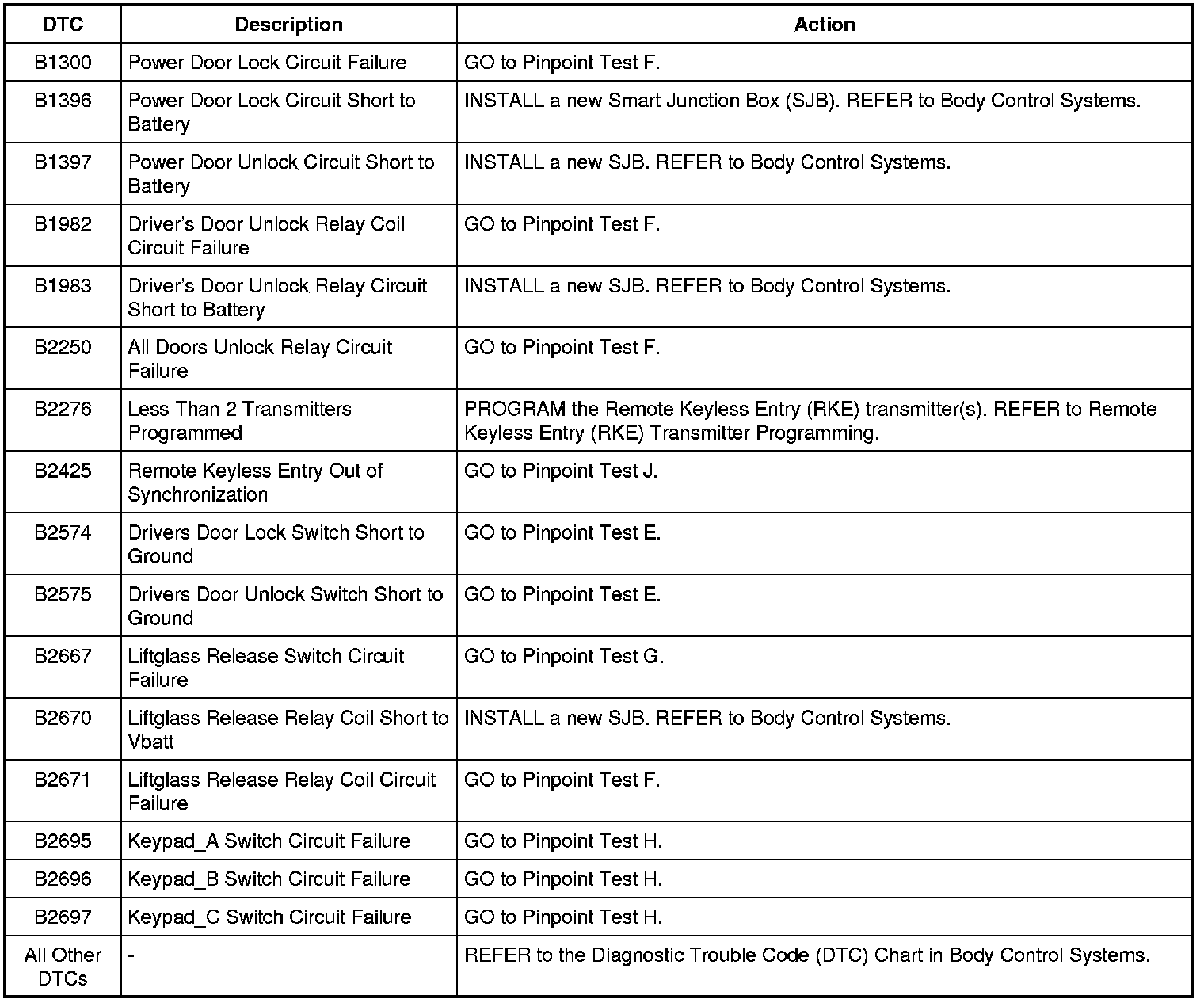

Smart Junction Box (SJB) DTC Chart
NOTE:
Do not replace the SJB for DTC B2276 or DTC B2425.
