Cowl Side Trim Panel

Cowl Side Trim Panel

Removal and Installation

All vehicles

1. Remove the front door scuff plate.

Passenger side

2. Remove the cowl trim panel.

Driver side

3. Remove the hood release lever.

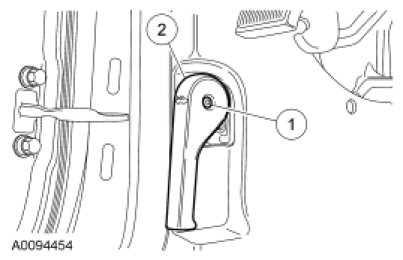

1. Remove the screw.

2. Remove the hood release lever.





4. Remove the cowl trim panel.

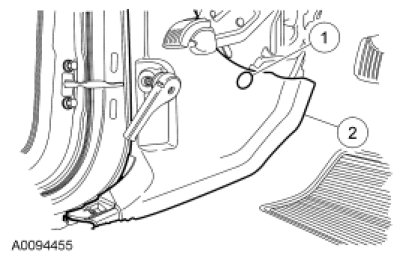

1. Remove the pin-type retainer.

2. Remove the cowl trim panel.





All vehicles

5. To install, reverse the removal procedure.
