Cab Rear Trim Panel

Cab Rear Trim Panel

1. Position the second row seat back forward.

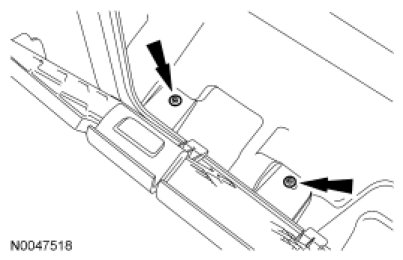

2. Remove the 2 screws from the storage compartment.





3. NOTE: When removing the cab rear trim panel, start in the upper left corner, moving clockwise and remove the panel from the retaining clips.

Remove the rear trim panel.

4. To install, reverse the removal procedures.
