B-Pillar Upper Trim Panel

B-Pillar Upper Trim Panel

Removal and Installation

1. Remove the B-pillar lower trim panel. For additional information, refer to B-Pillar Lower Trim Panel B-Pillar Lower Trim Panel.

2. Remove the D-ring safety belt anchor bolt.
- To install, tighten to 40 Nm (30 lb-ft).

3. Position the door opening weatherstrip aside.

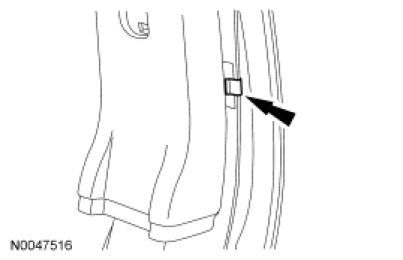

4. Remove the B-pillar upper trim panel retaining clip from the lower right corner of the panel.

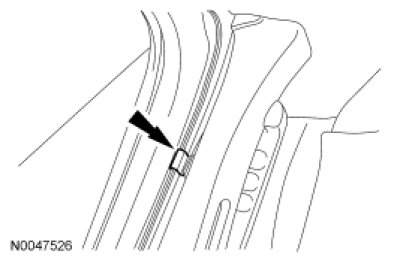

5. Remove the B-pillar upper trim panel retaining clip from the upper left of the panel.





6. To install, reverse the removal procedure.
- Be sure the hole on the back of the B-pillar upper trim panel is seated over the safety belt D-ring bolt.
