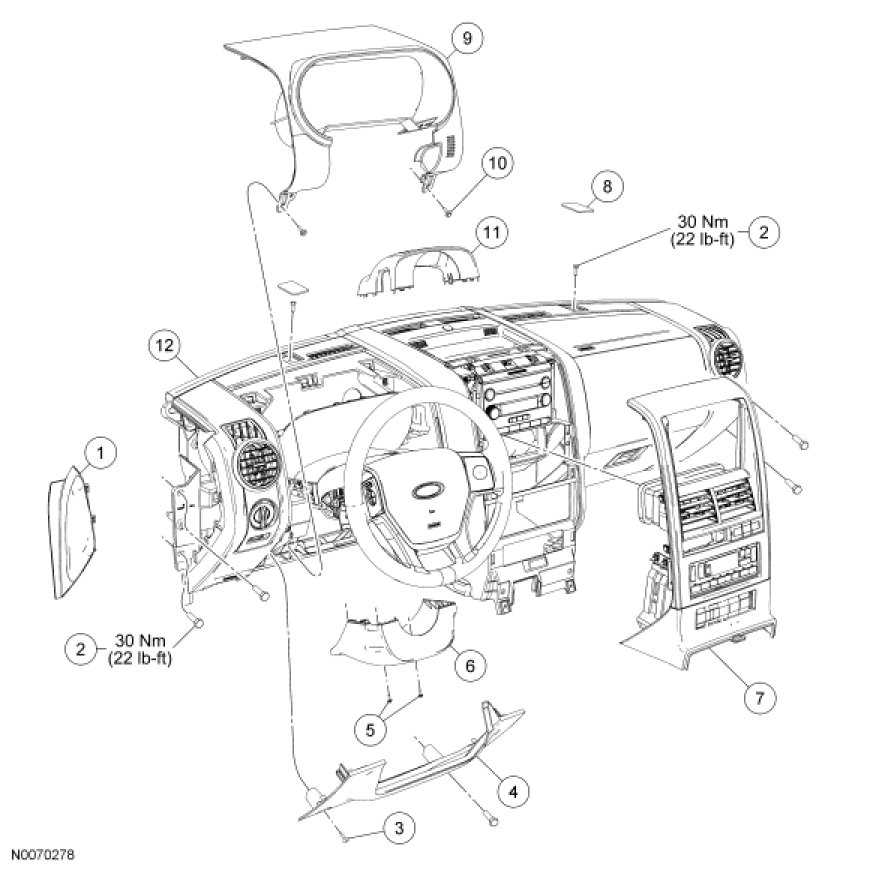

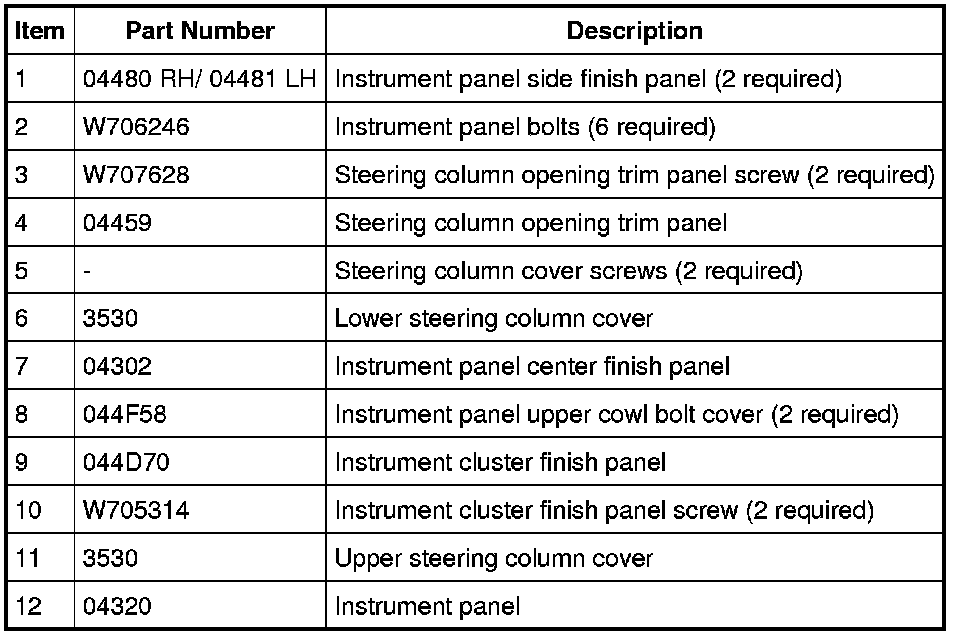

Instrument Panel - Exploded View




Instrument Panel - Exploded View

NOTE: Explorer/Explorer Sport Trac shown, Mountaineer similar.
