Console - Rear, Floor

Console - Rear, Floor

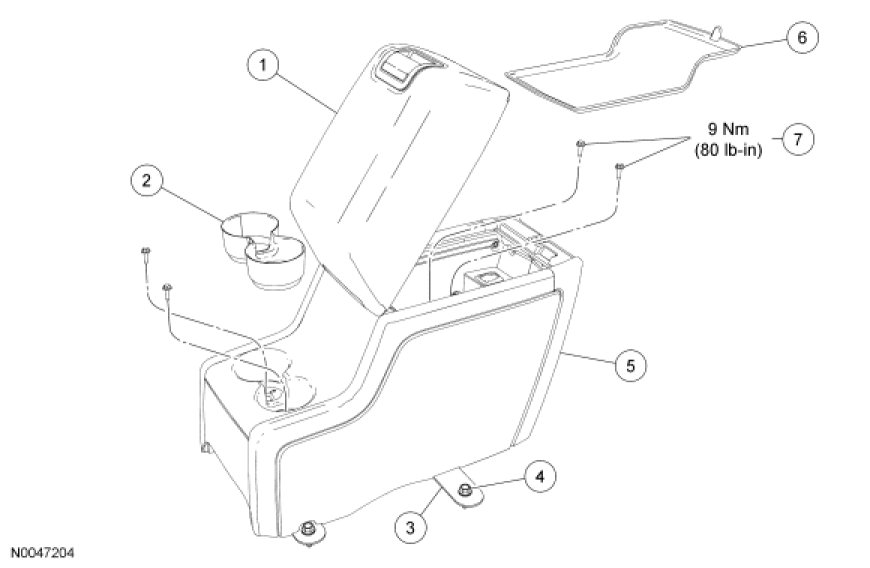

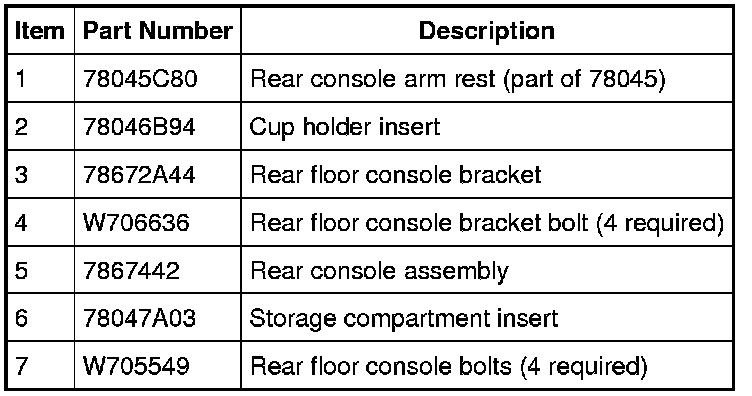

Removal and Installation

NOTE: The rear floor console bracket does not need to be removed to remove the console.

1. Open the armrest and remove the storage compartment insert.

2. Remove the 4 rear floor console bolts.
- To install, tighten to 9 Nm (80 lb-in).

3. NOTICE: To prevent damage to the 2 plastic guide pegs located on the bottom of the console, pull the console straight up when removing.

Disconnect the electrical connector and remove the rear floor console.

4. NOTICE: To prevent damage to the 2 plastic guide pegs located on the bottom of the console, install the console straight down until the pegs are correctly seated in the holes.

To install, reverse the removal procedure.
