Console - Front, Floor

Console - Front, Floor

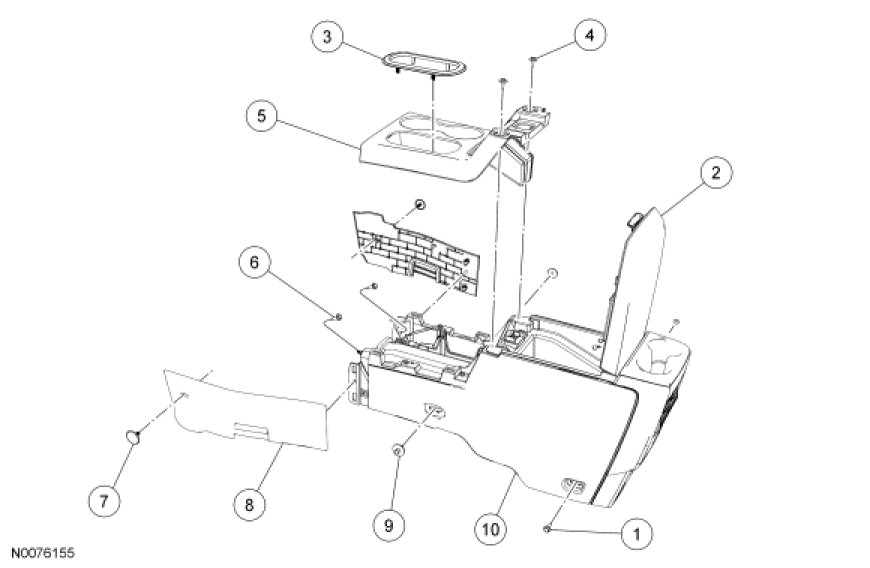

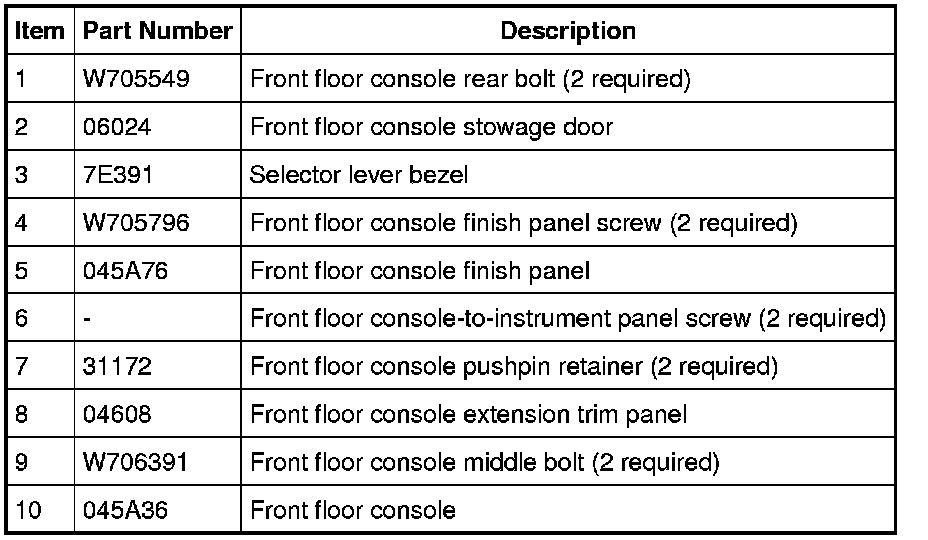

Removal and Installation

1. Move the front seats to the full rearward position.

2. Remove the LH and RH front floor console rear bolts.

3. Position the front seats to the full rearward position.

4. Remove the selector lever bezel.

5. Open and lift the front floor console stowage door upward.

6. Remove the 2 front floor console finish panel screws.

7. Remove the front floor console finish panel.
- Disconnect the electrical connector.

8. Disconnect the front floor console electrical connectors.

9. Remove the 2 front floor console-to-instrument panel screws.

10. Remove the LH and RH front floor console pushpin retainers.

11. Remove the LH and RH front floor console extension trim panels.

12. Remove the LH and RH front floor console middle bolts.

13. Remove the front floor console.
- Pull the front floor console toward the rear of the vehicle.

14. To install, reverse the removal procedures.
- Make sure to align the trim panel retaining clips to the adjacent retaining clip holes.
