Cowl Moulding / Trim: Service and Repair

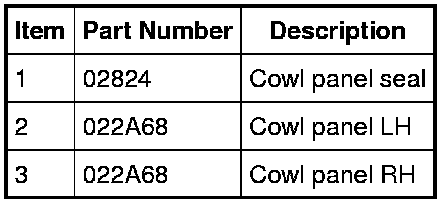

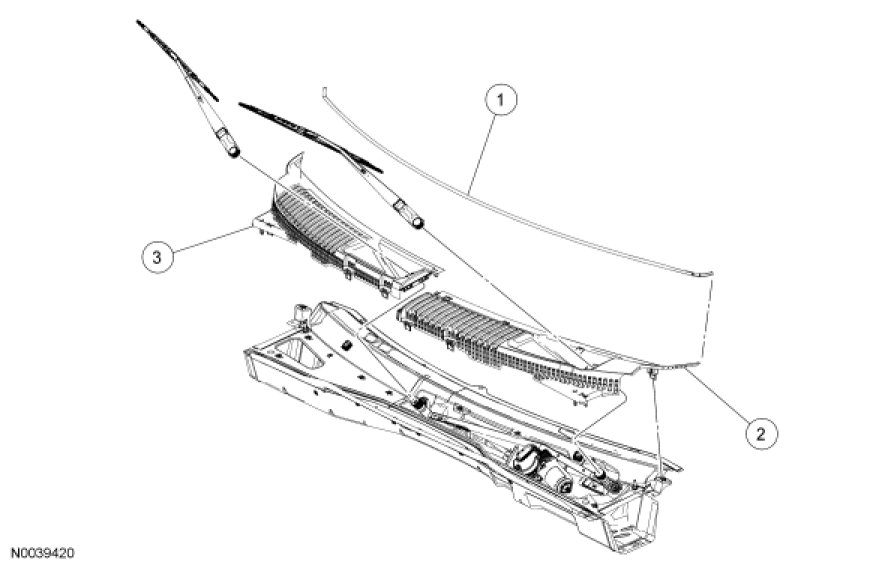

Cowl Panel Grille









1. Remove the wiper pivot arms. For additional information, refer to Wiper and Washer Systems.

NOTICE: To avoid breaking the retaining clips on the cowl panel, do not pull up on the rear of the cowl panel.

2. Pry up on the front of the cowl panel to release it from the retaining clips.

3. Remove the cowl panel grille.

4. Separate the left cowl panel from the right cowl panel by releasing the retaining clips.

5. To install, reverse the removal procedure.
