Trunk / Liftgate Interior Trim Panel: Service and Repair

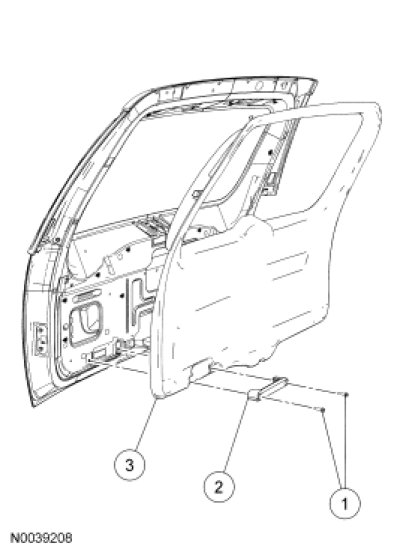

Liftgate Trim Panel









Removal and Installation

1. Remove the 2 liftgate grab handle screws.

2. Remove the liftgate grab handle.

3. NOTICE: To avoid damaging the trim panel, do not pull the bottom of the panel outward.

Lift the liftgate trim panel by lifting upward to disengage the clips and remove the panel.

- Disconnect the liftgate trim panel electrical connector.

4. To install, reverse the removal procedure.
