A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P1101
>>
PC/ED
PC/ED

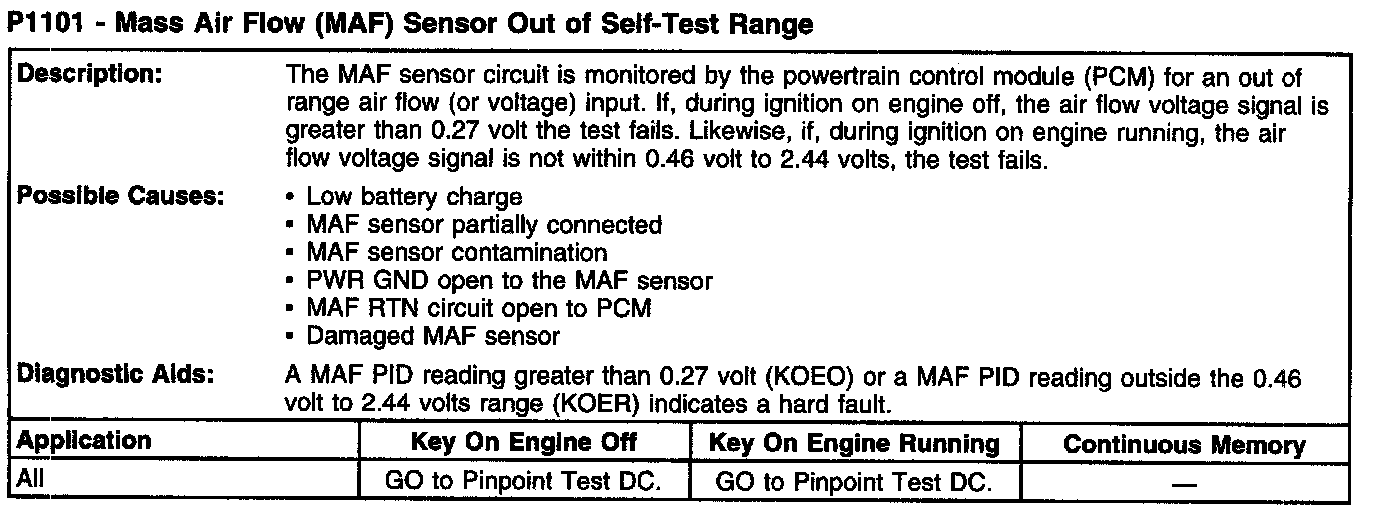

P1101 - Mass Air Flow (MAF) Sensor Out Of Self-Test Range:
