Home >> Ford Truck >> 2010 >> Escape 2WD L4-2.5L Hybrid >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Alignment Specifications

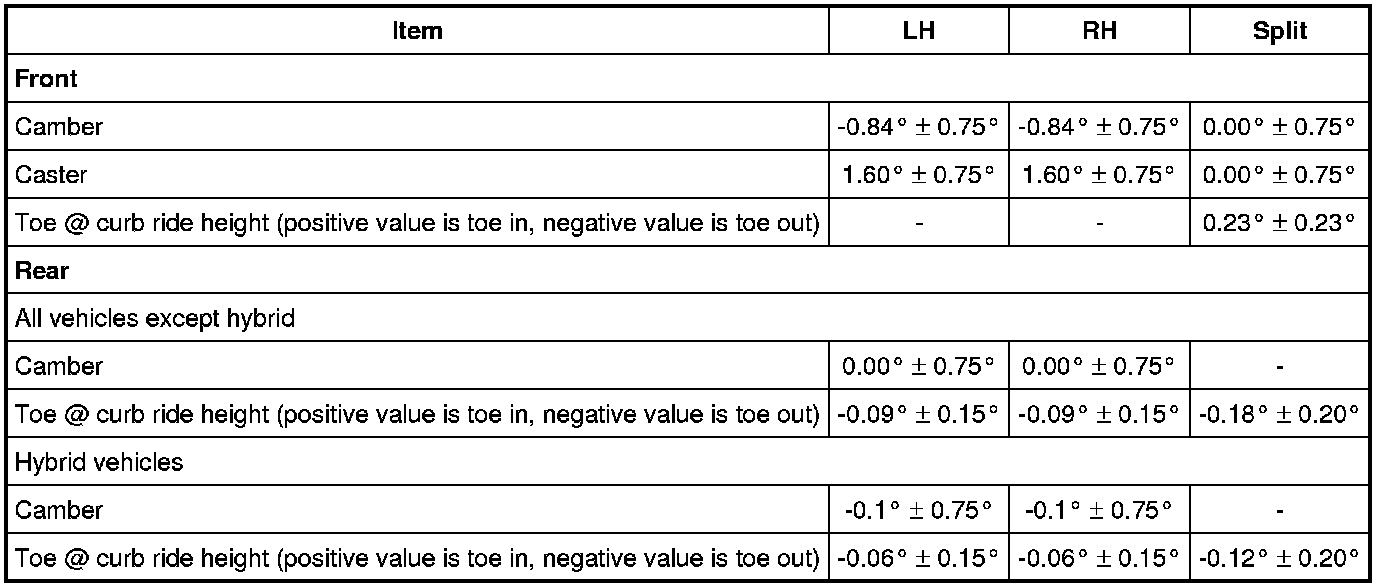

Alignment Specifications




Alignment Specifications

NOTE: All alignment specifications are with the vehicle fuel tank full.
