QT : Powertrain Control Module (PCM)/Transaxle Control Module (TCM) Quick Test
QT : Powertrain Control Module (PCM)/Transaxle Control Module (TCM) Quick Test
QT : POWERTRAIN CONTROL MODULE (PCM)/TRANSAXLE CONTROL MODULE (TCM) QUICK TEST

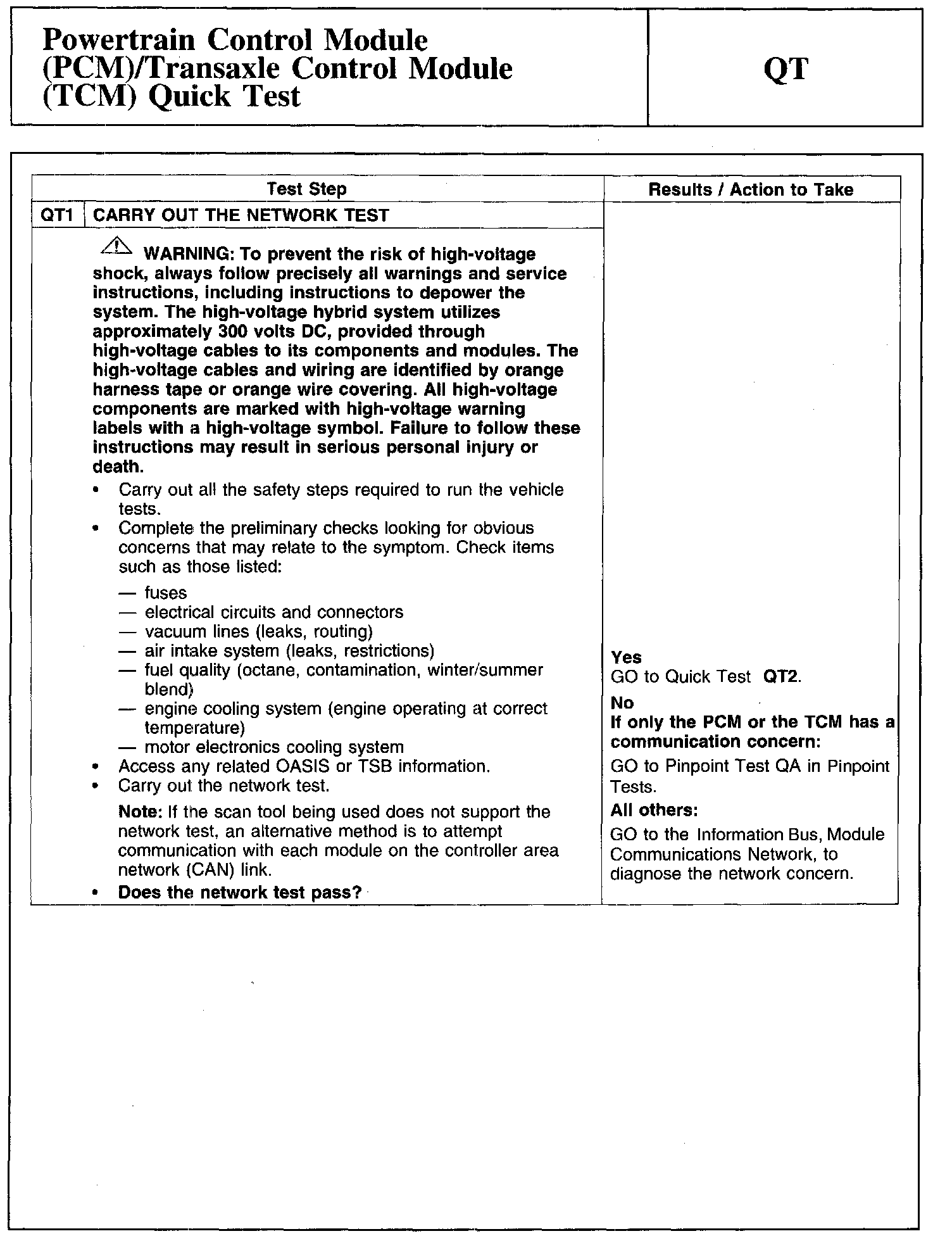

QT1:

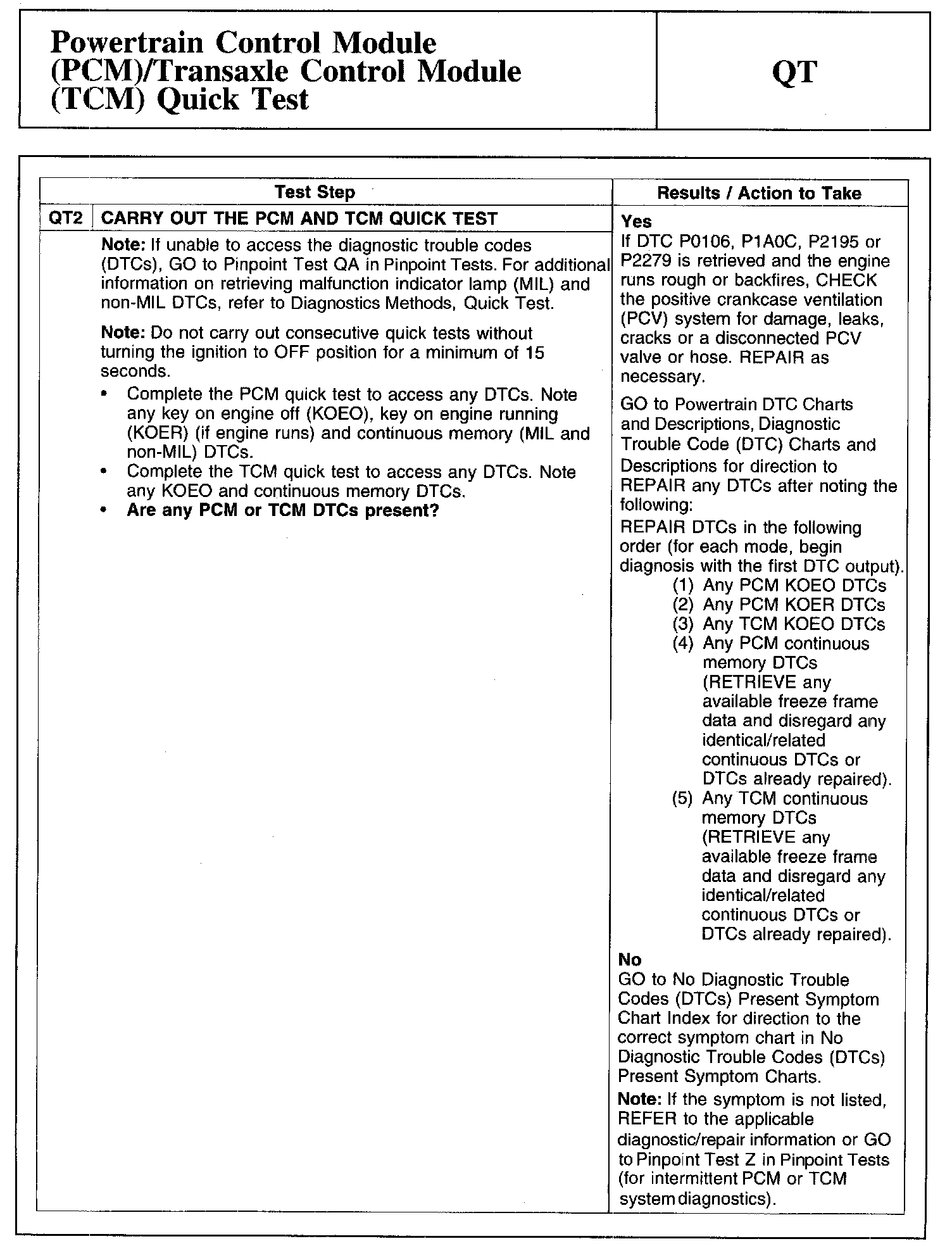

QT2:
