Fuel Tank and Filler Pipe - Exploded View

Fuel Tank and Filler Pipe - Exploded View

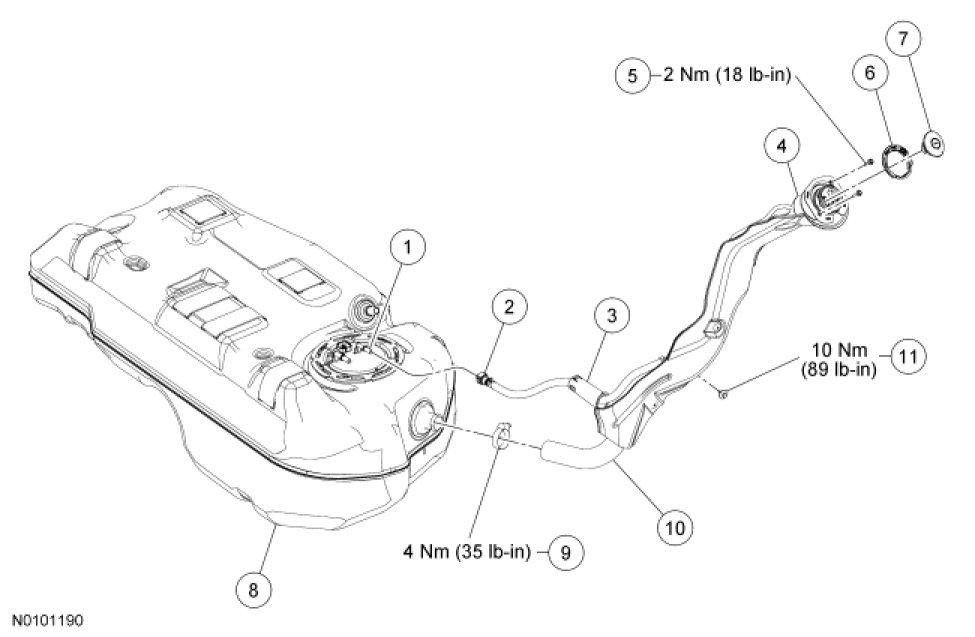

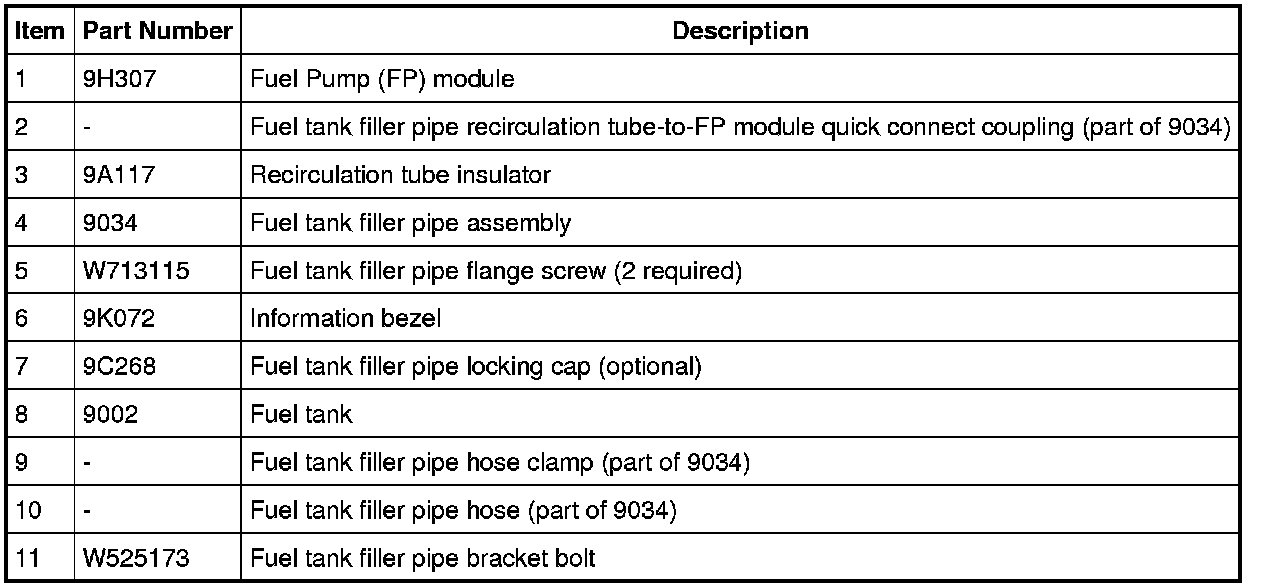

Fuel Tank Filler Pipe Assembly

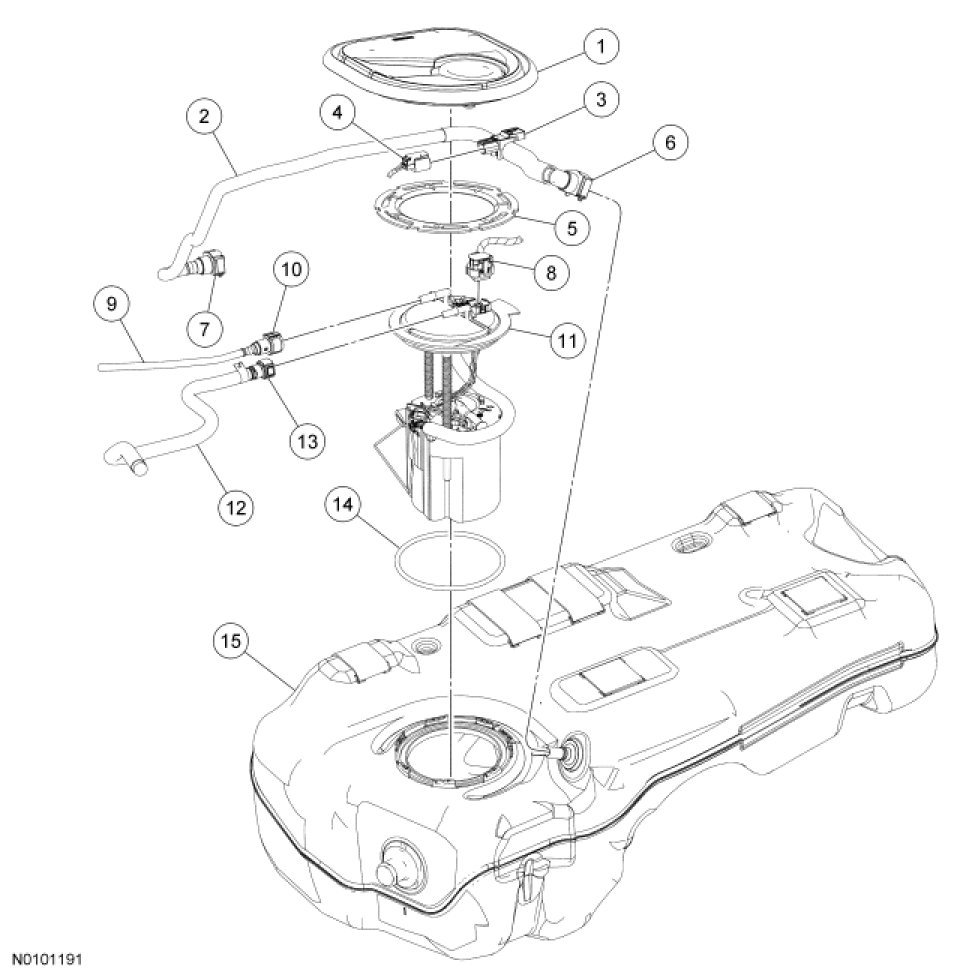

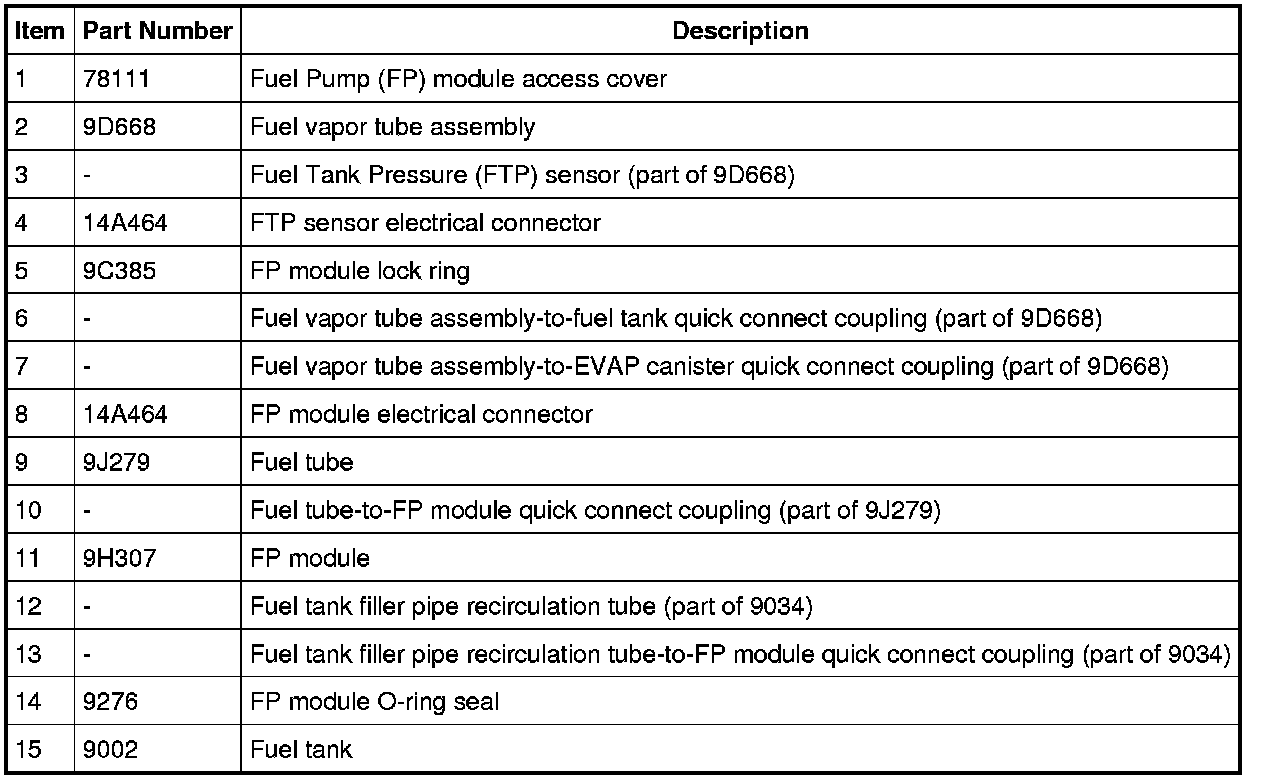

Fuel Tank and Fuel Pump (FP) Module

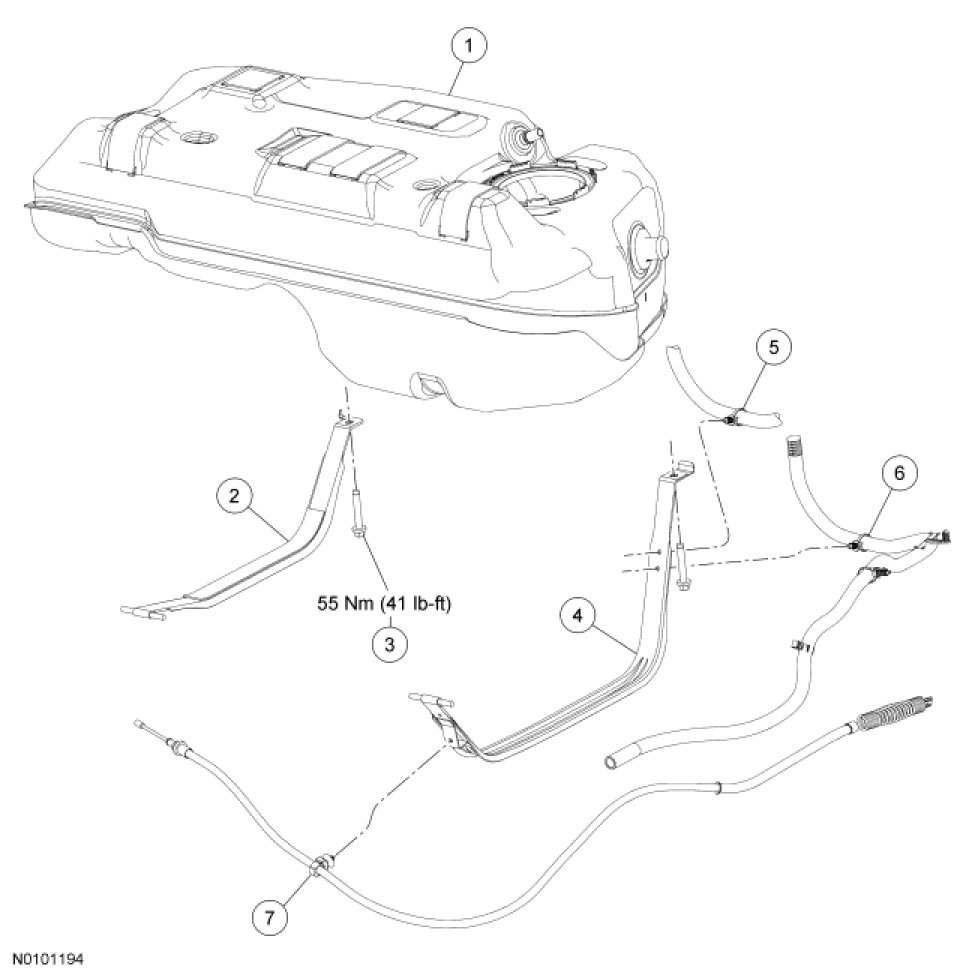

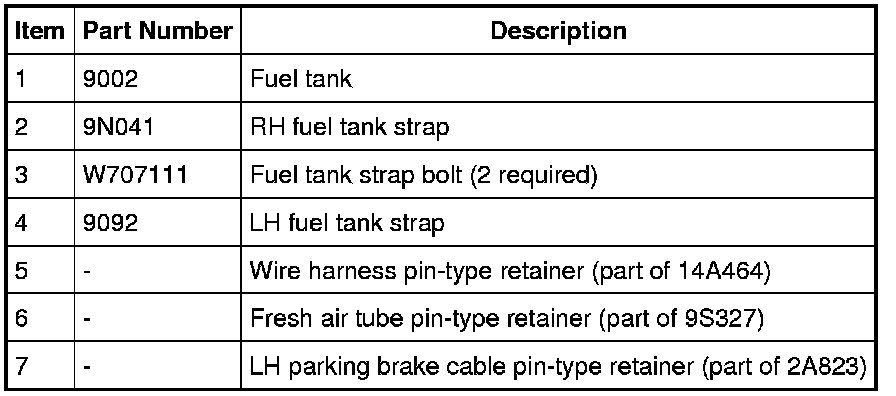

Fuel Tank Supports
