Air Filter Element

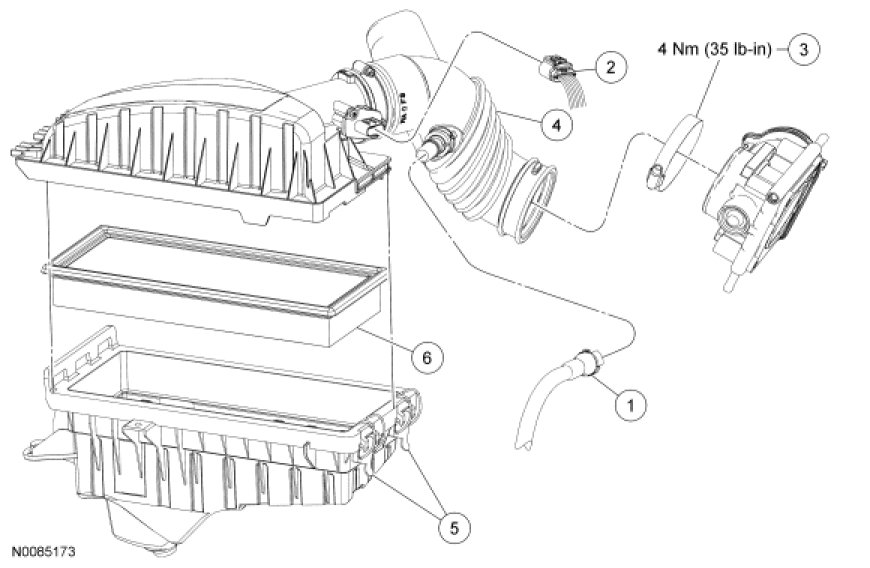

Intake Air System Components - Exploded View

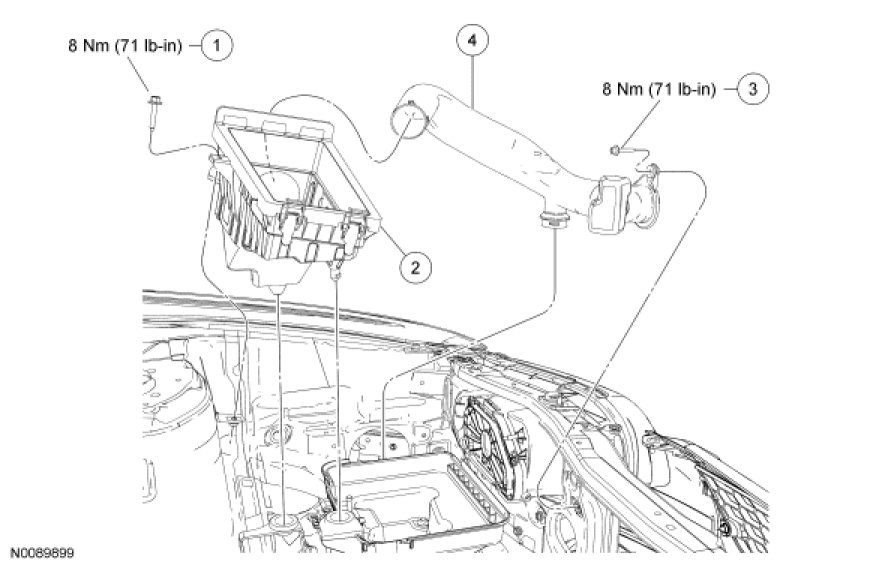

Air Cleaner (ACL) Assembly and Outlet Pipe

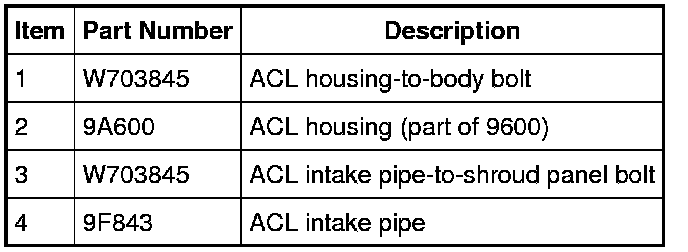

Air Cleaner (ACL) Intake Pipe

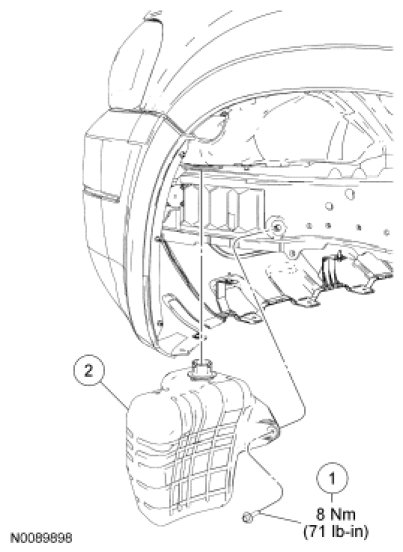

Intake Air Resonator
