Intake Manifold

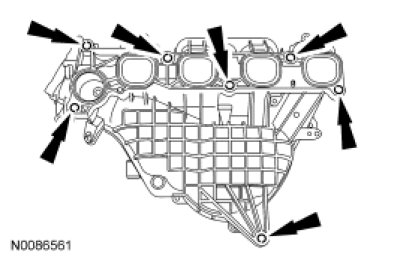

Install the intake manifold gasket, intake manifold and 7 bolts.
Tighten to 18 Nm (159 lb-in).
