Ignition Cable: Service and Repair

REMOVAL

CAUTION: Do not pull on the spark plug wire as it may separate from the spark plug wire connector inside the spark plug wire boot.

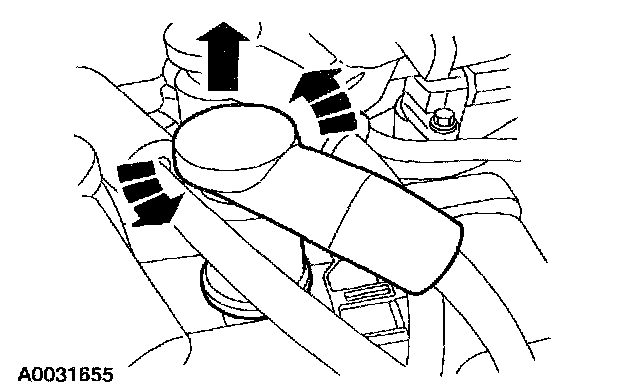

1. Remove the spark plug wire by slightly twisting while pulling upwards.

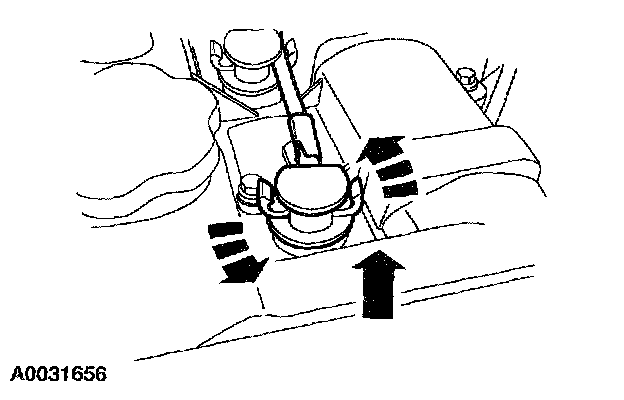

2. Remove the spark plug wire by slightly twisting while pulling upwards.

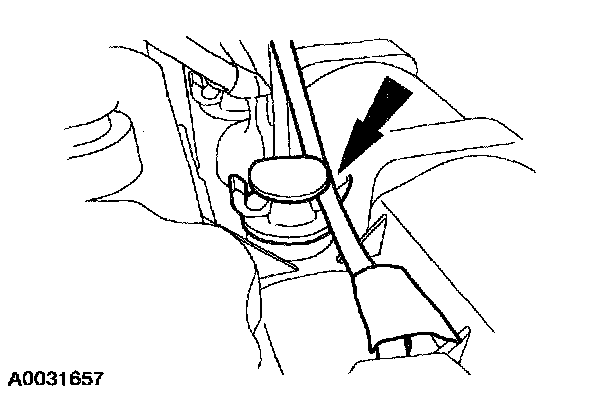

3. Disconnect the spark plug wire if routed through another spark plug wire.

INSTALLATION







1. To install, reverse the removal procedure.

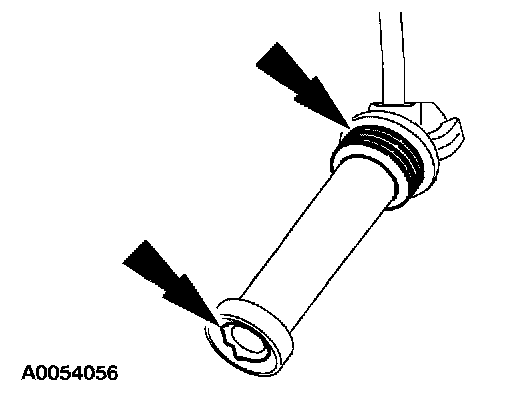

^ Apply silicone dielectric compound to the locations shown.
