FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2003
>>
Ranger 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test G
Test G
PINPOINT TEST G: NO MODULE / NETWORK COMMUNICATION - ISO 9141 NETWORK

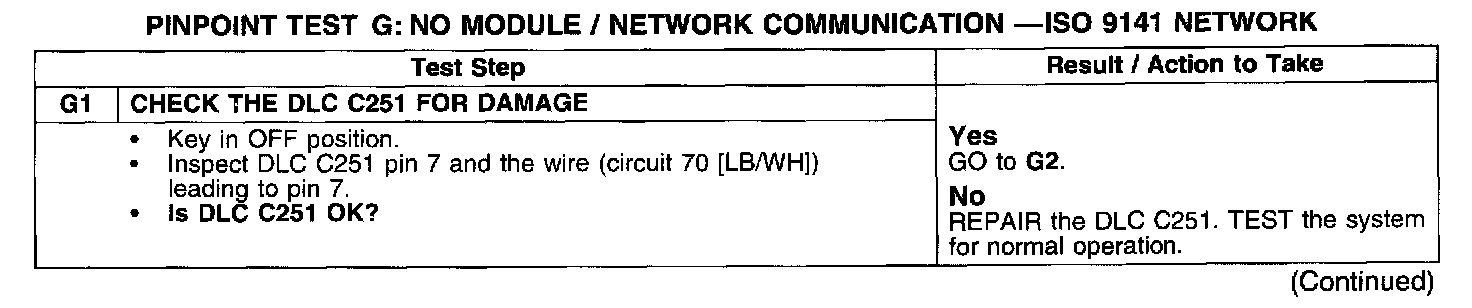

Test G1:

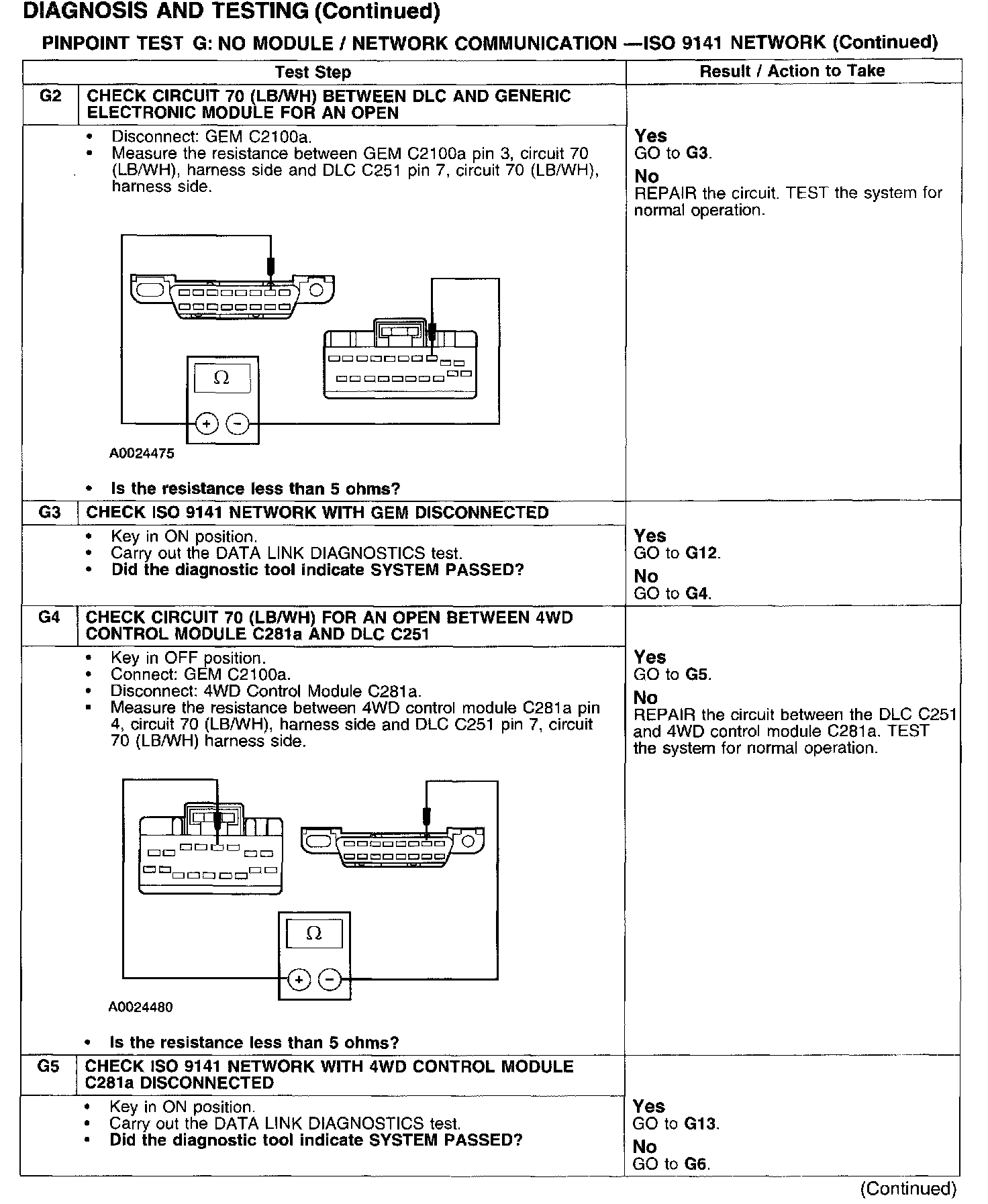

Test G2-G5:

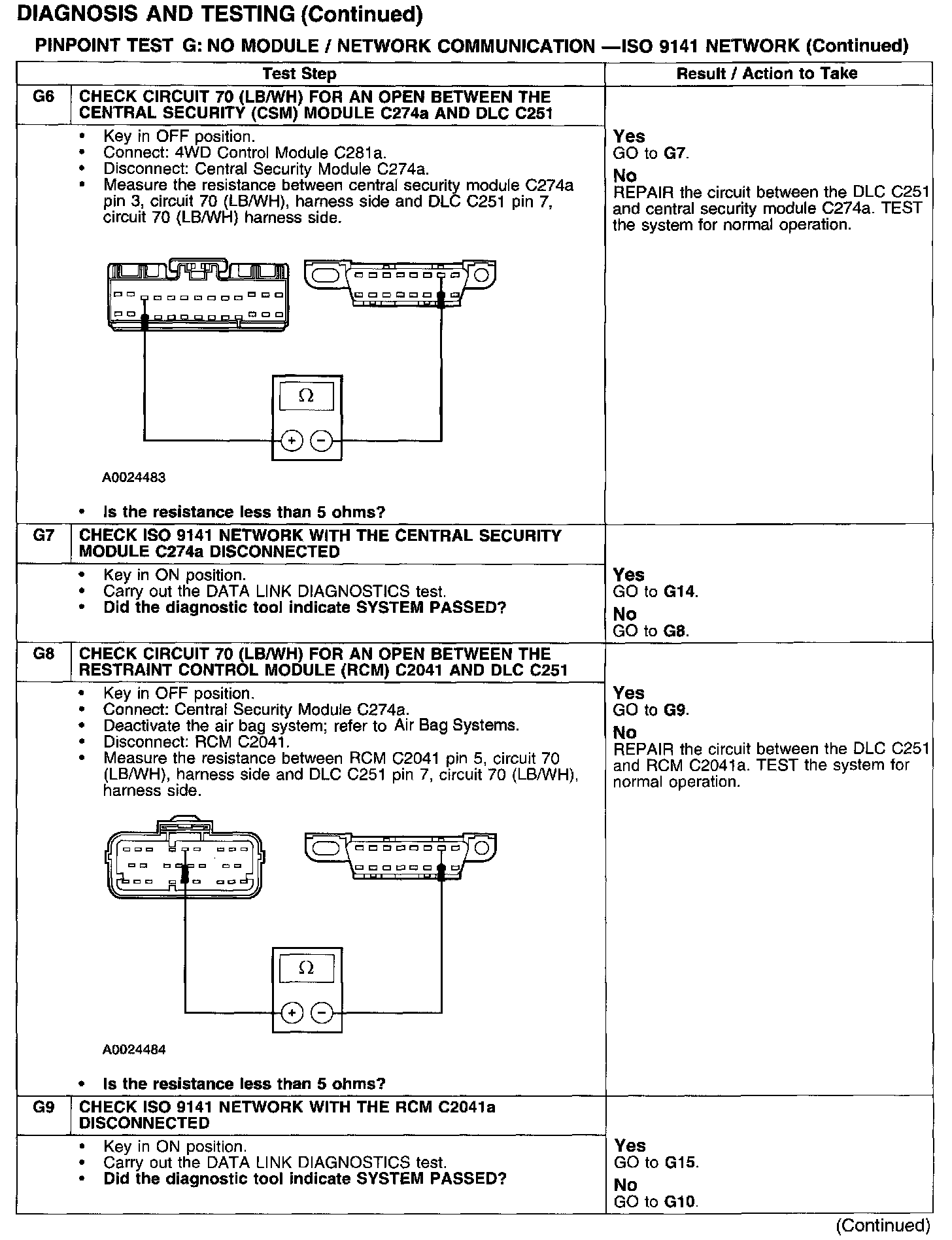

Test G6-G9:

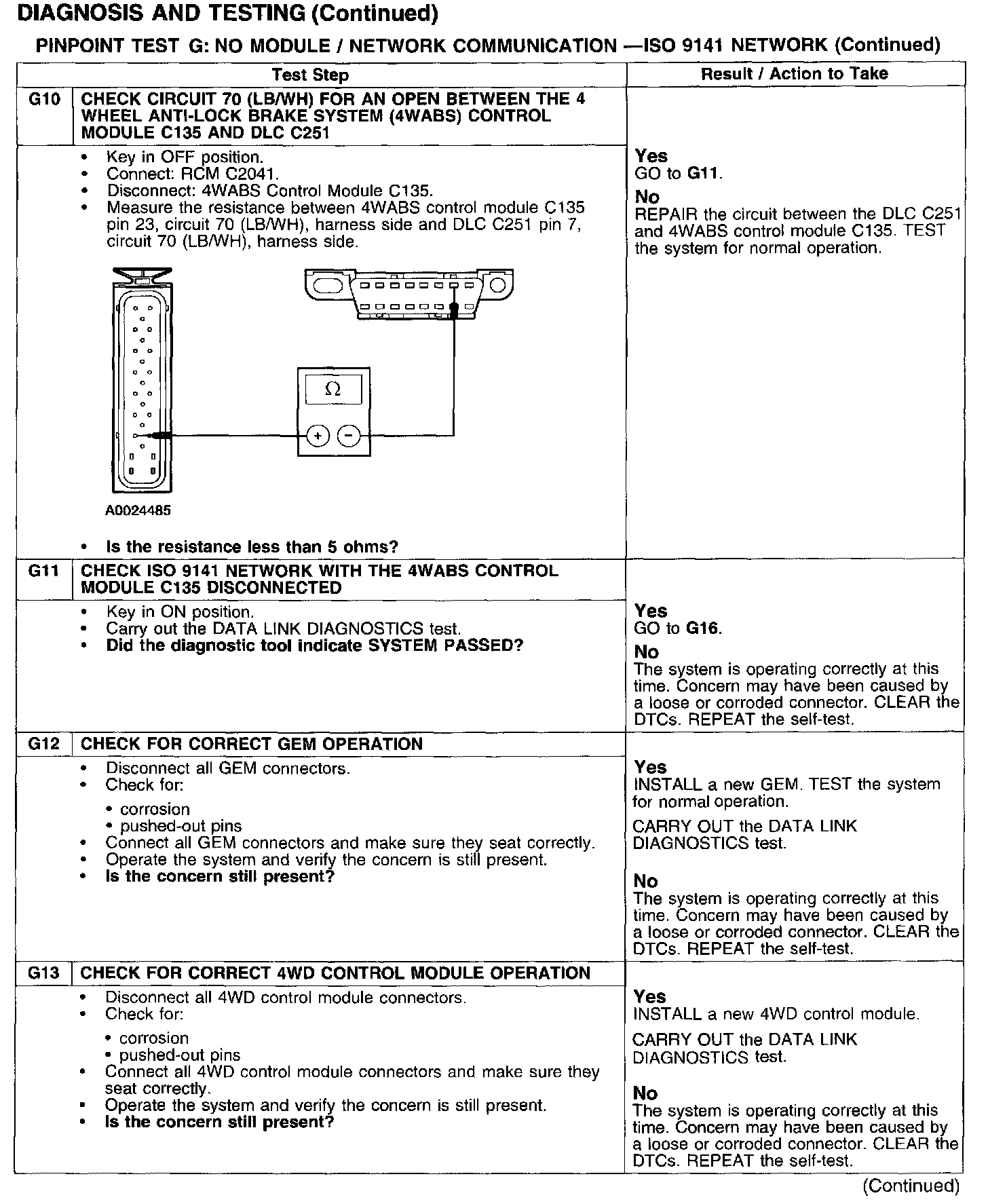

Test G10-G13:

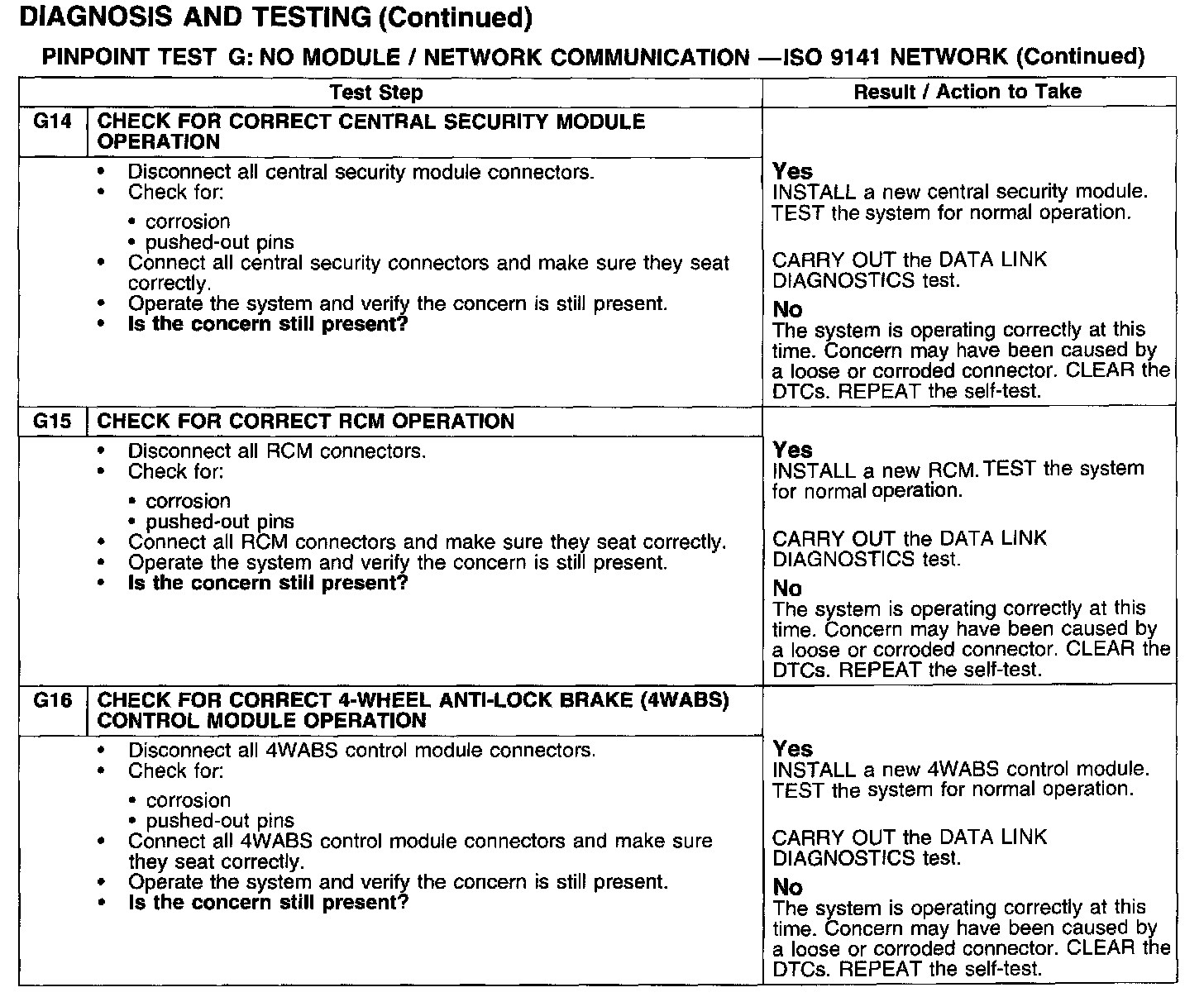

Test G14-G16:
