Test F
Test F
PINPOINT TEST F: THE FOUR WHEEL DRIVE (4WD) CONTROL MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

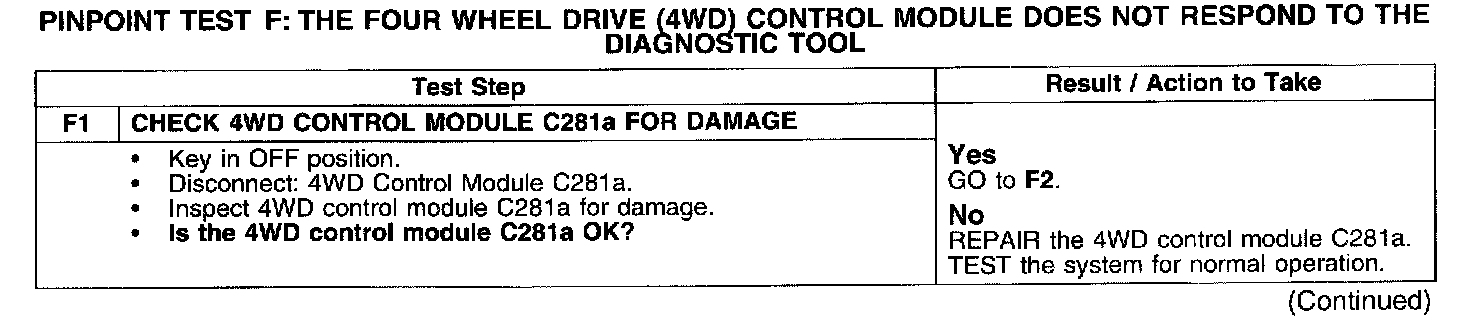

Test F1:

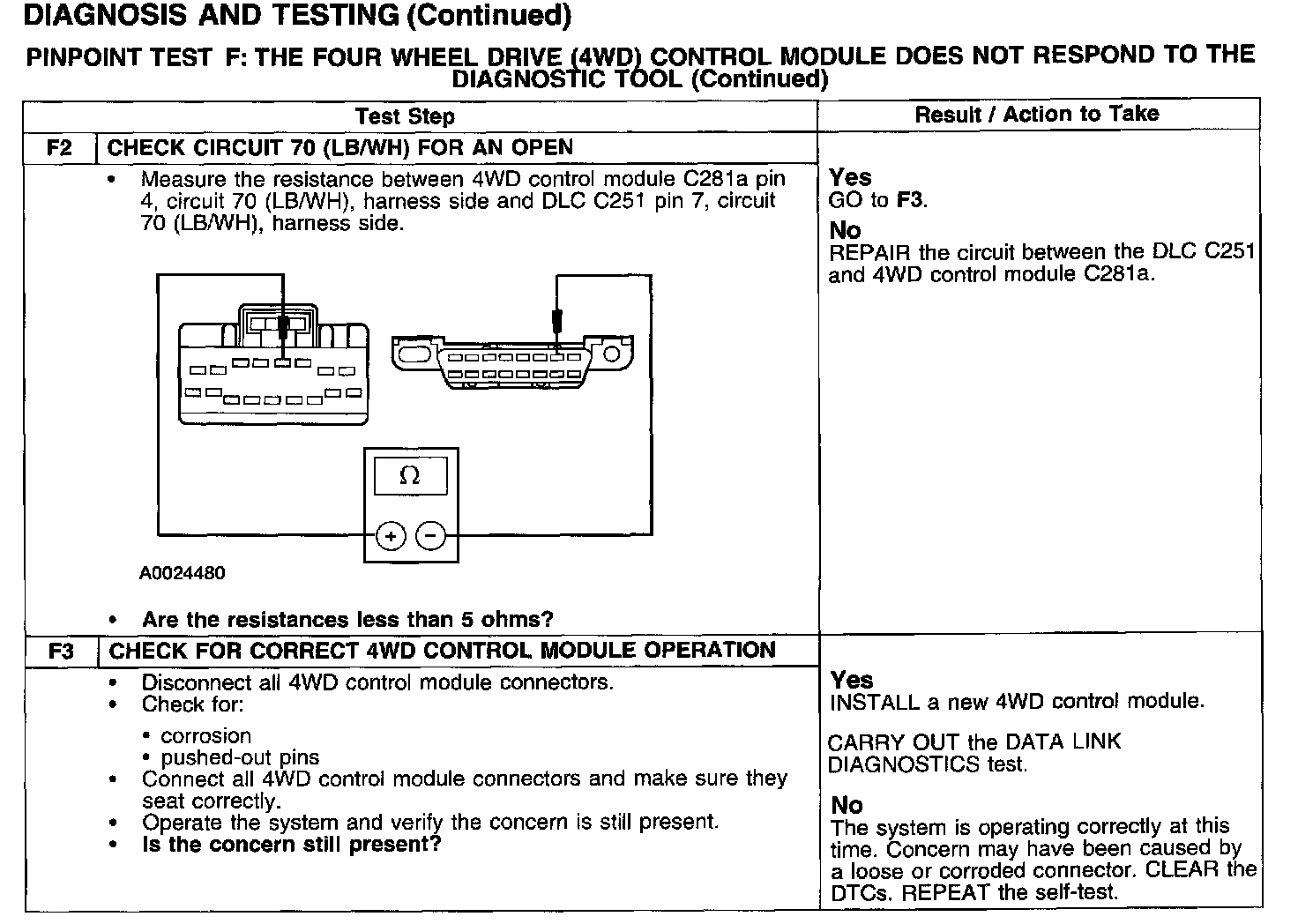

Test F2-F3:
