FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2003
>>
Ranger 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test D
Test D
PINPOINT TEST D: THE CENTRAL SECURITY MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

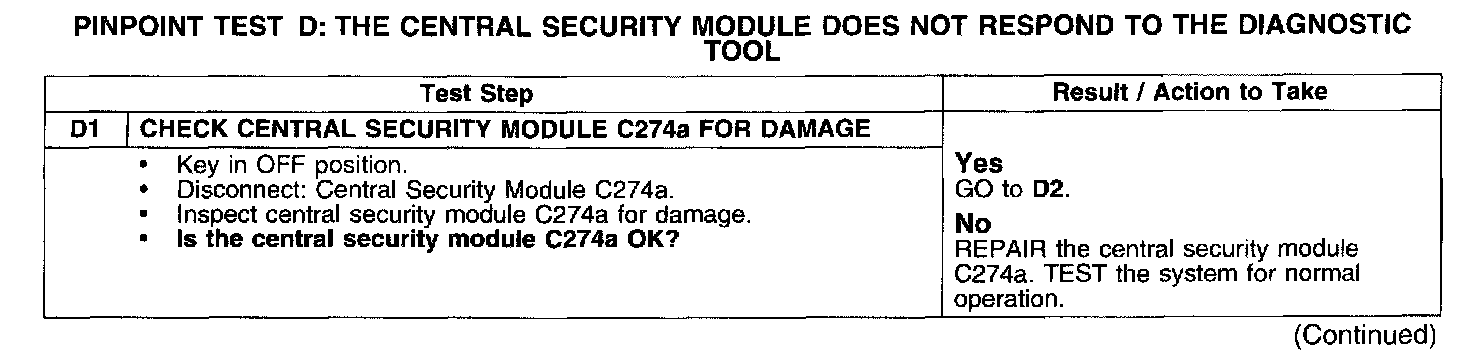

Test D1:

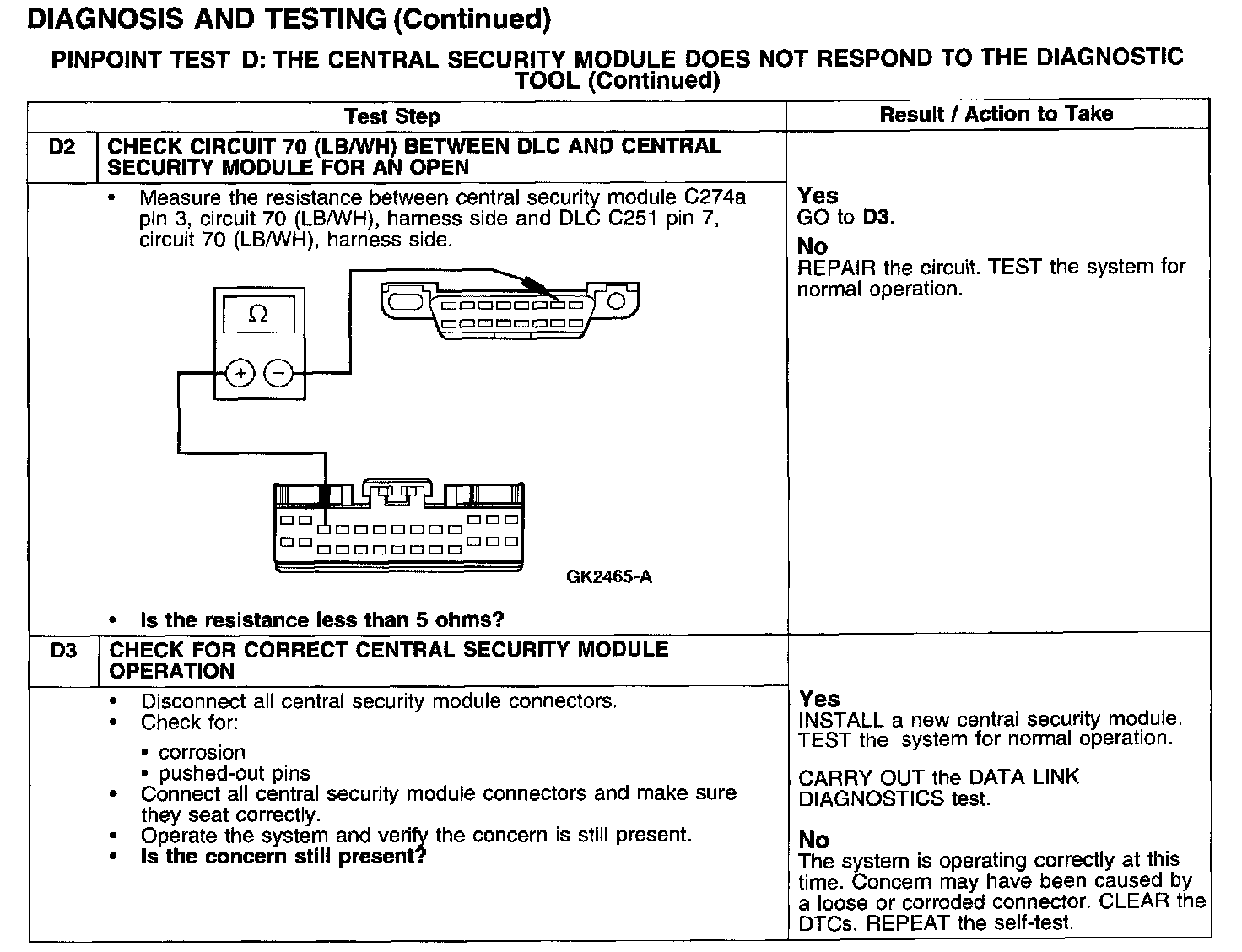

Test D2-D3:
