Pinpoint Test PC (Precheck)

PINPOINT TEST PC: DATA LINK DIAGNOSTICS TEST

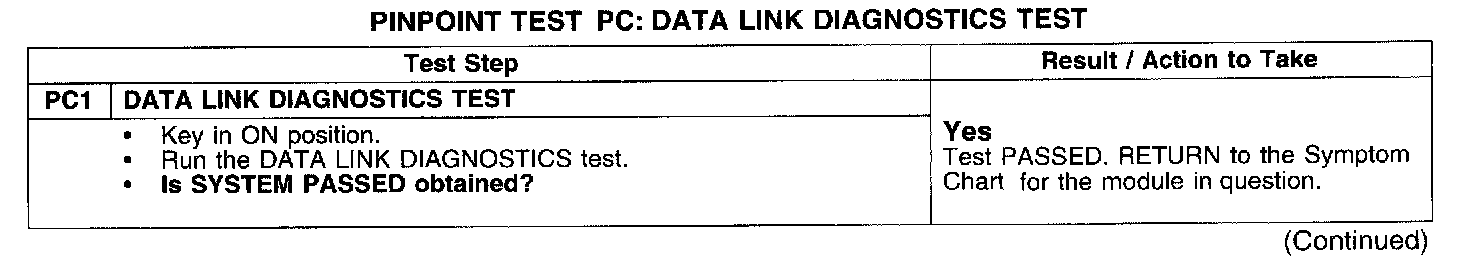

Test PC1:

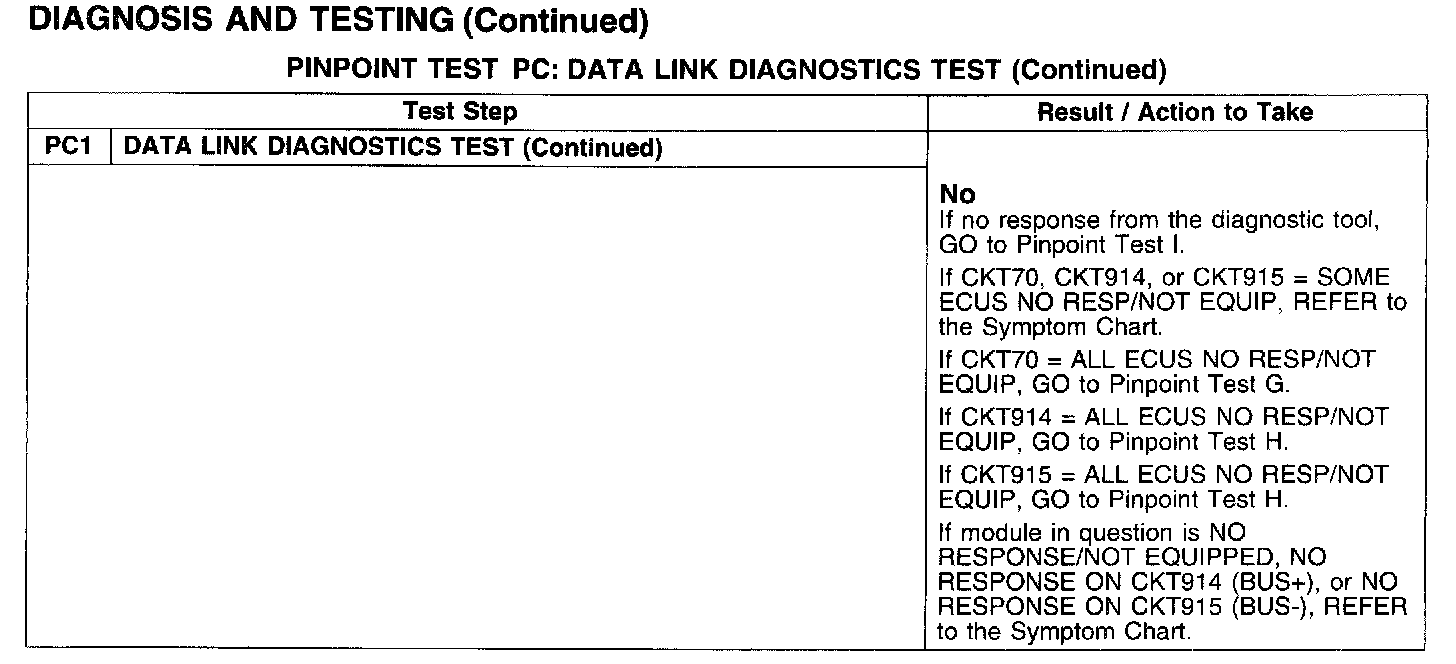

Test PC1 Continued:
