Variable Induction Control Valve



Intake Manifold Swirl Control (IMSC) Vacuum Actuated System

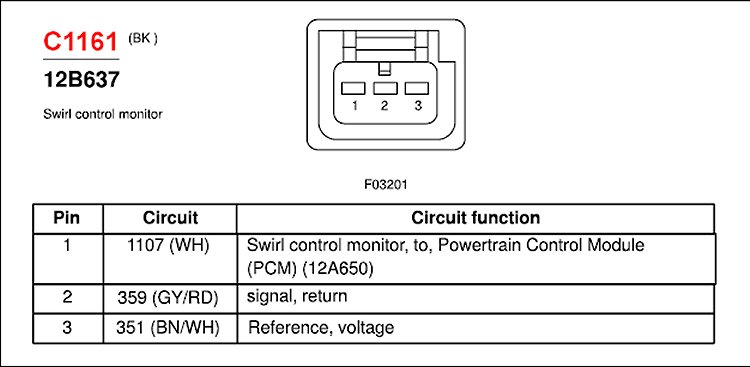

Swirl Control Monitor

C1161:

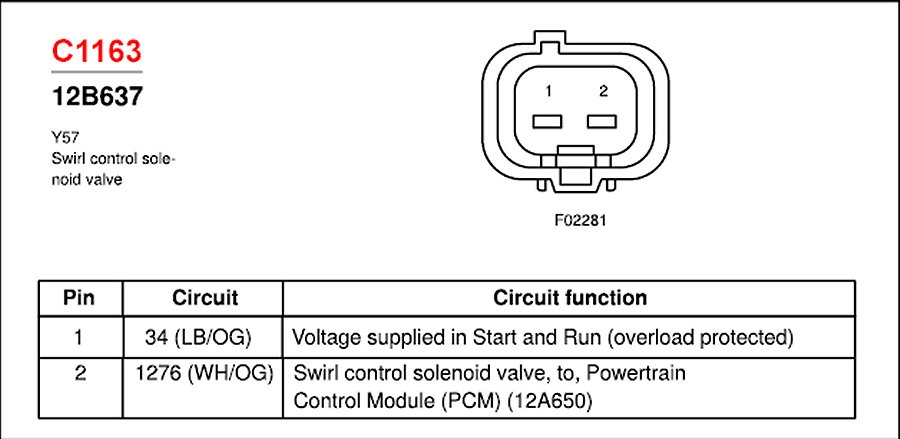

Swirl Control Solenoid Valve


C1163:
