Leakage Inspection

Leakage Inspection

CAUTION: Do not try to stop the fluid leak by increasing the torque beyond specifications. This may cause damage to the case threads.

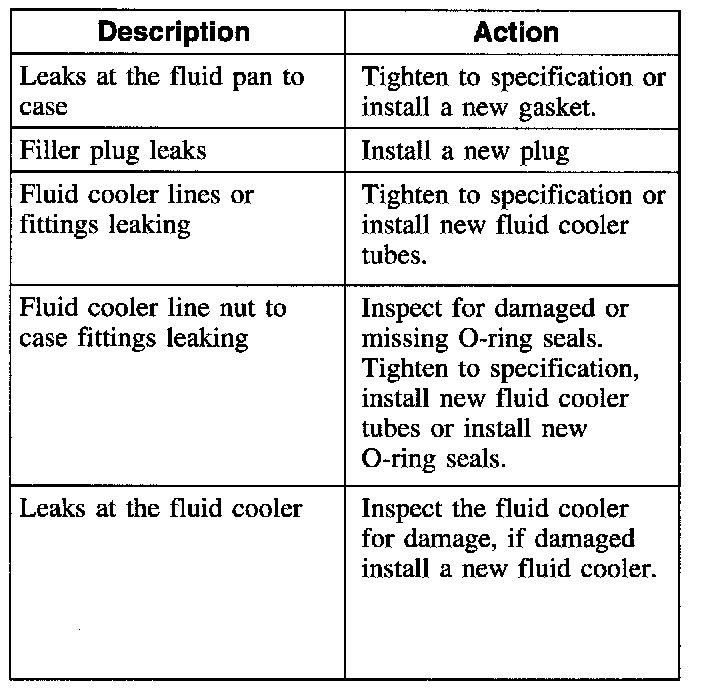

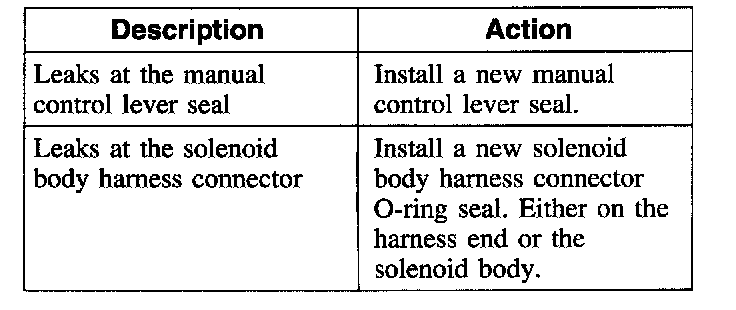

Use the following chart to inspect and correct any external transmission fluid leaks.








External Fluid Leaks

External Sealing
The transmission has the following parts to prevent external fluid leakage:
^ gaskets
^ lip-type seals
^ O-ring seals
^ seal rings
^ seal grommets
^ thread sealant

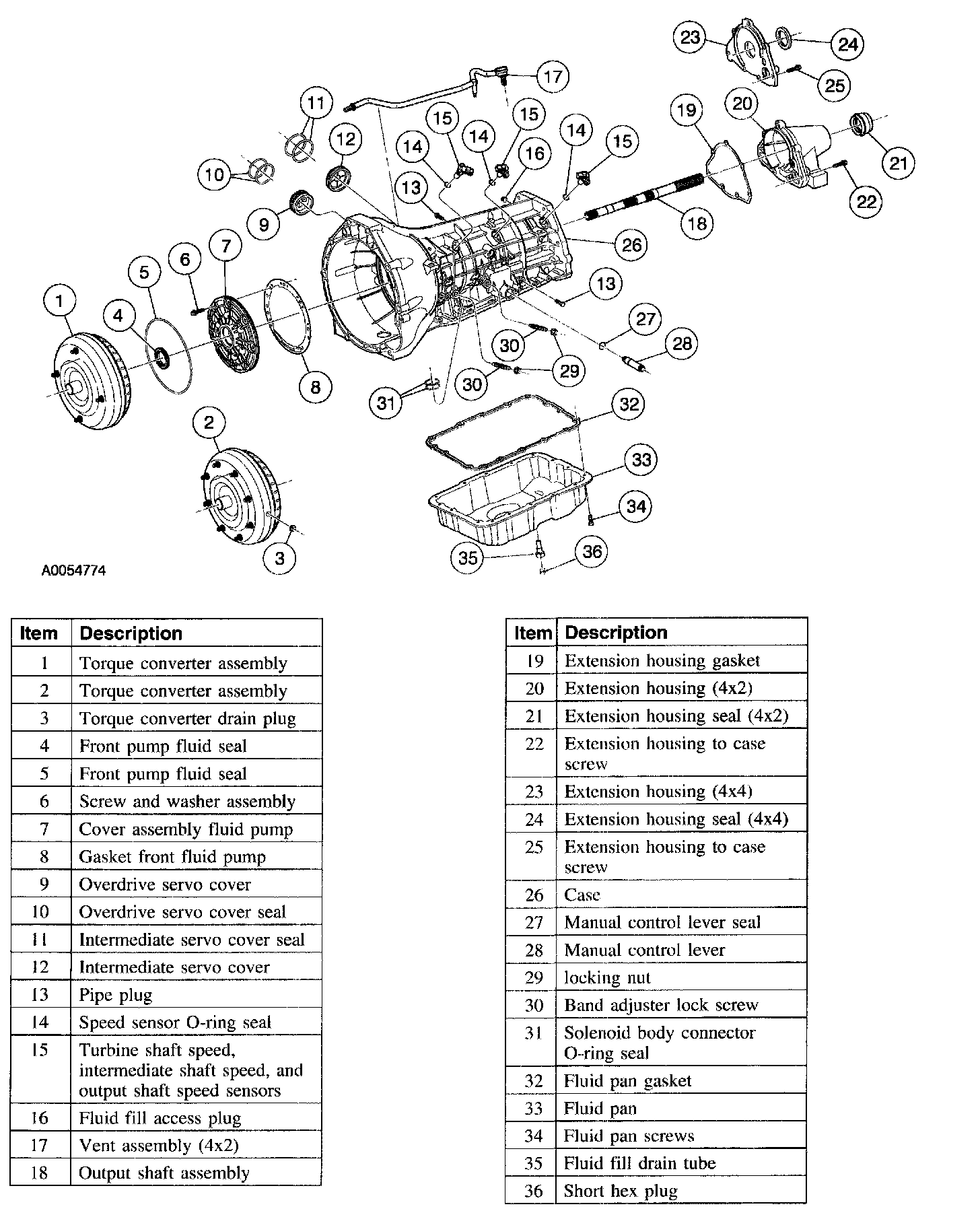

External Sealing
