Band Apply Servo: Service and Repair

Reverse Servo Assembly

NOTE: The transmission fluid pan gasket is reusable. Clean and inspect for damage. If not damaged, the gasket should be reused.

1. With the vehicle in PARK, position on a hoist.

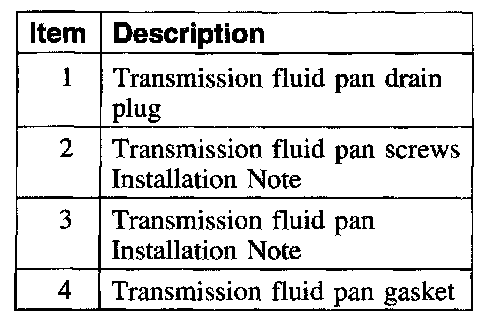

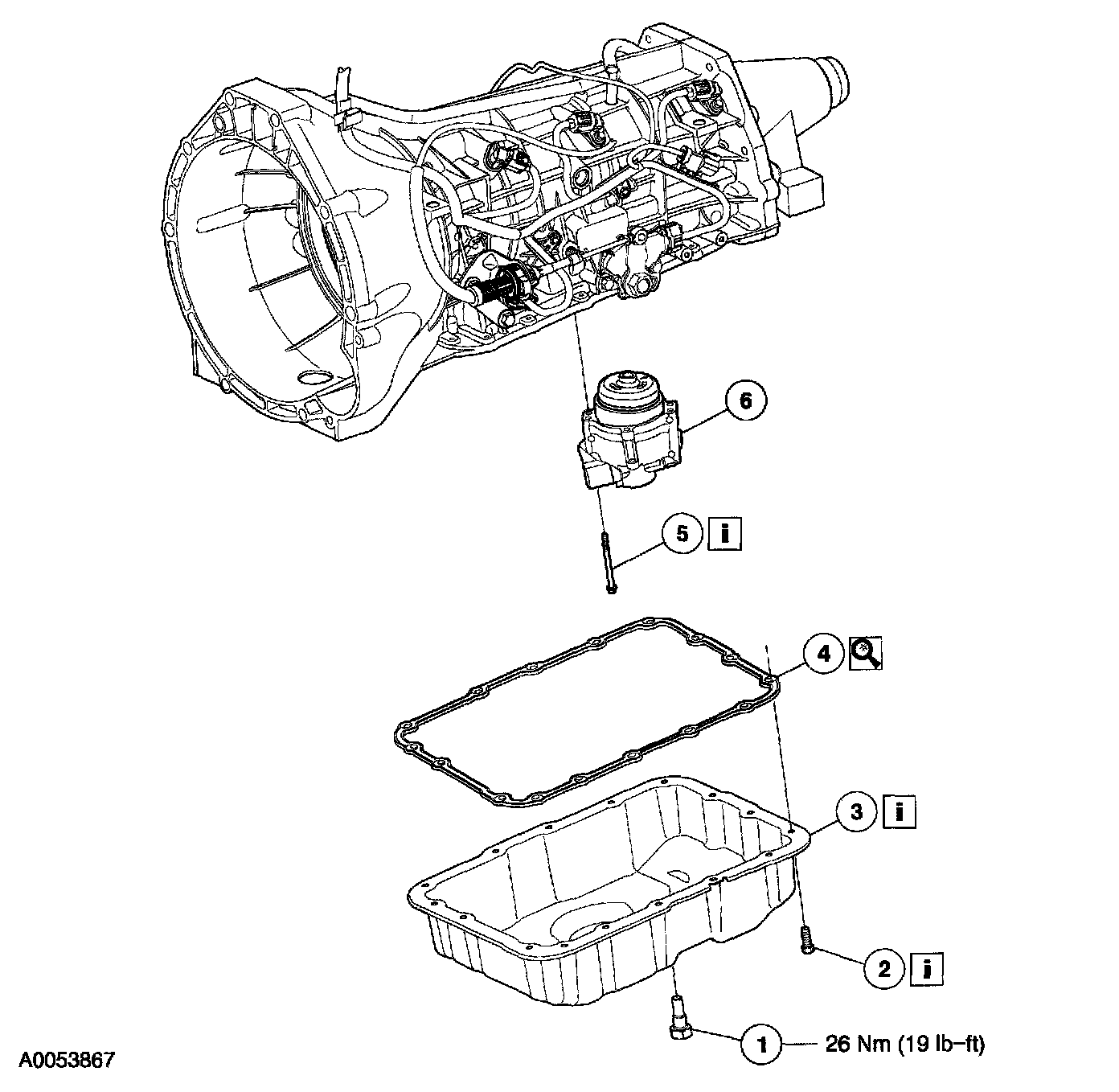

2. Remove the components in the order indicated in the illustration and table.











3. To install, reverse the removal procedure.
4. Partially fill the transmission.

Item 5: Reverse Servo Screws Installation Note





1. Install the reverse servo. Tighten the screws in the sequence shown in two stages.
^ Stage 1: Tighten screws to 5 Nm(44 inch lbs.)
^ Stage 2: Tighten screws to 11 Nm (8 ft. lbs.)

Item 3: Transmission Fluid Pan Installation Note





1. Install the transmission fluid pan and gasket, and loosely install the screws.

Item 2: Transmission Fluid Pan Screws Installation Note





1. Tighten the screws in a crisscross sequence.
