Front

Stabilizer Bar and Link-Front

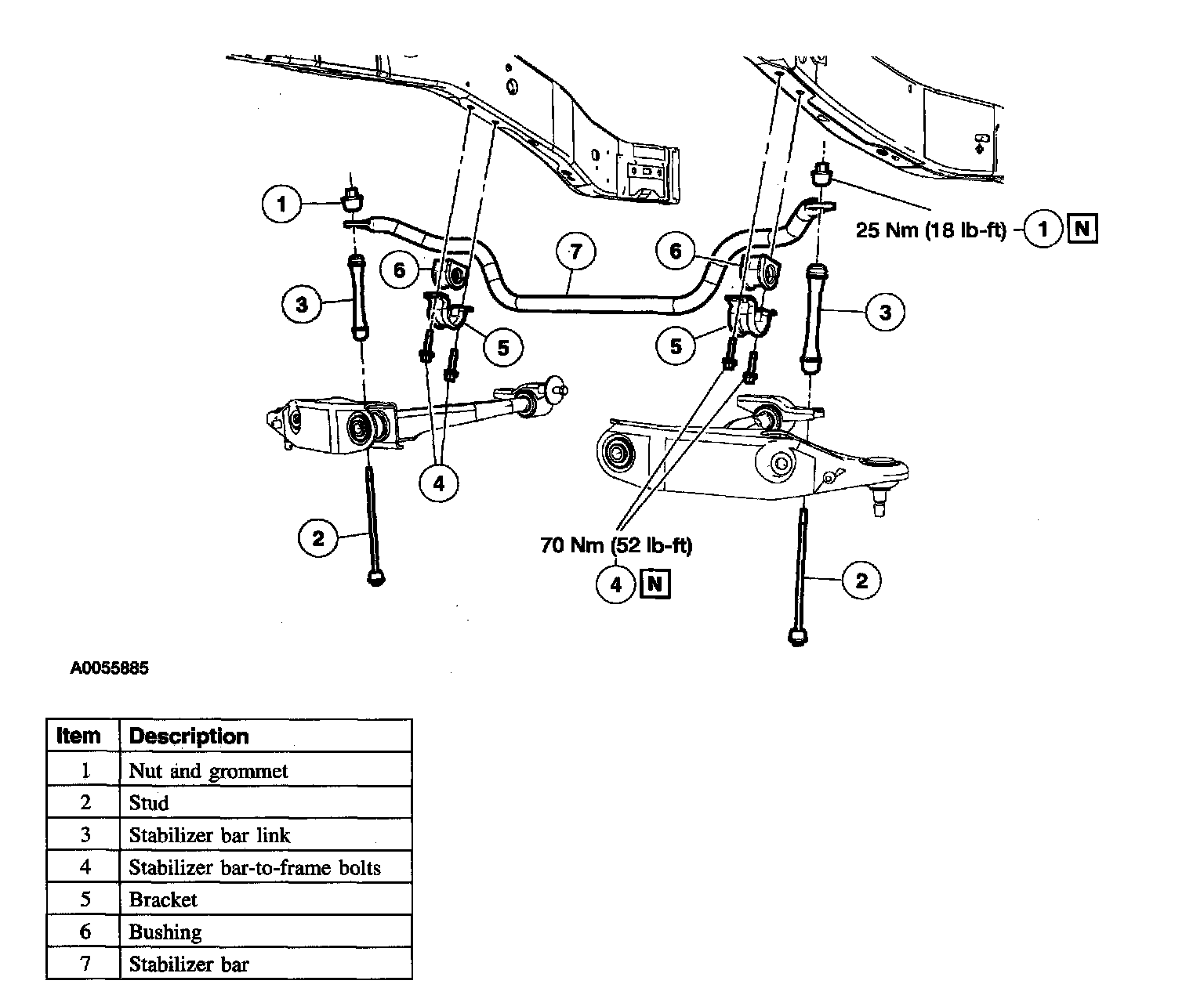

1. Remove the components in the order indicated in the following illustration and table.





2. To install, reverse the removal procedure.
