Parking Assist Switch: Service and Repair

PARKING AID SWITCH

REMOVAL
1. Remove the instrument cluster finish panel.

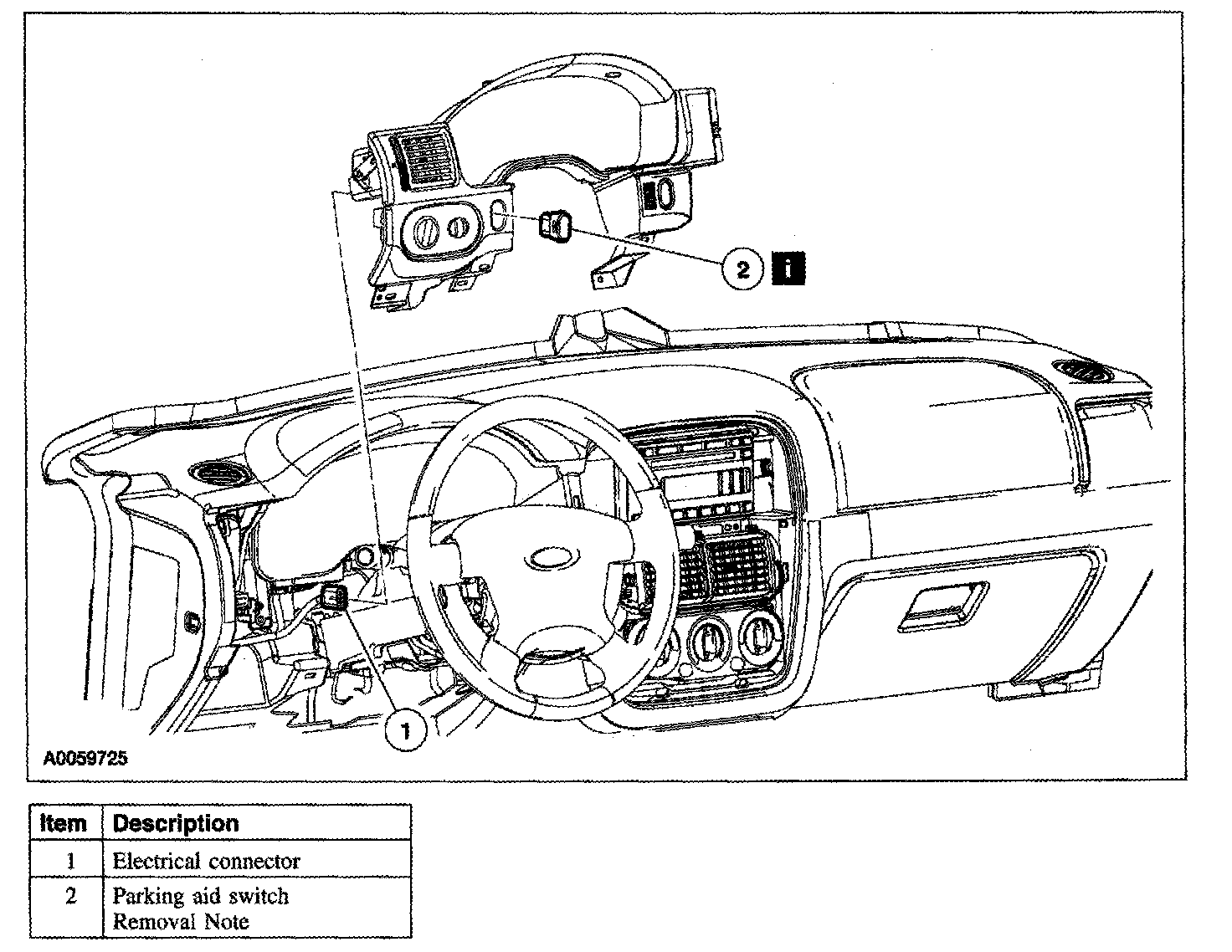

2. Remove the components in the order indicated in the illustration and table.

Item 2: Parking Aid Switch Removal Note
1 Press the retaining tabs to remove the parking aid switch.

INSTALLATION
1. Install in the reverse order of removal.
