Marker Lamp: Service and Repair

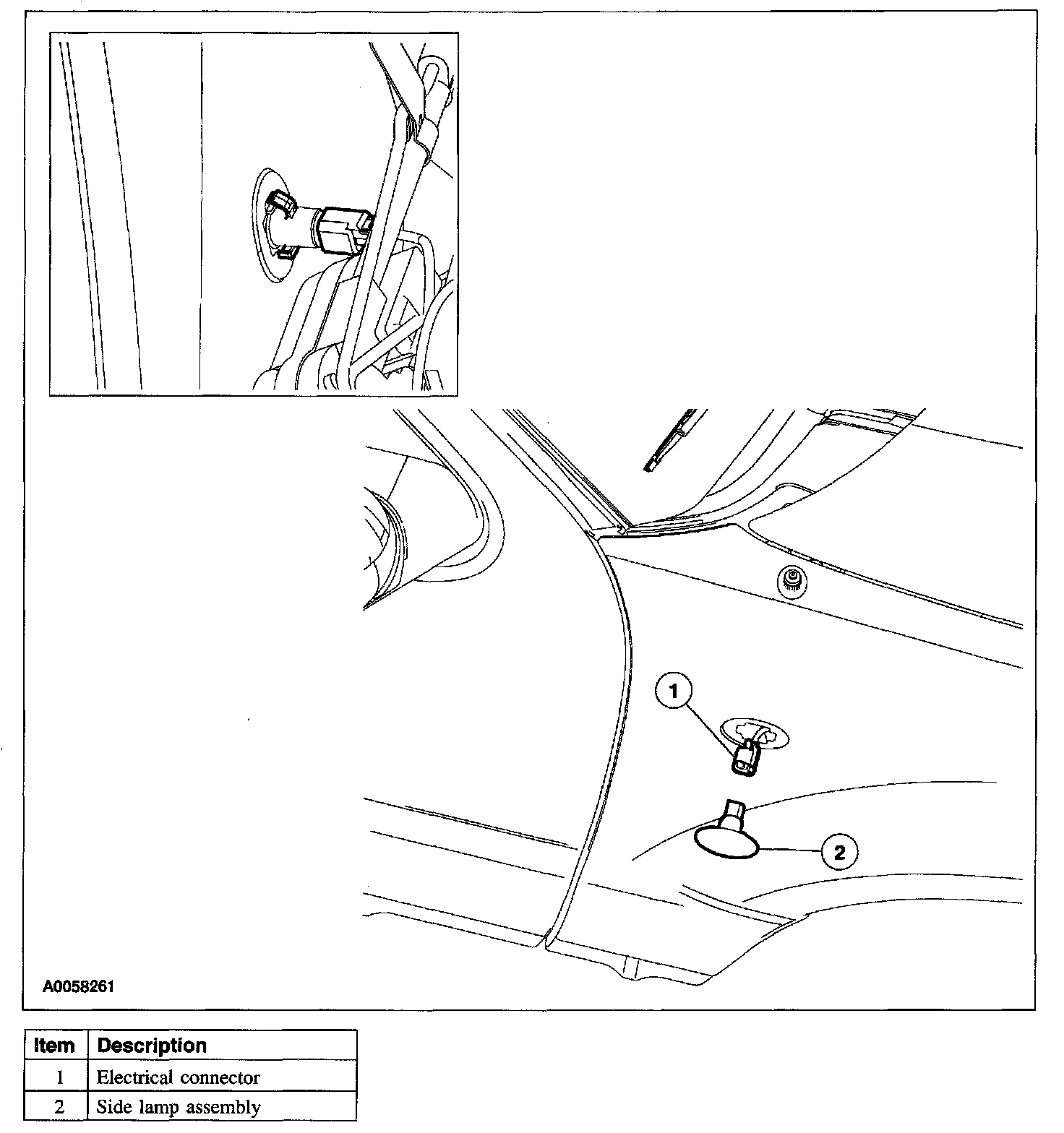

SIDE LAMP ASSEMBLY

NOTE: RH shown, LH similar.

REMOVAL
1. Remove the front fender splash shield.







2. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
